The KSD301 Temperature Control Thermal Switch is a commonly used temperature control switch, often referred to as a bimetallic thermostat or thermal protector. It is a small, disc-shaped device that is designed to open or close an electrical circuit based on temperature changes.
It is commonly used in appliances, such as electric kettles, coffee makers, irons, electric ovens, and other devices that require temperature control and protection against overheating.
Technical Parameters:
| Rated Current(Ir): | 10A, 16A; | Response Speed: | ≤ 1℃/min |
| Rated Voltage(Ur): | AC250V; | Operation Cycles: | > 30000 |
| Action Temperature Tolerance: | ±5℃; | Body Material: | Bakelite |
| Contact Resistance: | < 50mΩ | Insulation Resistance: | DC500V, ＞10M |
| Lnsulation Resistance: | > 100MΩ | Resistance Between Terminals: | < 50mΩ |
| Heat Resistance Temp: | 185℃ | Terminal Type: | customized |
| Usage: | overheat protection | Body material: | Bakelite / ceramic |
| Electric Intensity: | C2000V50/60Hz; no breakdon and no flashover | ||
Products Description
KSD301 is widely used for temperature control or protection. There are kinds of shapes of KSD301 thermal switch. Different shapes can be applied to variours scenarios, such as below:
1. Household electric appliances
2. PC
3. Microwave ovens
4. Irons
5. Refrigerators
6. Electronic oven
7. Heating unit
8. Coffeepot
9. Water heate
Temperature Characteristics:
According to different temperature actuation characteristics, there are 4 operating types as follows:
1. Normal type: OFF temperature is higher than ON temperature.
2. K type: ON temperature is higher than OFF temperature.
3. Manual reset type: The thermostat switches on at room temperature and i won't be able to reset after disconnection without manual help.
4. One-shot type: The thermostat switches on at room temperature and it won't be able to reset after switching off.
Products Picture
Terminal and cup type
KSD301 Terminal Types
KSD301 series snap action thermostat is a small-size bimetallic thermostat series with a metal cap, belonging to thermal relays' family. Using the principle that the dish-type bimetallic sheet can produce instantaneous jump under the action of temperature, the contact can act quickly through the inside structure, so as to disconnect or connect the circuit. Pressing the reset lever if need to reconnect the power. The main characteristics are the fixation of working temperature, no need adjustment, reliable and simple snap action, small arc, less flashover, long service life and less radio interference.
Working Principle
When the appliance is at the normal working state, the bimetallic sheet is in the free state and the contact is at closed / open state. When the temperature reaches a certain level which is the operating temperature, the contact will get opened / closed, and then the circuit will be cut / closed. When the electric appliance cools down and reset the temperature, the contact will automatically close / open and return to the normal working state. That is how thermostat controls the temperature and protect the circuit.
Product Advantage
Thermal switch has below characteristics
1. stable performance
2. high precision and reliability
3. small volume and light weight
4. long service life
5. small radio interference
7. easy installation
1. Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance.
2. Do not allow liquid to penetrate into the interior of the thermostat or crack the housing. But we also have wateproof type. Welcome for inquiry.
3. The thermal swtich should be stored in a place with RH less than 90% and ambient temperature less than 40 ℃, which is ventilated, clean and dry.
Installation Instruction
1. Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.
2. The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
3. When the thermostat is used to sense the temperature of solid items, its cover should be closed to the heating part of such items. at the same time, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover's surface.
4. If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. in addition, cautious measures should be taken to prevent liquids getting into/onto the thermostat's insulation parts.
5. The top of the cup must not be pressed into the sink, so as to avoid adversing effect on the thermostat's temperature sensitivity or other functions.
6. Liquids must be kept out of the thermostat's inside part! The base must avoid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
7. The terminals should be bent, or else, the reliability of electric connection will be influenced.
Appliances
The KSD301 Temperature Control Thermal Switch has various applications where temperature control and protection are required. Some common applications include:
1. Household Appliances: The KSD301 thermostat is widely used in household appliances like electric kettles, coffee makers, toasters, rice cookers, and irons. It helps regulate the temperature and prevents overheating, ensuring safe operation.
2. Heating Devices: It can be employed in electric heaters, fan heaters, space heaters, and radiant heaters to control the temperature and prevent excessive heating that may lead to damage or hazards.
3. HVAC Systems: The KSD301 thermostat can be used in heating, ventilation, and air conditioning (HVAC) systems to control temperature levels and maintain optimal thermal conditions.
4. Electrical Motors: In electric motors, the KSD301 thermostat helps protect against overheating by monitoring the motor's temperature and cutting off the power supply when the temperature exceeds a specific threshold.
5. Lighting Fixtures: Some lighting fixtures, especially those with halogen or incandescent bulbs, can generate significant heat. The KSD301 thermostat can be integrated to ensure that excessive heat does not damage the fixture or surrounding components.
6. Power Supplies and Transformers: The KSD301 thermostat is also utilized in power supplies and transformers to regulate and control temperature, preventing thermal damage and ensuring safe operation.
7. Automotive Applications: It can be found in automotive systems like cooling fans, engine compartments, and seat heaters, where temperature control and protection are essential.
8. Industrial Equipment: The KSD301 thermostat is used in various industrial applications, including control panels, machinery, electric motors, and manufacturing processes, to monitor and regulate temperatures for operational safety and equipment protection.
Electric Heater
Radiator Fan
Iron
Electric Home Appliance
Our Factory
Dongguan Senreach Electronics Co., Ltd, founded in 2011, is a professional circuit protection components manufacturer and programme supplier in China. We have 20 years' experience in manufacturing fuse, fuse holder, circuit breaker, thermal protector, ntc sensor and etc.
With variety of advanced manufacturing and testing equipments, we adpot perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.
We are specialized in developing, manufacturing and selling circuit protection components for over-current, over-temperature and over-voltage applications with kinds of performance, types and specifications. Our products are widely used in consumer electronics, automobiles, vessels, communication device, power supply, new energy, photovoltaic and other fields.
Our advantage
Quality Assurance
Every piece of product has been full inspected by detecting instrument to ensure good function.
Price Advantage
We build our molds and have our own factory which enable us to offer the first-hand price to our customers. And we hav e been devoting to lower the production cost and offer the best price all these years.
Factory Wholesale
For some hot-sale products, we have stock in house and can arrange delivery in just 1 week. And for other items, production lead time is 2-4 weeks.
full service
We have a strong and complete team including R&D, sales, QC, PMC, warehouse and CS to make sure we can better serve our customers.
Workshop
Workshop
Workshop
Workshop
Exhiibition

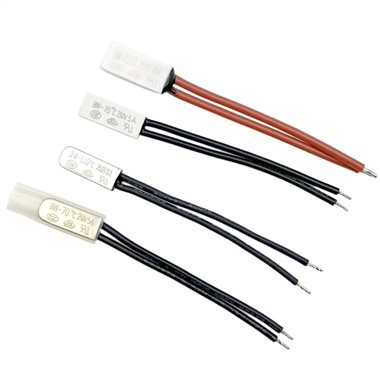

Hot Tags: ksd301 temperature control thermal switch, China ksd301 temperature control thermal switch manufacturers, suppliers, factory, KSD307 Temperature Control Switch Thermostat, 7 AM Thermal Protector, KSD302 Thermostat Switch, BH Series Over Heat Thermal Cut Off Fuse, BRI Series High Current Thermal Switch, BW 9700 Temperature Sensor Thermal Cut Off Switch
