BH Series Over Heat Thermal Cut Off Fuse

Products Description

BH series thermal protector is a bimetallic sheet with a certain geometric shape without auxiliary mechanism. They can protect over current, over temperature. They are firmly sealed and have small internal resistance and no noise. BH series are automatic reset. When an electric current passes through a bimetal that is sensitive to temperature and current, the state of the bimetal can be changed by over-temperature or over-current, thus cutting off the circuit or switching on the circuit. BH Series protectors are safer than normal protectors, with no temperature effect lag in the case of sudden high currents.

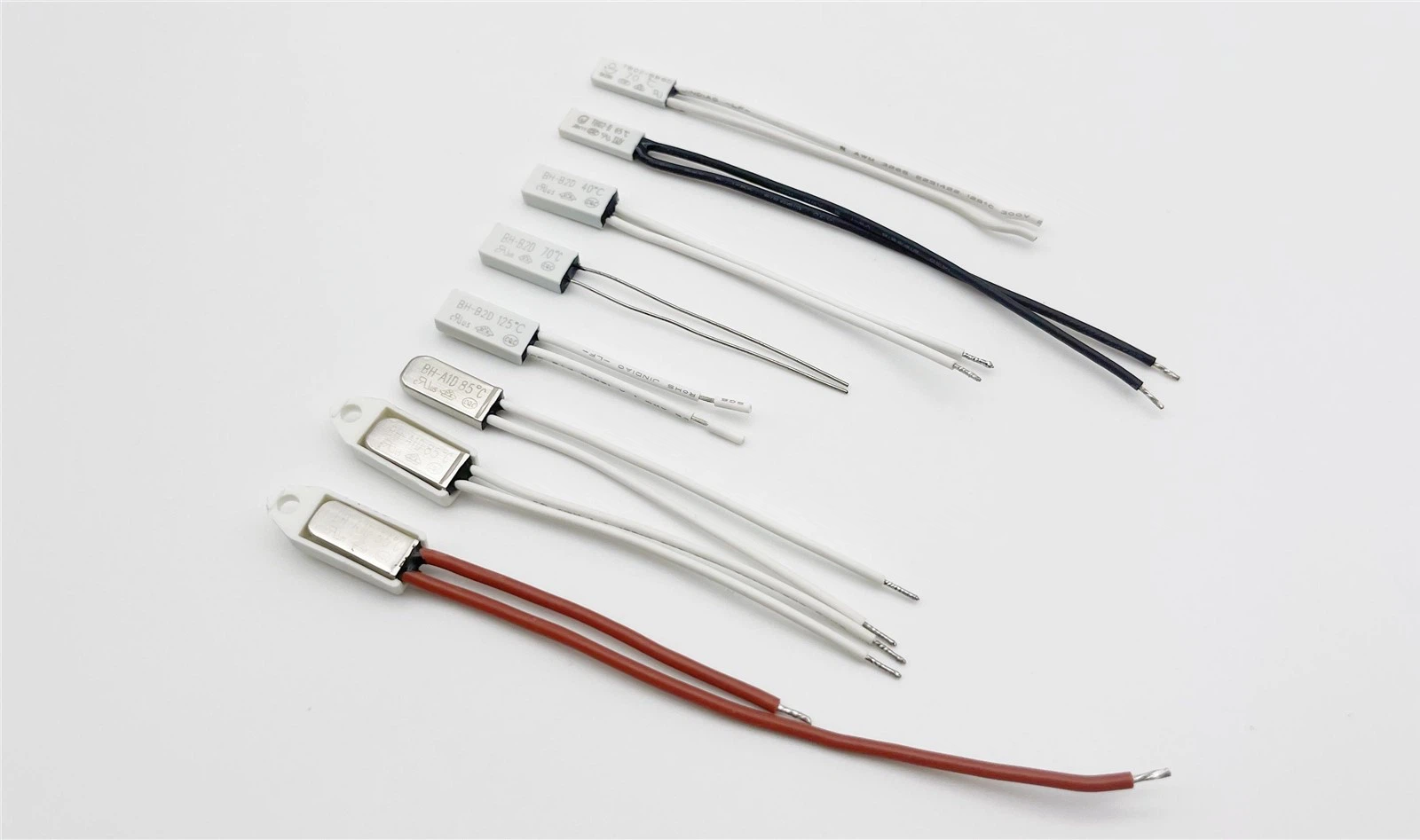

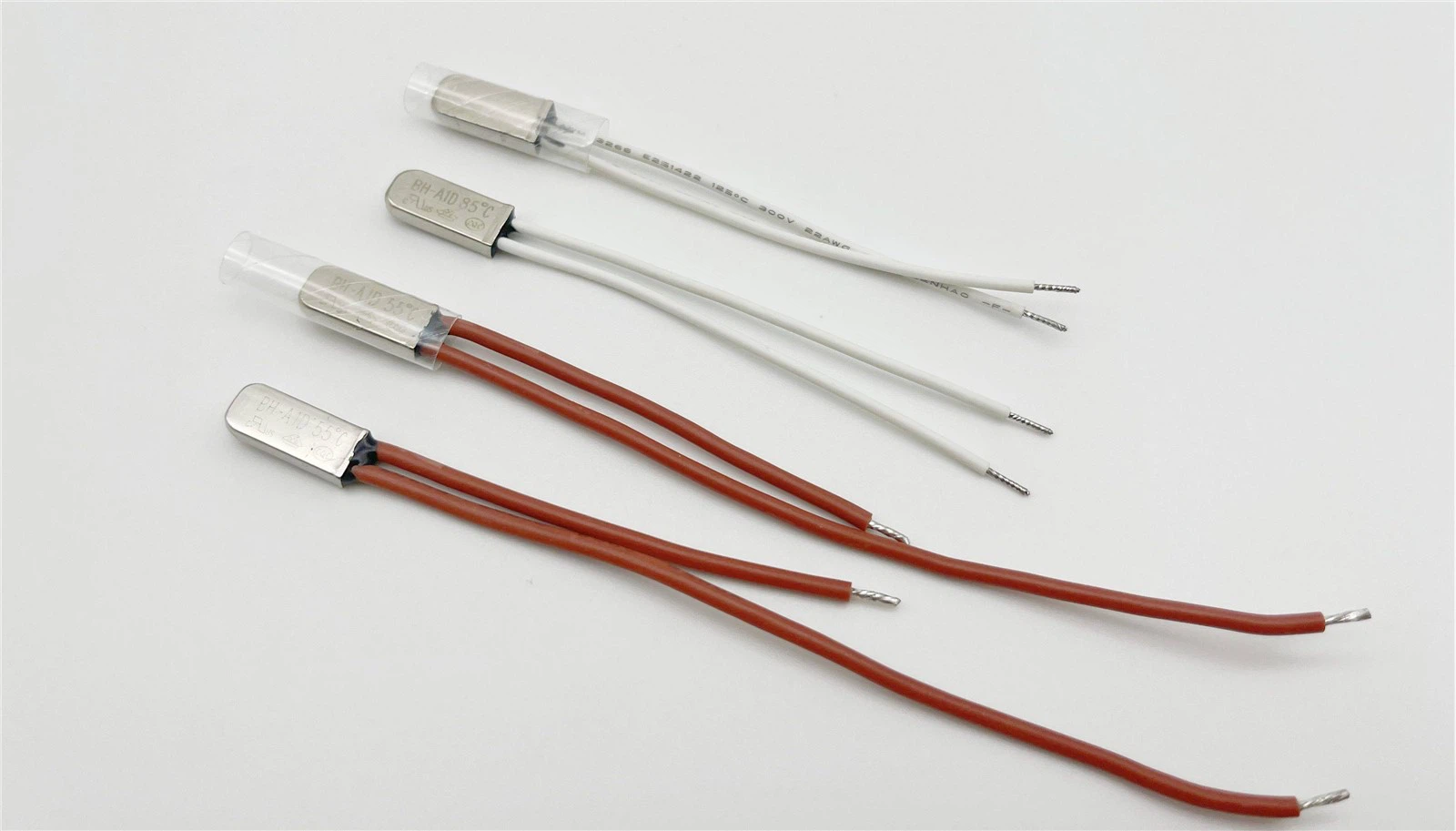

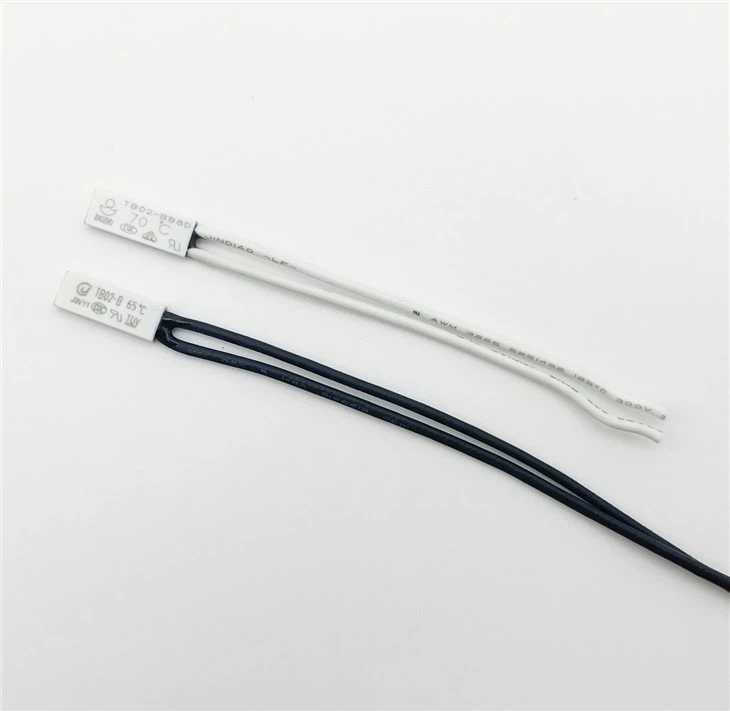

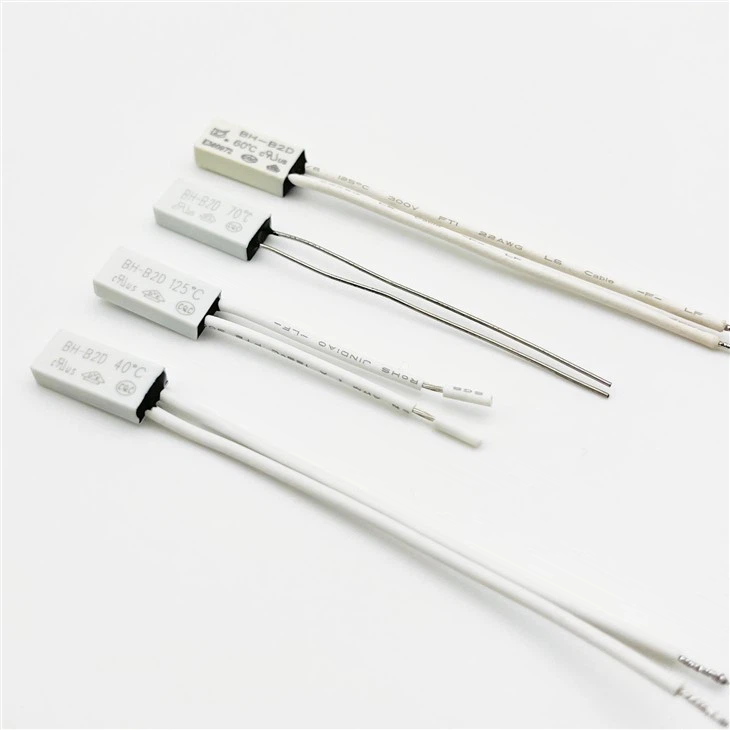

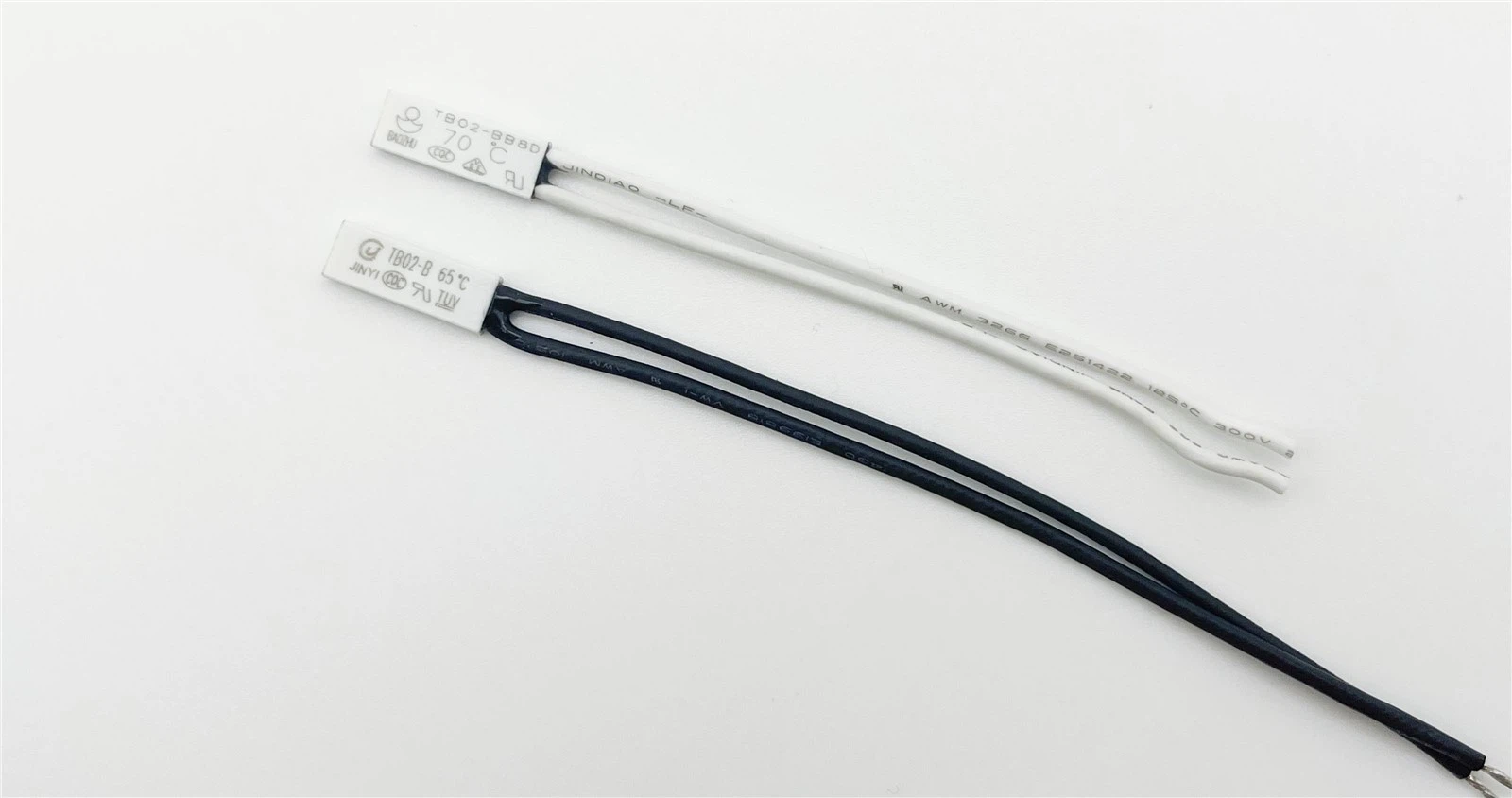

There are 3 major popular models of BH serires. They are BH-A1D, BH-B2D and BH-TB02. Each one has different appreance and performance.

BH Series Characteristic

BH product only relies on the bimetallic sheet's self-sensing and current thermal effect to change the state of bimetallic components rapidly. It directly drives the contact to automatically cut off and switch on the circuit, plays the role of over-heat and overload protection, and solves the current surge. The problem of temperature lag has the advantages of small internal resistance, small volume, firm seal, safer and more sensitive than the usual protector.

Application

BH series products are usually used for AC 220v /50Hz one phase motors to protect motor from over temperature caused by unusual state such as overload or blocked up. They are also used for protecting against over temperature & temperature control in heater, fluorescent ballast, IC etc.

Products parameters

Model	Case	Length(mm)	Width(mm)	Height(mm)	Vol.&Current
BH-A1D	Metal	15	6.6	3.2	DC-12V max 12A; DC-24V max 10A; AC-125V max 8A;
BH-B2D	Plastic	15	7.1	3.8
BH-TB02	Plastic	15	5.2	2.4	DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A



Contact Capacity	AC250V/6A; AC125V/8A; DC24V/10A; DC12V/10A
Open temperature	(30~150)±5°C; 5°C a step
Reset temperature	2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement.
Life cycles	10,000 times



Rated open temperature table

Type	Open Temp.	Rest Temp.		Type	Open Temp.	Rest Temp.
45℃	45±5℃	35±8℃		100℃	100±5℃	65±15℃
50℃	50±5℃	35±8℃		105℃	105±5℃	70±15℃
55℃	55±5℃	35±10℃		110℃	110±5℃	75±15℃
60℃	60±5℃	40±10℃		115℃	115±5℃	75±15℃
65℃	65±5℃	45±12℃		120℃	120±5℃	80±15℃
70℃	70±5℃	45±15℃		125℃	125±5℃	85±15℃
75℃	75±5℃	50±15℃		130℃	130±5℃	85±15℃
80℃	80±5℃	55±15℃		135℃	135±5℃	90±15℃
85℃	85±5℃	55±15℃		140℃	140±5℃	95±15℃
90℃	90±5℃	60±15℃		145℃	145±5℃	95±15℃
95℃	95±5℃	65士15℃		150℃	150±5℃	100±15℃

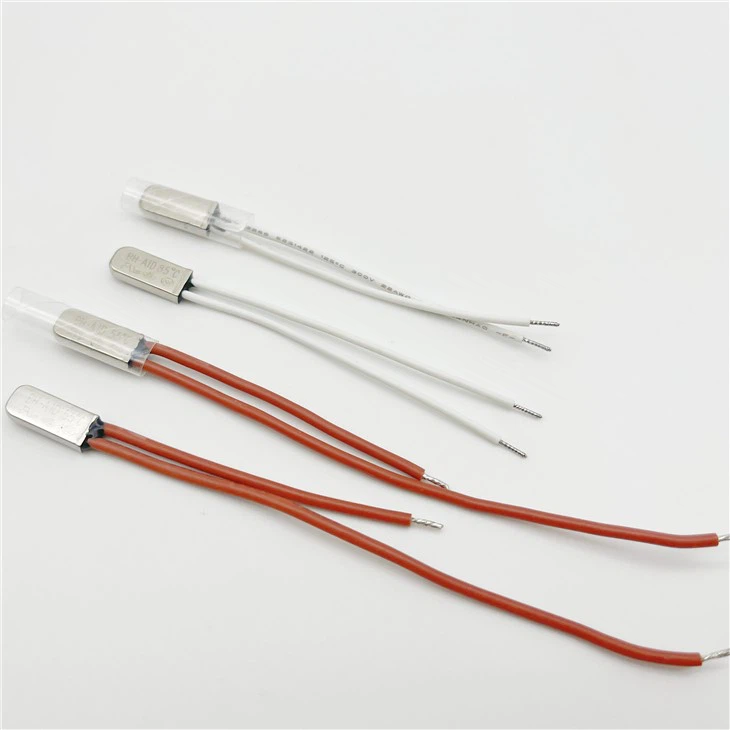

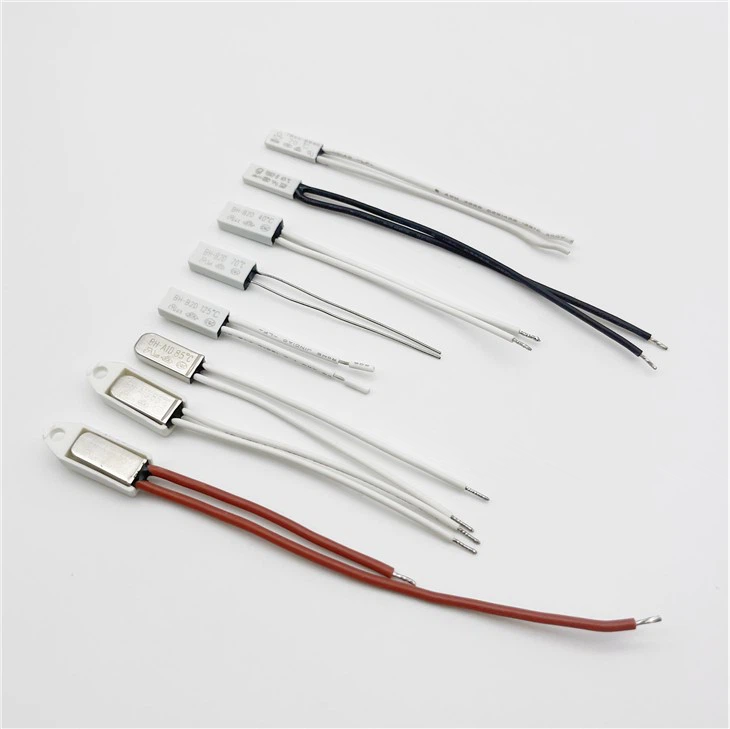

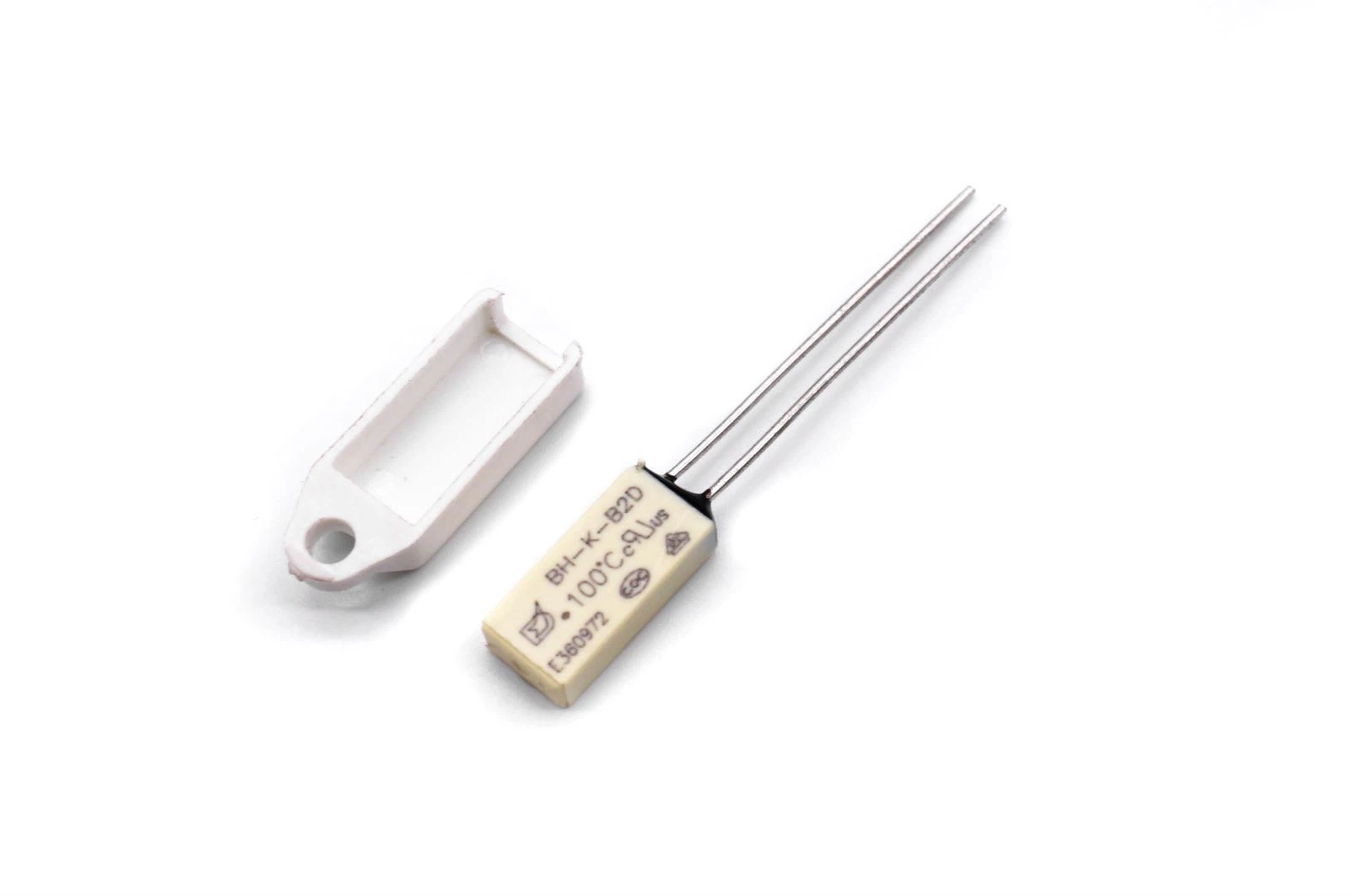

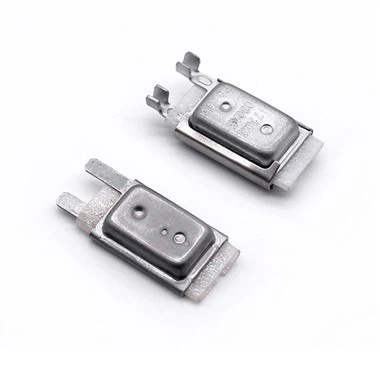

Product Picture

Products Applications



Home appliances

E.g. Irons, coffee makers, bread makers, toasters, refrigerators, washing machines.

Comfort conditioning appliances

E.g. air conditioners, fans, humidiers, heaters.

Personal care appliances

E.g. hair dryers, hair straighteners, hair curlers.

Our factory

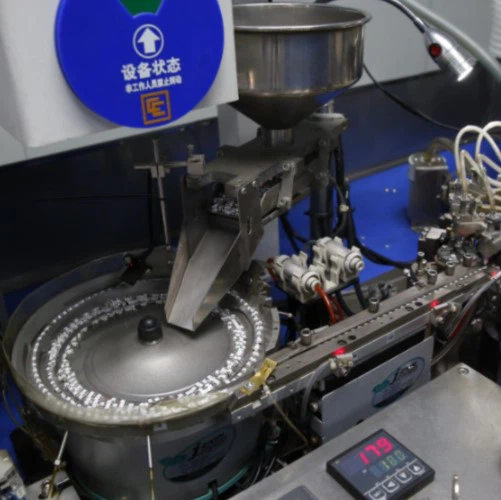

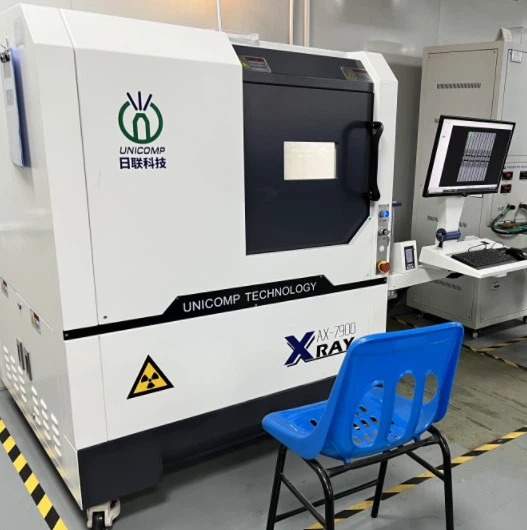

workshop

workshop

workshop

workshop



Our advantage

Price Advantage

We  have our own factory which enable us to offer the first-hand price to our customers.

Quality Assurance

Every piece of fuse and fuse holder are full inspected by detecting equipment to ensure good function.

Factory Wholesale

For some products, we have stock in house and are able to arrange delivery in just 1 week. And for other items, production lead time is normally 2-4 weeks.

full service

We have a strong and complete team including R&D, sales, QC, PMC, warehouse and CS to make sure we can better serve our customers.



Dongguan Senreach Electronics Co., Ltd, founded in 2011, is a professional circuit protection components manufacturer and programme supplier in China. We have 20 years' experience in manufacturing fuse, fuse holder, circuit breaker, thermal protector, ntc sensor and etc.

With variety of advanced manufacturing and testing equipments, we adpot perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.

We are specialized in developing, manufacturing and selling circuit protection components for over-current, over-temperature and over-voltage applications with kinds of performance, types and specifications. Our products are widely used in consumer electronics, automobiles, vessels, communication device, power supply, new energy, photovoltaic and other fields.
