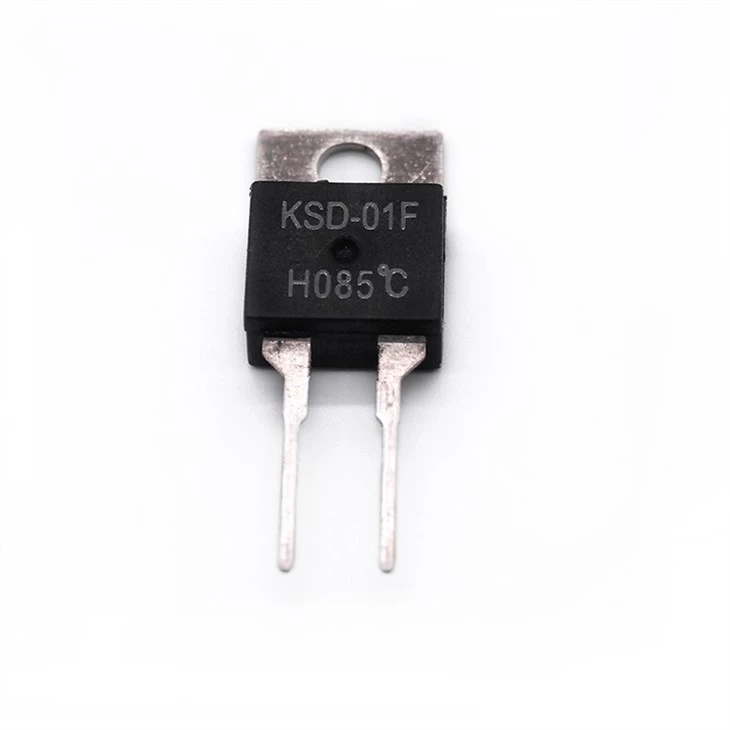

KSD-01F temperature control switch is suitable for circuit board and other temperature control or thermal overload protection. It's a temperature-fixed bi-metal snap-action controller. It has the characteristics of stable performance, high precision, small size, light weight, high reliability and long life.
The KSD-01F temperature control switch is available in a TO220 packages. When the outside temperature is too high, the snap type single pole/single throw contact has a 100% on-off structure. When it is passed to the calibrated bimetal, it will move quickly, thus cutting or opening the circuit (normally closed or normally open). When the temperature drops to the reset temperature, the bimetal quickly reset, repeated work, to ensure the safety of product temperature protection.
-
safe and easy to install: High pressure resistant, safe and reliable.
-
small size and light: Small size, easy to carry and store, convenient to use and with good performance.
-
strong and durable: High temperature resistant pcb circuit, safe and reliable. Thermostat is made of aluminum alloy, durable and lightweight.
-
Wide compatibility: the temperature sensor is compatible with a wide range of thermostats, such as cpu, fcc, rohs, lcd, tv, etc.
-
Excellent for windproof and waterproof wear all seasons.
Products parameters
| Product Name | KSD-01F Temperature Control Thermal Switch |
| Rated ampere & voltage | 2A 250V |
| Material | Plastic,copper etc |
| Function | For temperature potection |
| Insulation resistance | ambient temperature and moisture ≥ 50MΩ |
| Contact resistance | ≤ 100mΩ |
| Dielectric strength | ≥ 500VAC single width 0.35mm |
| Weight: | ＜2g |
| Package | 100pcs/ bag |
| Application | electrical equipment, electronic products, power supply, home appliance, circuit board and etc. |
Dielectric parameter
|
Cycles
|
Voltage
|
Amps(resistive)
|
|
>10,000
|
48VDC
|
1 |
| >10,000 |
120VAC
|
1 |
|
100,000
|
5VDC
|
0.020 |
|
100,000
|
5VDC
|
0.001 |
Temperature Characteristic Comparison Table
| Action temperature | Reset temperature | Action temperature | Reset temperature | Action temperature | Reset temperature |
| 0±5℃ | ≥-15℃ | 55±5℃ | 38±6℃ | 110±5℃ | 85±15℃ |
| 5±5℃ | ≥-10℃ | 60±5℃ | 42±7℃ | 115±5℃ | 85±15℃ |
| 10±5℃ | ≥-5℃ | 65±5℃ | 48±7℃ | 120±5℃ | 90±15℃ |
| 15±5℃ | ≥0℃ | 70±5℃ | 52±7℃ | 125±5℃ | 95±15℃ |
| 20±5℃ | ≥5℃ | 75±5℃ | 55±7℃ | 130±5℃ | 100±15℃ |
| 25±5℃ | ≥10℃ | 80±5℃ | 60±10℃ | 135±5℃ | 105±15℃ |
| 30±5℃ | 15±5℃ | 85±5℃ | 65±10℃ | 140±5℃ | 110±15℃ |
| 35±5℃ | 15±5℃ | 90±5℃ | 70±10℃ | 145 ±5℃ | 115±20℃ |
| 40±5℃ | 25±5℃ | 95±5℃ | 75±10℃ | 150±5℃ | 120±20℃ |
| 45±5℃ | 30±5℃ | 100±5℃ | 78±15℃ | ||
| 50±5℃ | 35±5℃ | 105±5℃ | 80±15℃ |
Products dimension
