Products Description

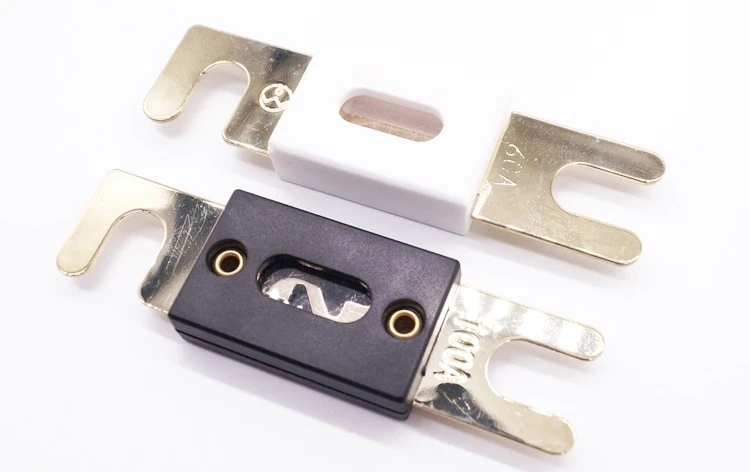

ANL fuses are used for overload and short circuit protection of various high-power electrical lines, such as motorcycle, boat, trailer, electric vehicle, forklift. The fuse can be directly connected with the bus bar without a fuse base, or the fuse can be installed on the fixed fuse base, our company's ANL-H2-B/ANL-H5/ANL-H6/ANL-H8/RQD-1 and other bases are recommended. It's easy to remove and replace the fuse.
ANL car fuses are suitable for rated voltage DC to 80V AC to 250V (50Hz) and rated current up to 500A. It's made of ceramic and copper alloys. When the protected circuit occurs abnormal or short circuit or serious overload, the fuse will be blown in time to achieve the purpose of protecting the protected electrical circuit. The fuse cannot be recovered, and a new fuse is needed to continue working. The interface size and shape can be adjusted to meet special needs of different customers, such as round holes and fork holes. Round holes can also be 6.5mm and 8.5mm, fork holes can also be 11MM and 8.5MM, and can also be made directly without holes to facilitate welding and so on.
When the protected circuit occurs abnormal or short circuit or serious overload, the fuse will be blown in time to achieve the purpose of protecting the protected electrical circuit. The fuse cannot be recovered, and a new fuse is needed to continue working.
Parts Materials
- Metal part: copper alloy with Ni plated.
- Plastic part: ceramic or bakelite.
- Rivet: brass alloy
- Transparent sheet: IS-3PC
Products parameters
| Product name: | ANL Bolt on Fuse |
| Rated voltage: | 32V 48V 80V 125V DC |
| Rated current: | 40A-500A |
| Color: | black; white |
| Packing: | PE bag |
Products materials
Products Dimension
Product Picture
Appliance
Installation
Install without holder
Install with holder
