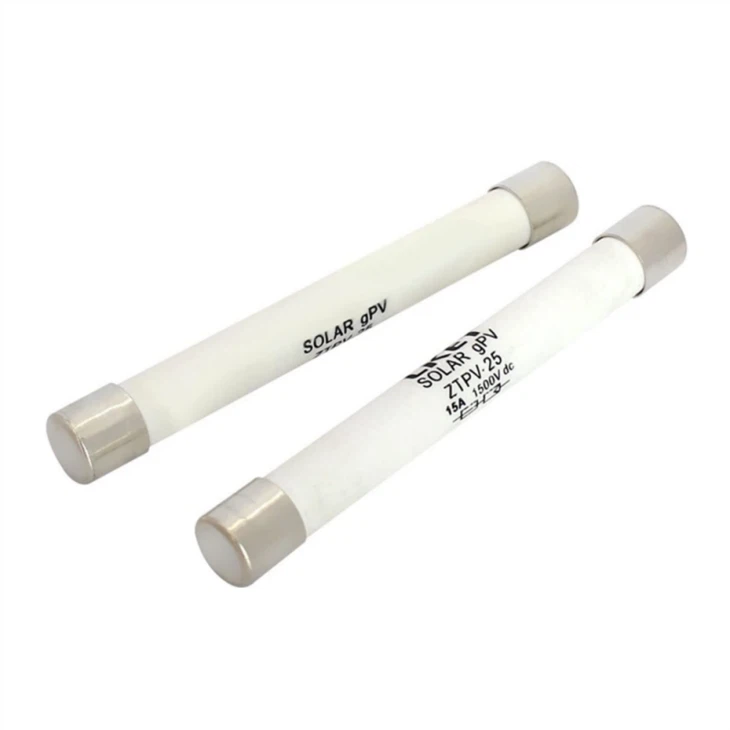

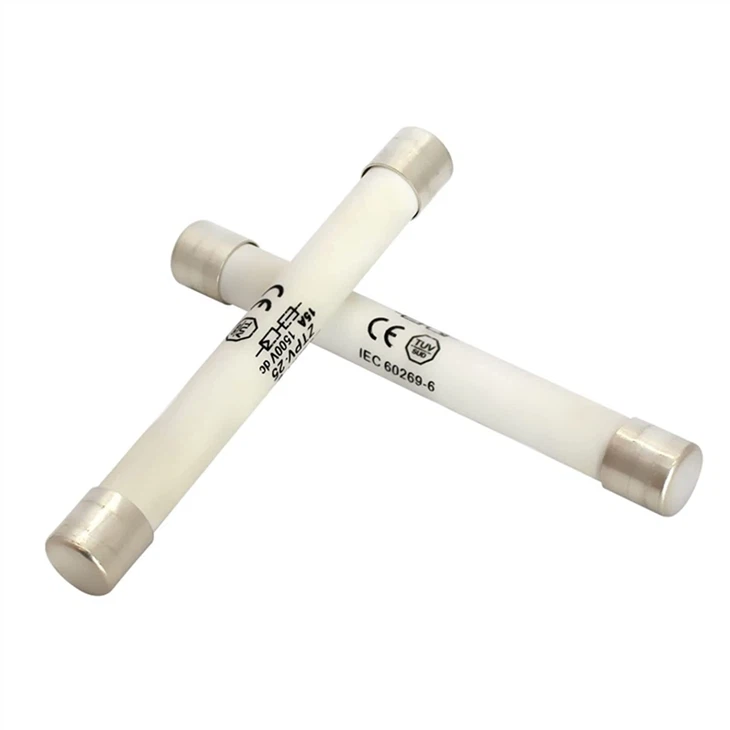

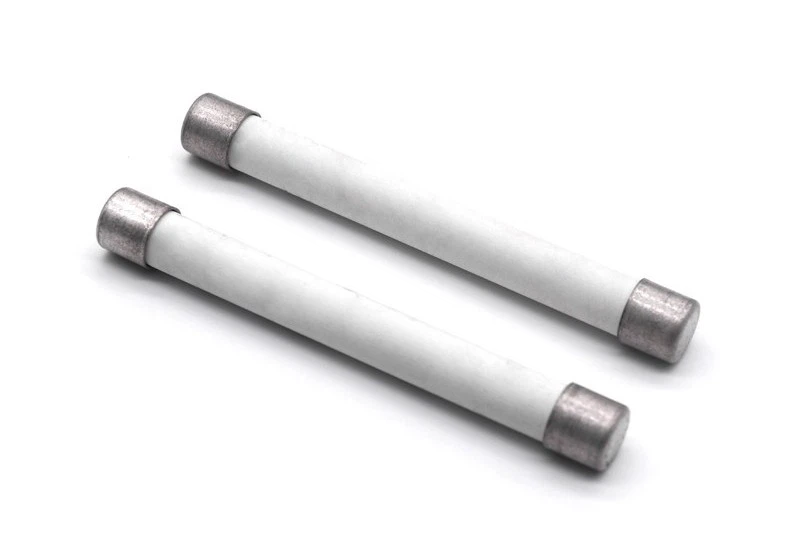

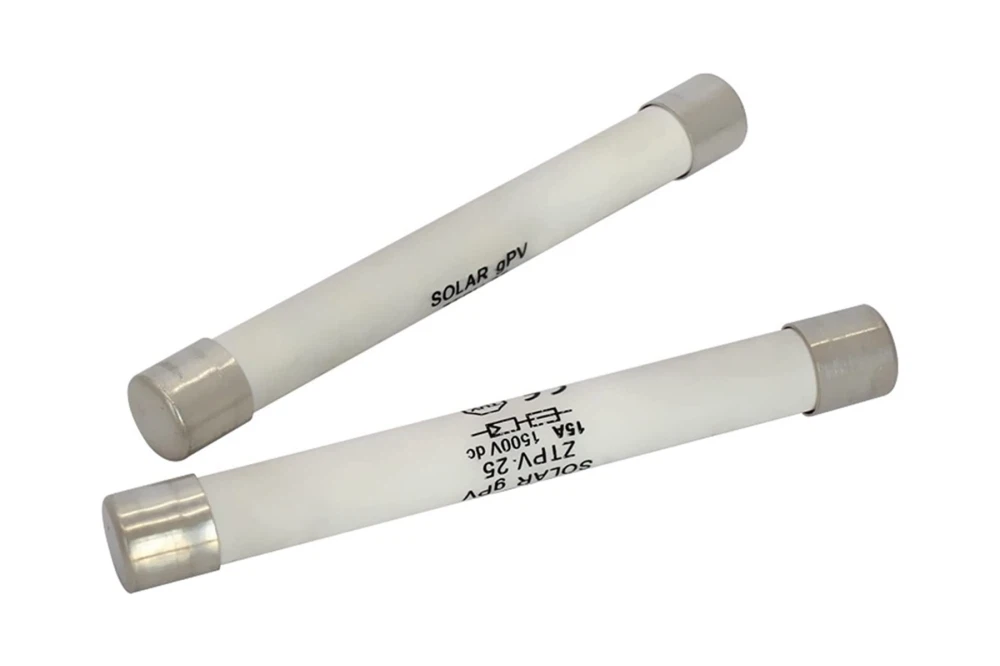

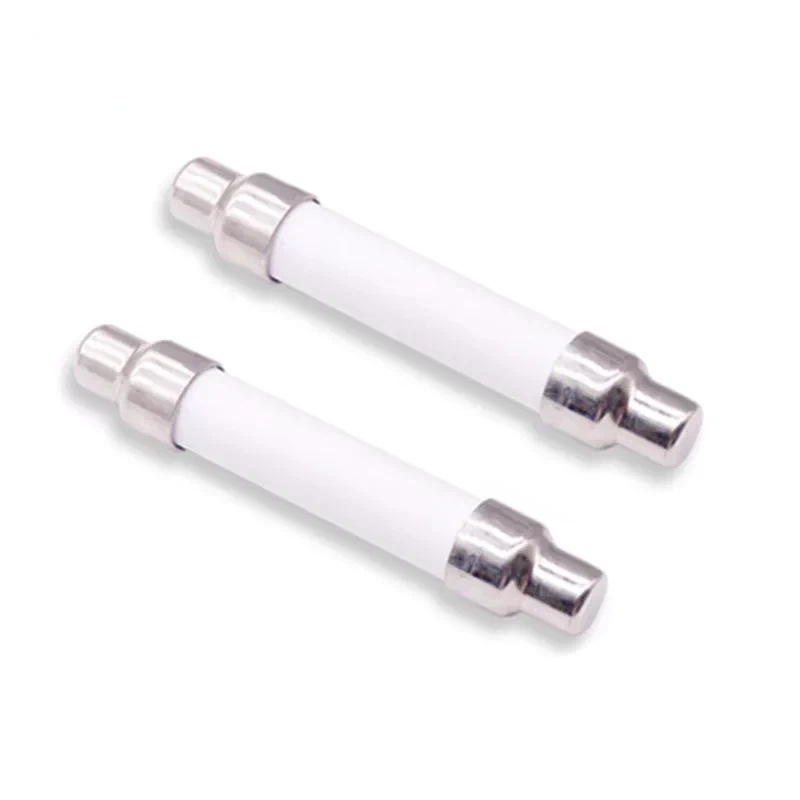

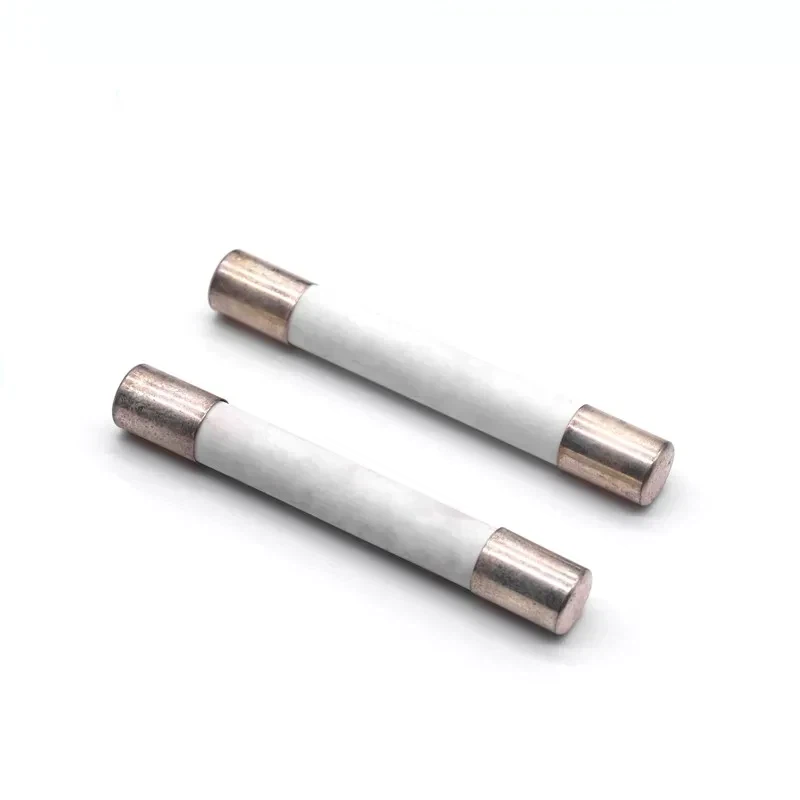

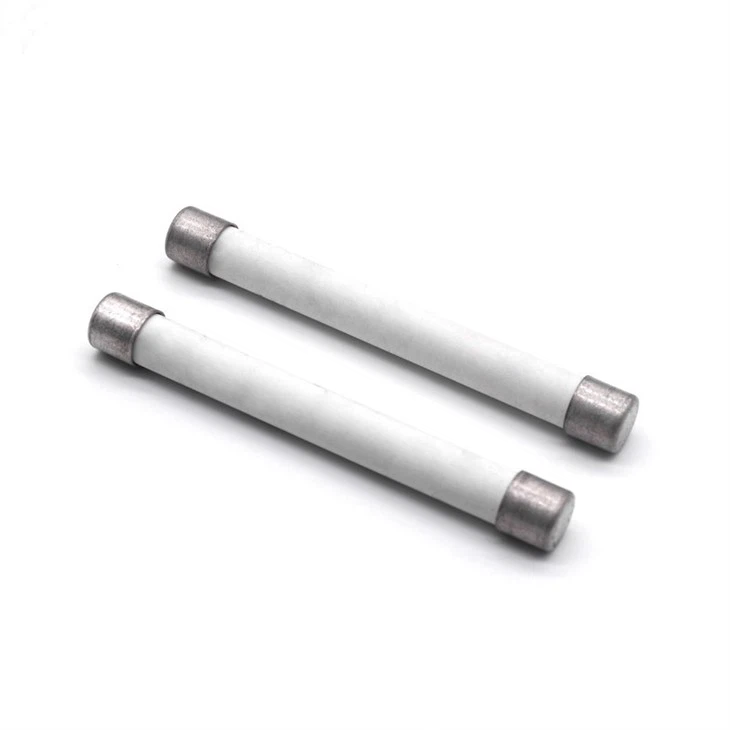

A 1500V 10 X 85mm PV Solar Fuse is a type of electrical safety device designed specifically for use in photovoltaic (PV) systems. PV fuses are used to protect the system against overcurrent and short-circuits, which can cause damage to equipment or even create a safety hazard.
The 10 x 85mm PV fuse has a cylindrical shape and is 10mm in diameter with a length of 85mm. It is typically rated for a maximum voltage of 1000 volts DC and a maximum current of 30 amps.
The fuse has two end caps made of metal and is constructed with a ceramic body. The metal end caps are designed to provide a secure connection to the system's wiring, and the ceramic body provides insulation and protection against high temperatures.
The fuse works by melting its internal element when the current exceeds its rated value, which breaks the circuit and protects the system. When a fault occurs, the fuse must be replaced to restore the system's protection.
Advantages of 10 x 85mm Photovoltaic Fuse
1. Protection: The primary function of a PV fuse is to protect the PV system against overcurrent and short-circuit faults. 10 X 85mm PV Fuse is designed to handle high DC voltages and currents that are typically found in PV systems.
2 Durability: PV fuses are exposed to harsh environmental conditions such as high temperatures and humidity. PV Fuse is designed to withstand such conditions.
3. Cost-effective: PV fuses are relatively inexpensive, and a 10 X 85mm PV Fuse is no exception. Using a PV fuse can help prevent costly damage to the PV system, making it a cost-effective solution in the long run.
4. High Interrupting Capacity: The interrupting capacity of a fuse is the maximum fault current that it can safely interrupt without damaging the circuit. A 10 X 85mm PV Fuse has a high interrupting capacity, which helps prevent damage to the system in case of a fault.
Product Parameter
| Product name: | 1500V 10 X 85mm PV Solar Fuse | Size: | 10 mm x 85 mm |
|
Rated Voltage: |
1500V DC | Rated Current: | 1A to 30A |
|
Caps:
|
Nickel Plated Copper Cap | Body: | Engineering Ceramic Tube |
| Type: | Photovoltaic Fuses | Time Constant: | <1ms |
| Breaking Capacity: | 30kA | Application: | Photovoltaic Applications |
Specifications
| Catalog No. | Rated Current | Rated Voltage | Breaking Capacity | Safety Approvals | ||
| CQC | UL | TUV | ||||
| 10LPVU15.1 | 1A |
1500V(DC) |
30kA,Time |
O | O | O |
| 10LPVU15.2 | 2A | O | O | O | ||
| 10LPVU15.3 | 3A | O | O | O | ||
| 10LPVU15.4 | 4A | O | O | O | ||
| 10LPVU15.5 | 5A | O | O | O | ||
| 10LPVU15.6 | 6A | O | O | O | ||
| 10LPVU15.8 | 8A | O | O | O | ||
| 10LPVU15.10 | 10A | O | O | O | ||
| 10LPVU15.12 | 12A | O | O | O | ||
| 10LPVU15.15 | 15A | O | O | O | ||
| 10LPVU15.16 | 16A | O | O | O | ||
| 10LPVU15.20 | 20A | O | O | O | ||
| 10LPVU10.25 | 25A | O | O | O | ||
| 10LPVU10.30 | 30A | O | O | O | ||
| U15 DENOTES FOR 1500VDC U10 DENOTES FOR 1000VDC ●DENOTES FOR APPROVED oDENOTED FOR PENDING |
||||||

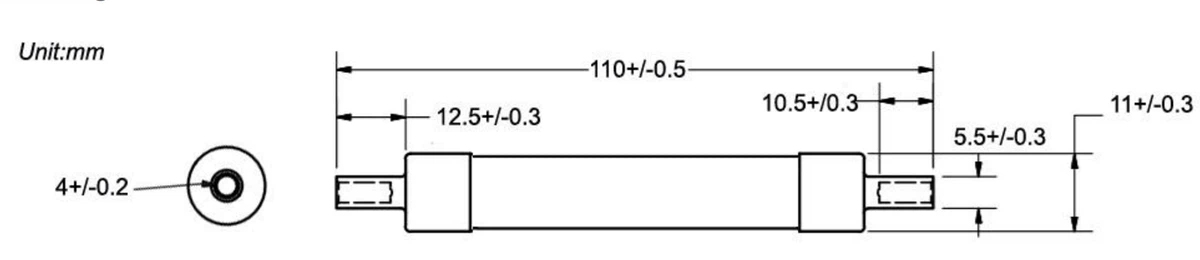

Products Dimension
Installation
To install a 10*85mm PV (Photovoltaic) fuse, follow these steps:
1. Turn off the power supply to the PV system before installing the fuse.
2. Locate the fuse holder on the PV system. It is usually located near the inverter or charge controller.
3. Open the fuse holder by removing the cover or unscrewing the cap.
4. Take the 10*85mm PV fuse and insert it into the holder.
5. Make sure the fuse is securely seated in the holder.
6. Close the fuse holder by replacing the cover or screwing the cap back on.
7. Turn the power supply back on and check to ensure that the PV system is functioning properly.
Products Application
PV fuses are designed to protect the electrical components of a PV system, including solar panels, batteries, and inverters, from damage caused by overcurrents or short circuits.
Some applications of a 10*85mm PV fuse include:
Solar panel protection: PV fuses can be used to protect solar panels from overcurrents caused by lightning strikes or other power surges. The 10*85mm size may be appropriate for small to medium-sized solar panels.
Battery protection: PV fuses can be used to protect batteries from overcharging or short circuits. The 10*85mm size may be appropriate for batteries used in small to medium-sized PV systems.
Inverter protection: PV fuses can be used to protect inverters from damage caused by overcurrents or short circuits. The 10*85mm size may be appropriate for small to medium-sized inverters.
Monitoring systems: PV systems often include monitoring systems that measure the performance of the system and alert the owner in case of a problem. PV fuses can be used in the monitoring system to protect the wiring and other components from overcurrents or short circuits.
Overall, the 10*85mm PV fuse can be a useful component in a variety of PV system applications, providing an important level of protection for critical components.
