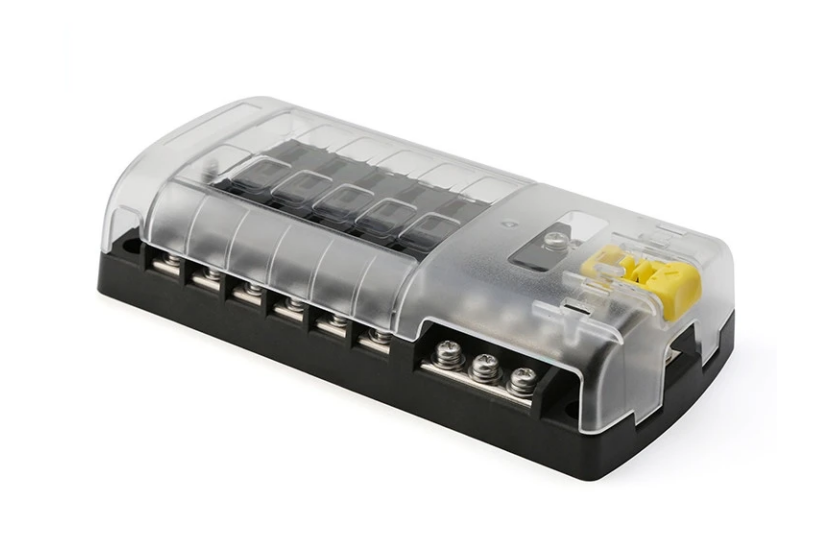

The 12-way marine blade fuse block is designed with fastener terminals, conforming to the ABYC recommended specification, and uses tinned copper components to improve electrical conductivity and reduce operating temperature. It accepts ATO and ATC fast acting blade fuses. An optional cover protects conductive surfaces from accidental short circuits, labels each circuit, and stores a fuse. And the product is also available with or without a cvoer.
The 12-way blade fuse block is suitable to use as a sub-panel in DC distribution systems. It solves the problem of using large and expensive circuit breaker panels as circuit protection for electronic devices and other branch circuits. In most circuit breaker panels, circuit breakers and inline fuses are used to protect electronic devices. Instead, by using this 12-way universal blade fuse block as a sub-panel, fuses that are more appropriate for electronic devices can be used without using inline fuses, while using only one location on the panel. This reduces the size of the panels required and reduces the cost of the overall system.
Features of 12-way Blade Fuse Box
1. Positive distribution bus with #10-32 stud
2. It can be used for 24-hour circuits
3. The buses and fuse clips are made of tin-plated copper
4. Multi-function sticker labels for identification
5. The box accepts ring or snap fork type terminals
Product Parameter
| Product name: | 12 Way Blade Fuse Block/TR-FB616 | Type: | Blade Fuse Holder/Fuse Block/Fuse Box |
|
Rated Voltage: |
Up To DC 32V | Output Rated Current: | 30A Max per circuit |
| Product Size: | 164.4*84.2*38.5mm | Input Rated Current: | 100A |
| Material: | PBT Base+PC Cover+Nickel Plated Copper Terminal | Ways: | 12 ways |
| Screw: | M4; M5 | Net Weight: | 326 g |
| Main Wire Terminal: | M5 Thread Stud | Single Wire Terminal: | M4 Thread Stud |
| Main Wire Gauge: | #4-6 AWG | Single Wire Gauge: | #12-16 WAG |
| Recommended Torque: | 24 in-lb (2.71 N·m) | Screw Terminal Torque: | 18 in-lb (2.03 Nm) |
| Contact Terminal: | Nickel Plated Copper | Certificate: | ROHS |
Product Detail

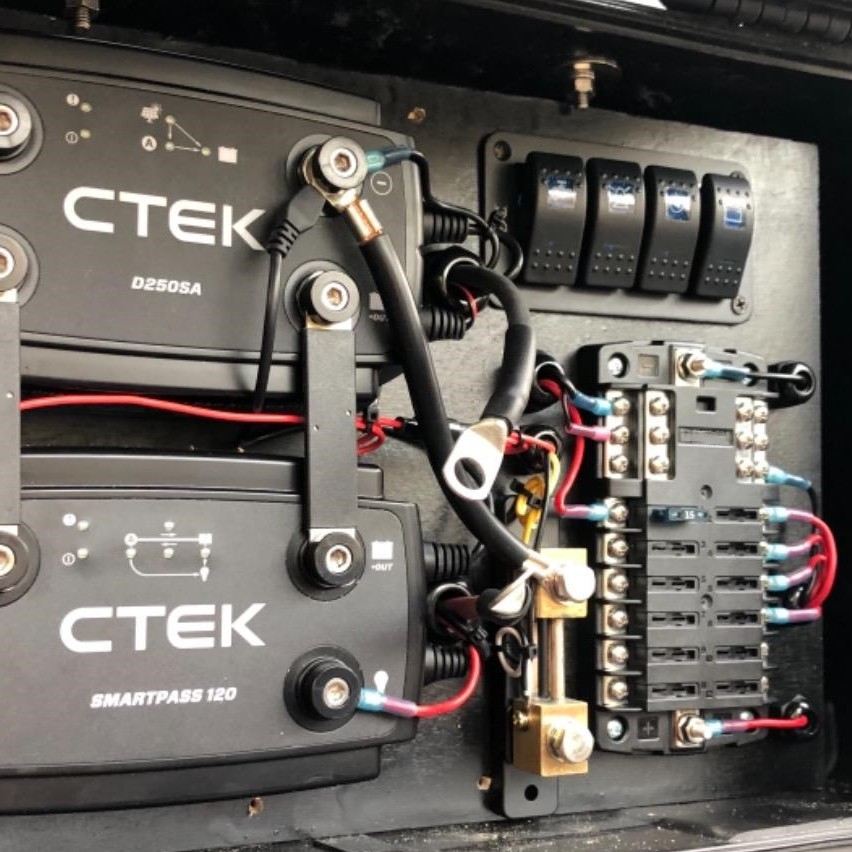

The multi-way blade fuse box can provide a space saving and cost effective solution to increase circuit protection when there are limited circuit breakers available on the distribution panel.
A single circuit breaker on the distribution panel provides circuit protection to the feeder of the blade fuse block. This is usually used when each electronic product has its own ON-OFF switch and does not require the switch provided by the circuit breaker.

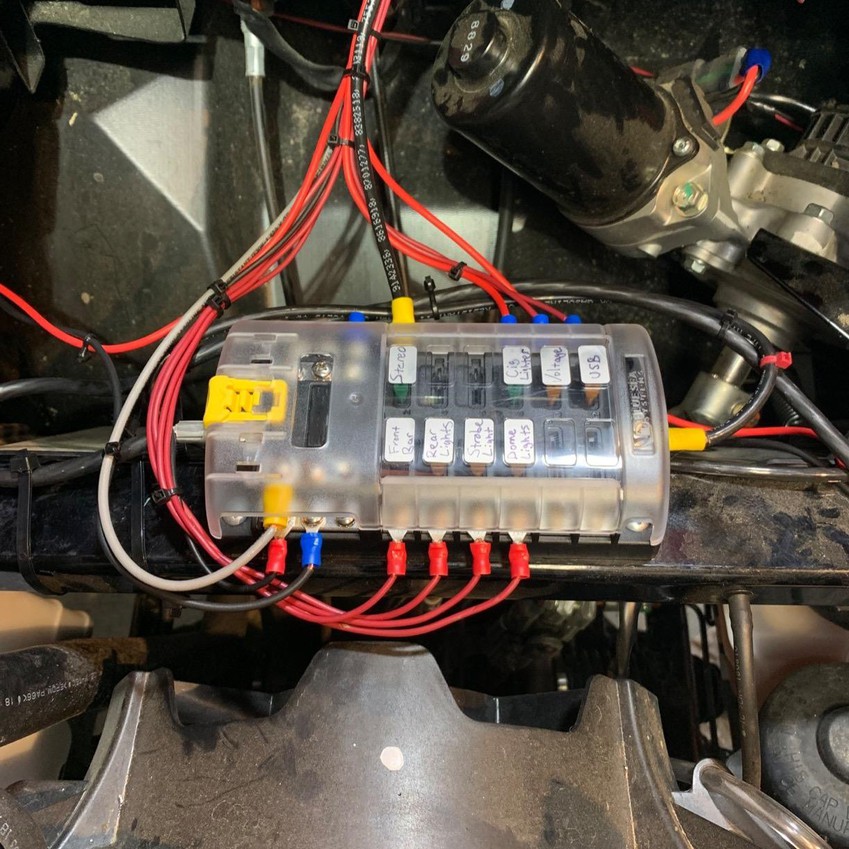

DIY Stickers
There are multi-function sticker labels with various accessories names inside the packaging for your DIY fuse panel.

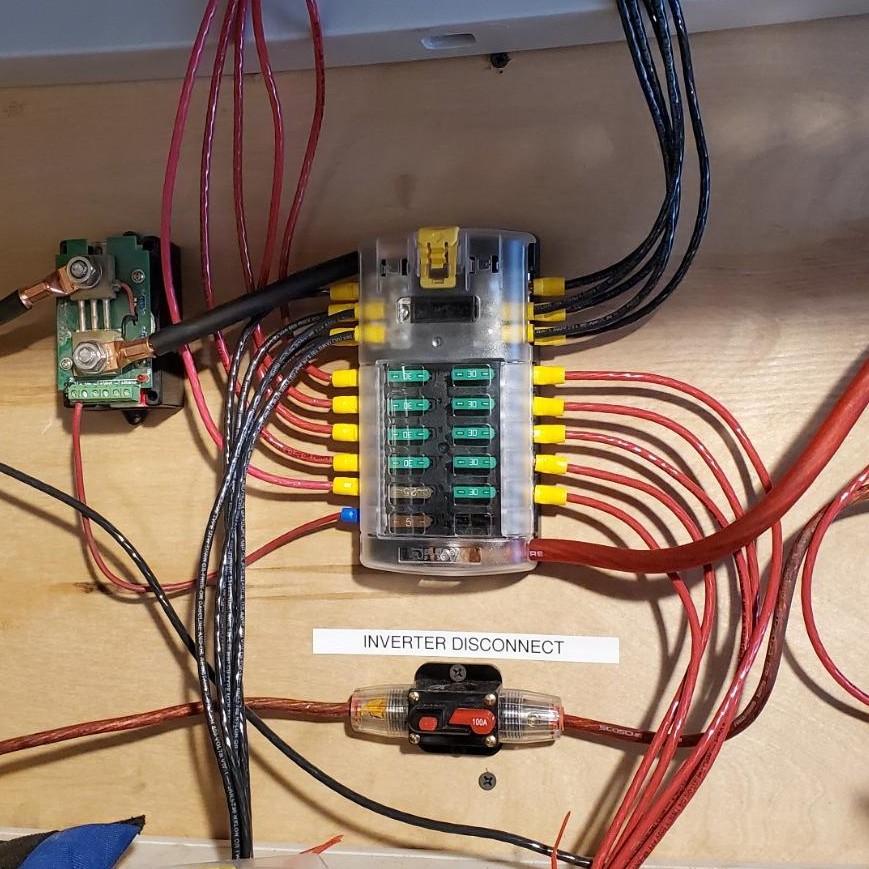

Make Wiring Clean
This marine fuse box provides you 12 dedicated fuses and 12 ground locations to keep all of your wires clean, organized, and accessible.

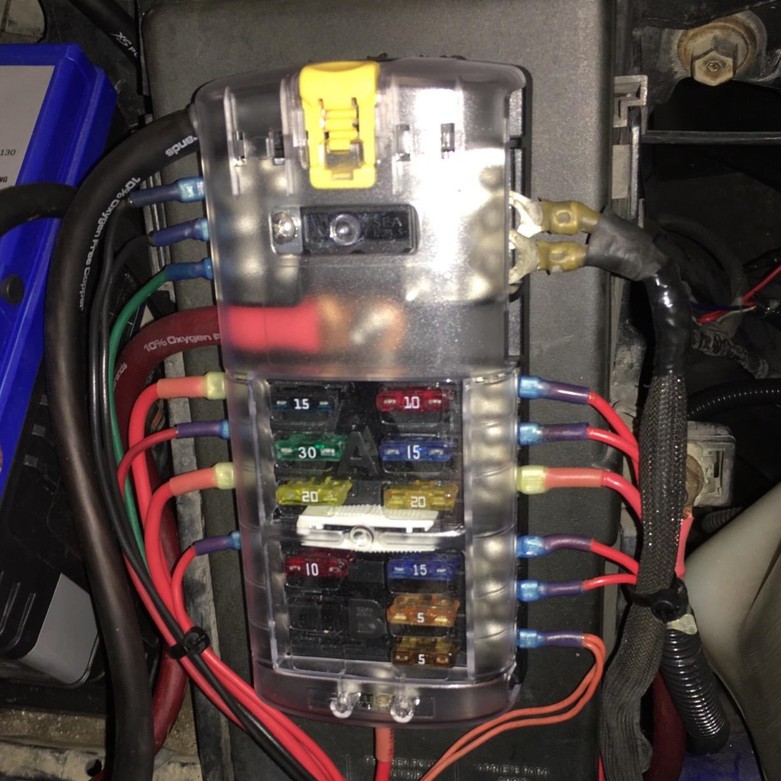

Transparent Cover
The transparent cover protects conductive surfaces from accidental short circuits, labels each circuit, and stores 2 spare fuses.
Appilcation
Application Note:
This device is used for branch protection. This device shall be preceded by appropriate main circuit protection not exceeding 125A, and the interrupt current level shall be consistent with the battery capacity.
This fuse holder can be directly connected to the line on the car/ship. For example: roof light, car headlights, width lamps, fog lights, warning lights, car refrigerators, vehicle chargers, car fan, car TV, etc.
