Products Desc.
The fuse block is an effective method of protection against damage to the circuit and possible fire in the case of overload or short circuit. This 6 way space-saving fuse block provides protection for new installations or when the circuit breaker on the panel runs out. Commonly used in electronic devices, this fuse block can be powered by a circuit breaker in the distribution panel and power up to six additional circuits. The compact size allows it to be mounted in tight spaces close to the loads they protect. The block accepts ATO/ATC fuses that provide protection from 1 amp to 40 amp.
The fuse block is made of eco-friendly PBT material. This fuse holder meets all the standards of fine fuse blocks and boxes, which has high mechanical strength, good insulation, heat & flame resistance. It hardly leads to break, deformation, combustion or short-circuit.
1. Quick Fix: When the current/voltage exceeds the rated range,the fuse will be automatically blown. It has leds beside each load to indicate if a circuit has shorted or has blown.So it's easy to identify.
2. Make Wiring Clean: Fuse Block/Ground Bus kit gives you six dedicated fuses and six ground locations to keep all your wires clean, organized, and easily accessible, instead of leaving a mess of wires and fuse holders on battery posts.
3. Universal Protection: Fuse box input rated voltage is 32V, input rated current is 100A. The maximum output current of each circuit is 30A. All bus and fuse parts are nickel plated copper which is of corrosion resistance, good electrical conductivity.
Product Parameter
| Product name: | 6 Way Marine Fuse Block with LED Indicator | Type: | Blade Fuse Holder/Fuse Block/Fuse Box |
|
Rated Voltage: |
32V | Output Rated Current: | 30A |

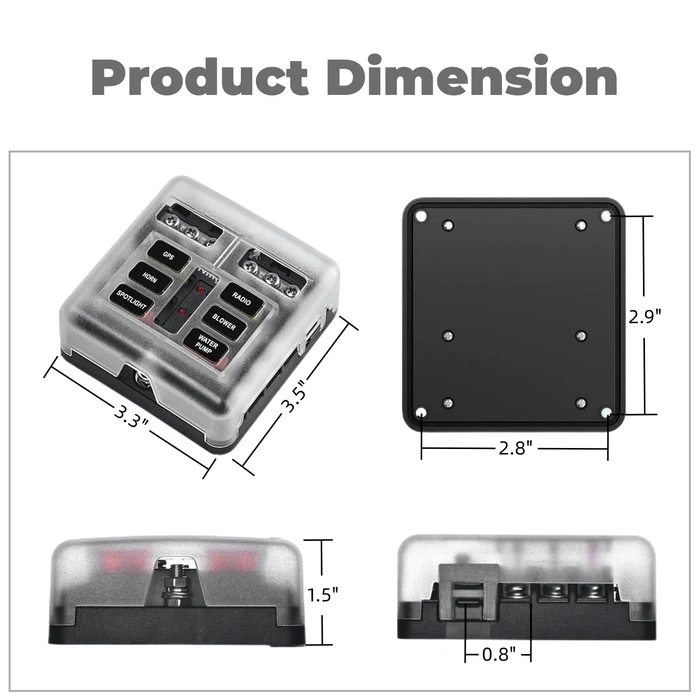

| Product Size: | 88*87.75*36.5mm | Indicator Color: | Red |
| Material: | PBT Base, PC Cover | Ways: | 6 ways |
| Screw: | M4; M5 | Net Weight: | 176g |
| Main Wire Terminal: | M5 Thread Stud | Single Wire Terminal: | M4 Thread Stud |
| Main Wire Gauge: | #4-6 AWG | Single Wire Gauge: | #12-16 WAG |
| Contact Terminal: | Nickel Plated Copper | Certificate: | ROHS |
Product Details

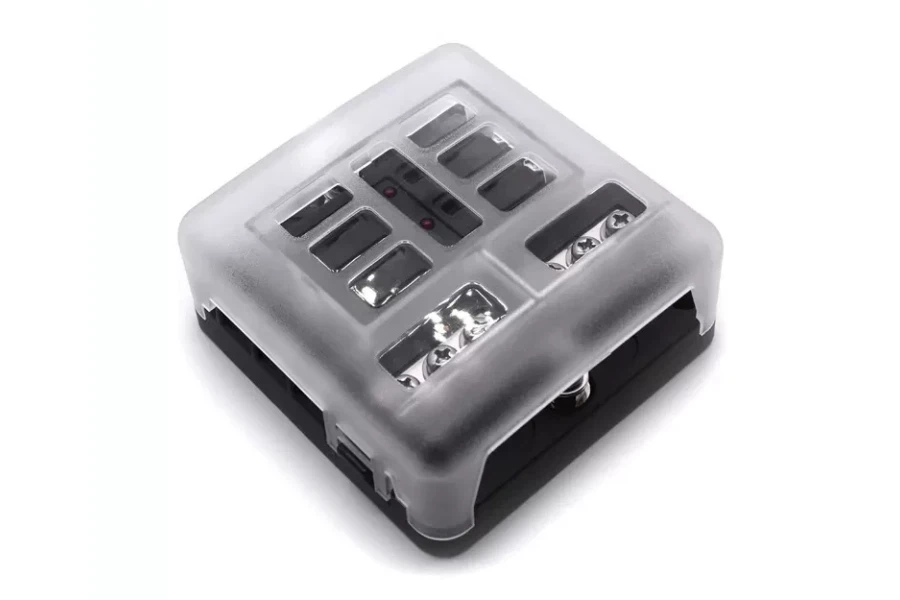

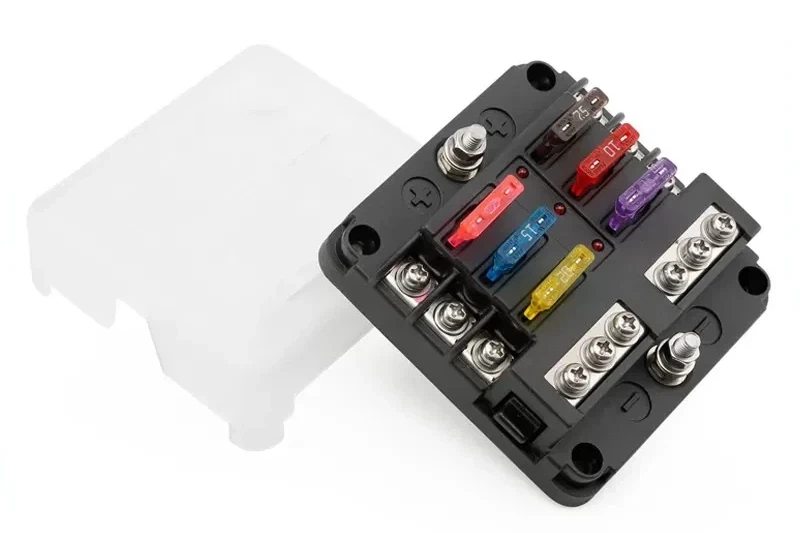

Clip-Lock Protection Cover
The cover of fuse block is Insulating with black push latch system. It's easy to open the cover by pressing it.
The cover also has the function of splash protection and dust-proof.
The transparent design helps to add extra protection to your fuses.
Pre-printed DIY Stickers
There are multi-function sticker labels with various accessories names inside the packaging for your own DIY fuse panel.

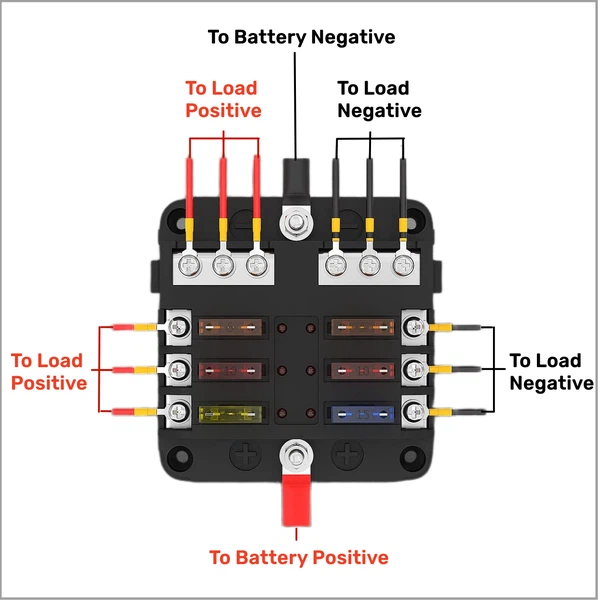

Make Wiring Clean
This marine fuse box provides you 6 dedicated fuses and 6 ground locations to keep all of your wires clean, organized, and accessible.

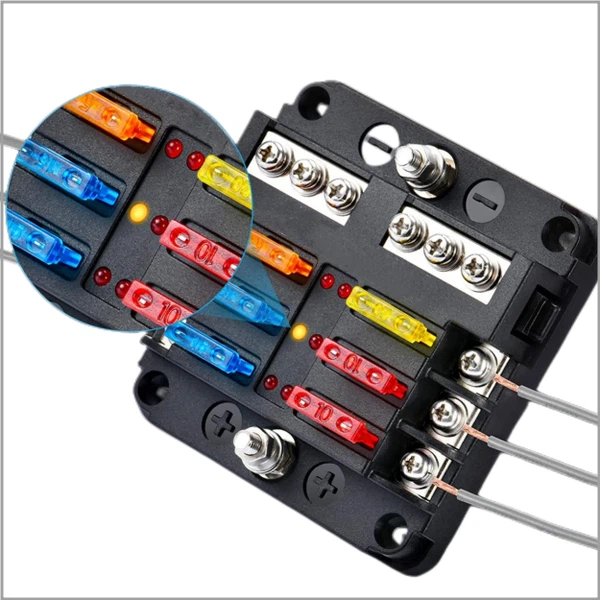

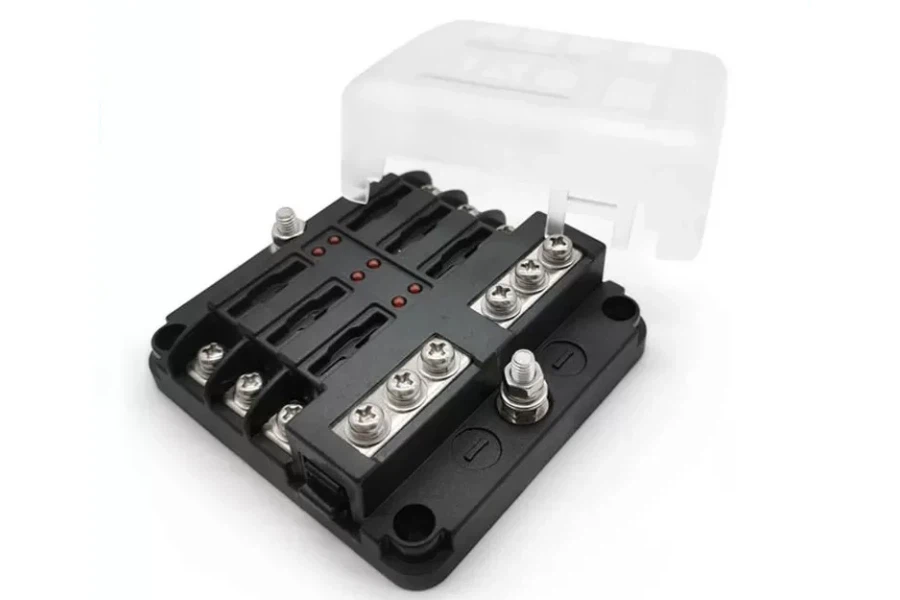

LED Indicator for Blown Fuse
You can quickly identify and replace blown fuses immediately with red led warning indicator.
Product Appilcation
Wide Application
The multi-way fuse block is suitable for all electronic and electrical equipment.
It can be widely used in autos, eco-cars, modified cars, buses, subways, airplanes, tankers, ships, boats etc.
You can mount the fuse box horizontally or vertically. And with the led indicator, you can easily troubleshoot your equipment.

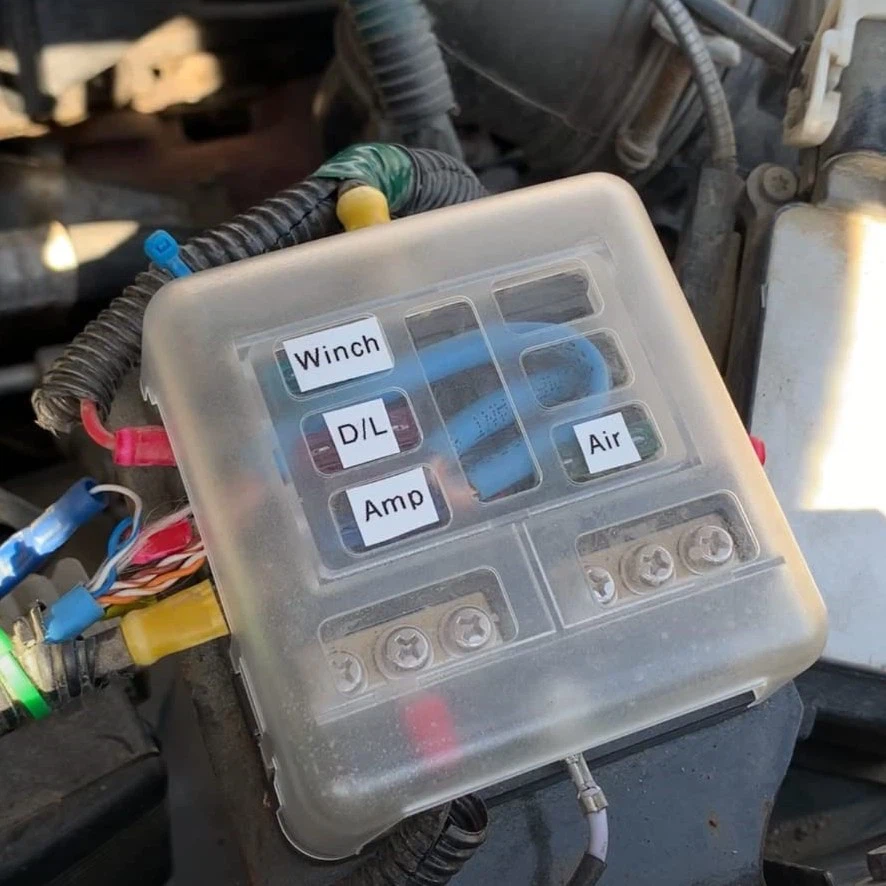

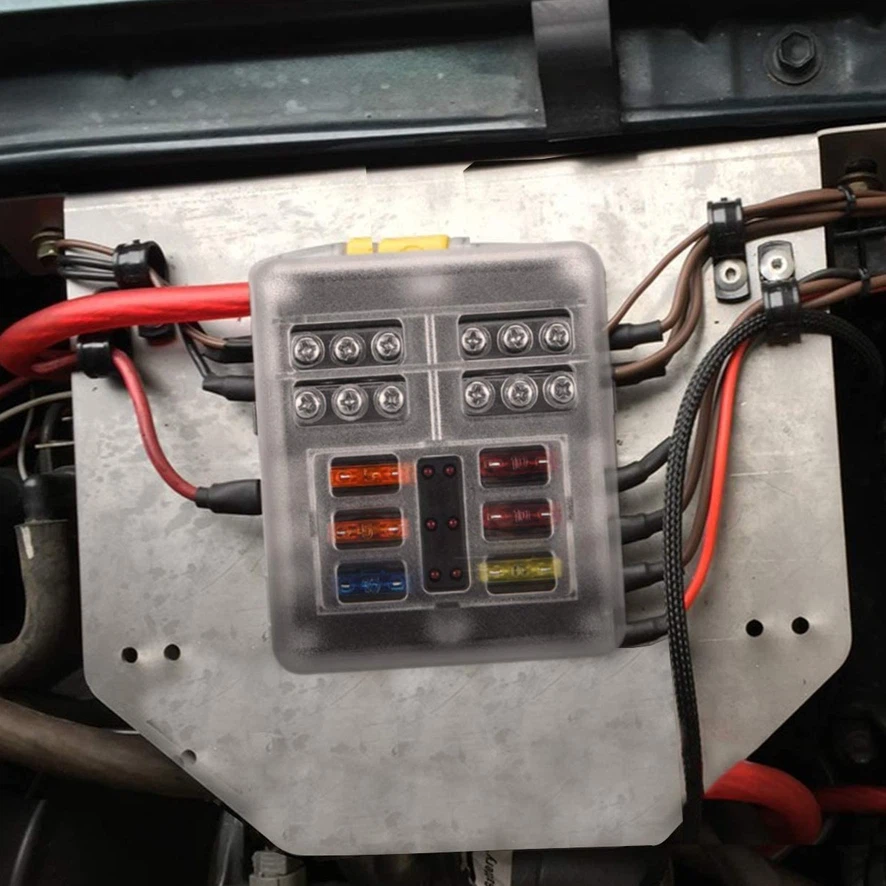

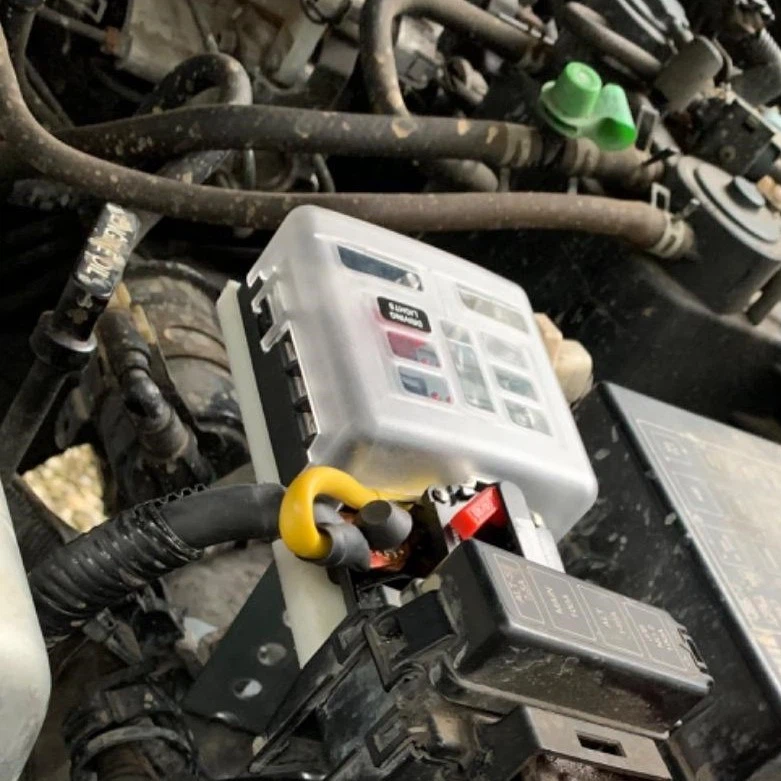

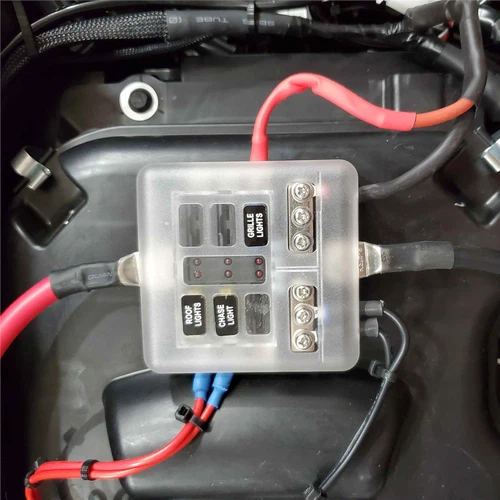

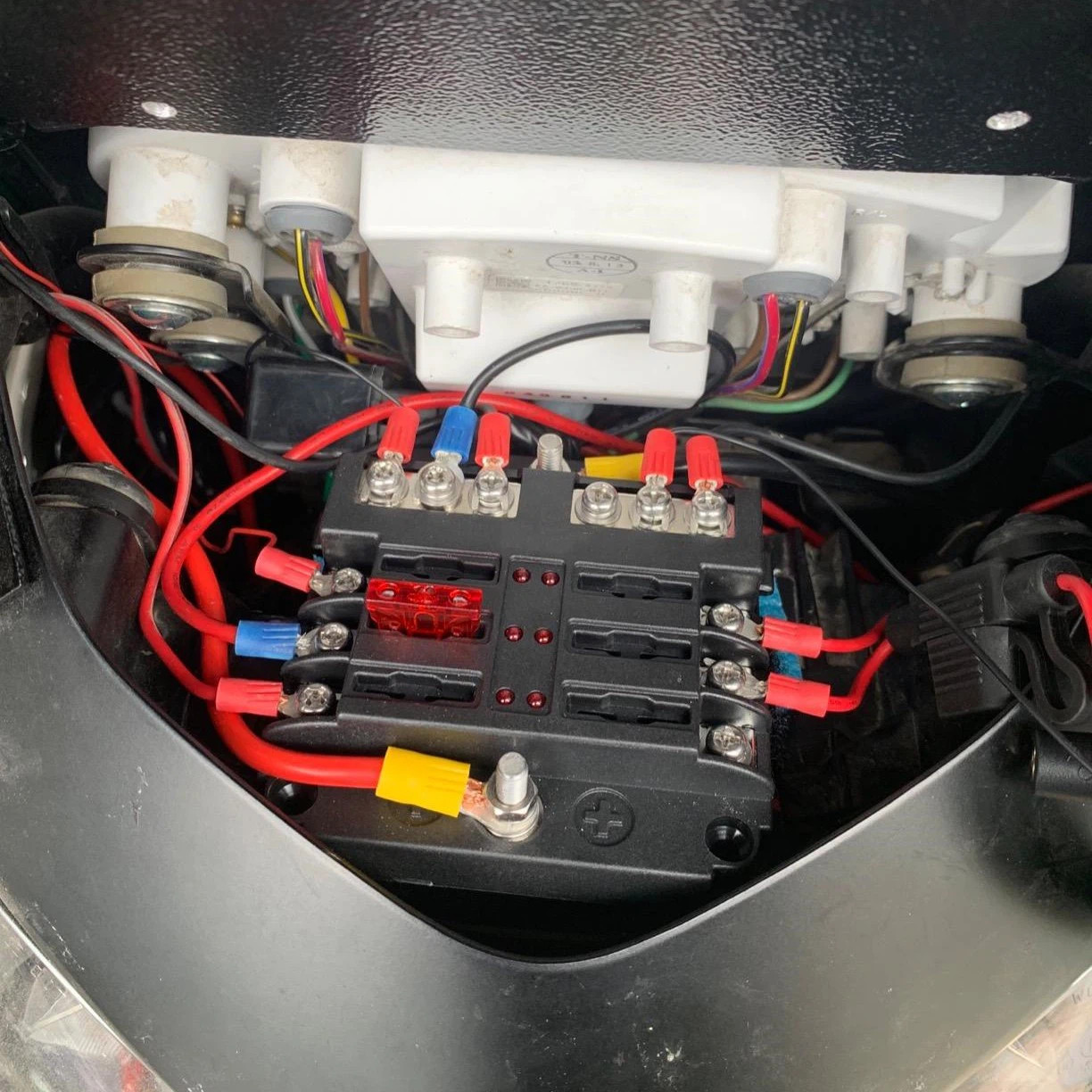

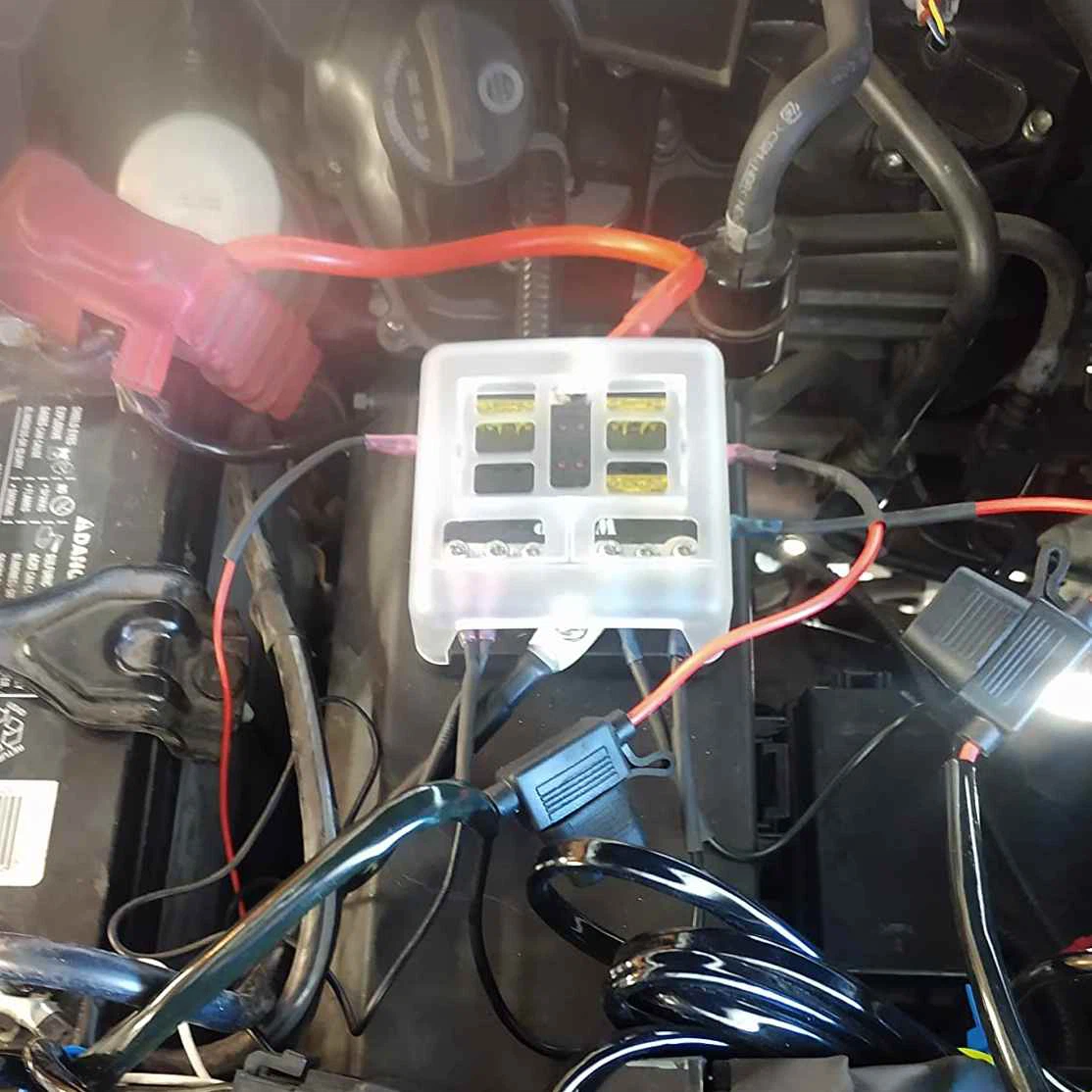

Installation Cases
Factory Infomation
Dongguan Senreach Electronic Co., Ltd. was established in 2000. Our factory covers an area of 4000 square meters with a monthly production capacity of 50 million pieces. We are committed to becoming a comprehensive circuit protection component manufacturer and solution supplier.
We are specialized in over current protection, over temperature protection, over voltage protection design, development, production and sales. Products are widely used in consumer electronics, automobiles, ships, communications, power supplies, power tools, new energy and other fields.
With variety of advanced manufacturing and testing equipment, we adopt perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.
workshop
workshop
workshop
workshop
workshop
workshop
workshop
workshop
Our Advantage
Price Advantage
We build our molds and have our own factory which enable us to offer the first-hand price to our customers. And we have been devoting to lower the production cost and offer the best price all these years.
Quality Guarantee
Every piece of product pass full inspection by both auto test equipment and our QA team.
Stock Wholesale
We have open stock in warehouse. So we can finish order in a short lead time and make fast delivery.
One-Stop service
We have R&D, QA, sales and after-sales team to offer you a full service including selection recommendation, technical support, after-sales protection.
