Products Desc.
Stud Mount High Speed EV fuse is a type of electrical safety device designed for use in Electric Vehicle (EV) systems and Insutrial equiment. This fuse is specifically rated to handle high amperage loads of up to 600 amps and is designed to mount directly onto a stud or busbar in the electrical system.
The "High Speed" aspect of this fuse refers to its ability to quickly interrupt electrical current in the event of an overload or short circuit. This is important for protecting the vehicle's electrical system from damage and preventing potentially dangerous situations from occurring.
Overall, the 600A Stud Mount High Speed EV fuse plays an important role in ensuring the safe and reliable operation of electric vehicles, and is a critical component in protecting both the vehicle and its occupants from electrical hazards.
Advantages of High Speed EV Fuse
1. High current rating: These fuses have a current rating range of 6A to 600A, which makes them suitable for high power applications.
2. High speed type: The fuses are designed as high speed type, which means they can operate quickly to protect against short-circuit faults.
3. Stud mount design: The fuses feature a stud mount design, which provides a secure and reliable connection to the circuit.
4. Industrial-grade construction: The fuses are constructed using high-quality materials that are suitable for use in harsh industrial environments.
5. Compact size: Despite their high current rating, these fuses are relatively compact in size, making them suitable for use in tight spaces.
Product Parameter
| Product name: | Stud Mount Bolted DC Fuse Link | Bolts: | M6 |
|
Rated Voltage: |
200V DC | Rated Current: | 6A To 600A |
| Mount: | Stud Mount | Installation Torque: | 6.0±1.0(N.m) |
| Glass Of Operation: | EV Fuse | Breaking Capacity: | Max 20kA@200Vdc; Min 200%In@200Vdc |
| Type: | High Speed | Standard: |
JASO-D622/ISO8820/GB31465/CE/RoHS
|

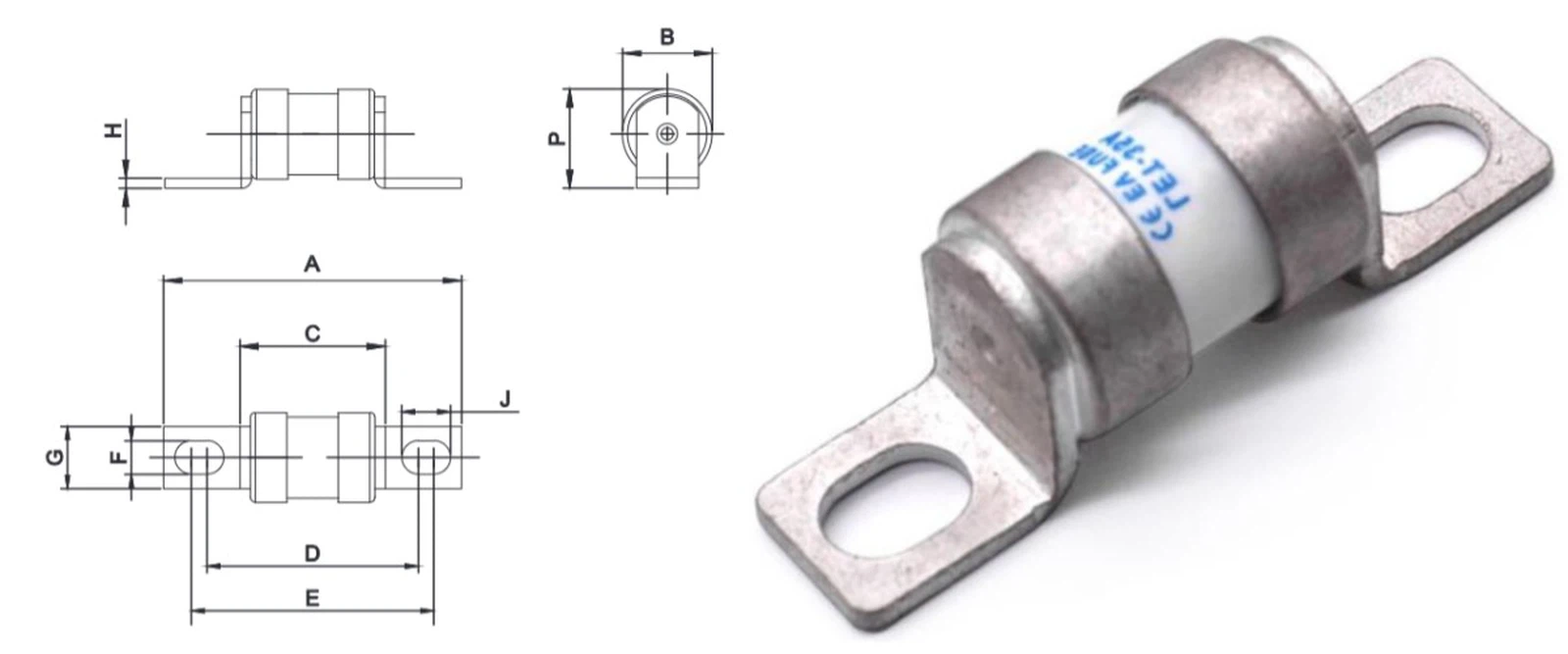

Products Details
Unit: mm
| Rated Current | Type | A±1.5 | B±1.0 | C±1.0 | D±1.5 | E±1.5 | F±0.5 | G±1.0 | H±0.5 | J±0.5 | P±1.0 |
| 6-160A | LET | 55.5 | 17.7 | 25 | 38.5 | 44.5 | 6.5 | 12 | 2 | 9.5 | 19.2 |
| 180-300A | LMT | 64.5 | 29 | 29 | 43 | 48.5 | 8.1 | 20 | 3 | 10.7 | 31.5 |
| 315-600A | 88 | 37.5 | 30.5 | 55 | 65 | 11 | 25 | 3 | 16 | 39.5 | |
| 160-600A | LMTS | 84 | 38 | 30.5 | 50.5 | 61.5 | 10.5 | 25.5 | 3 | 16 | 42 |

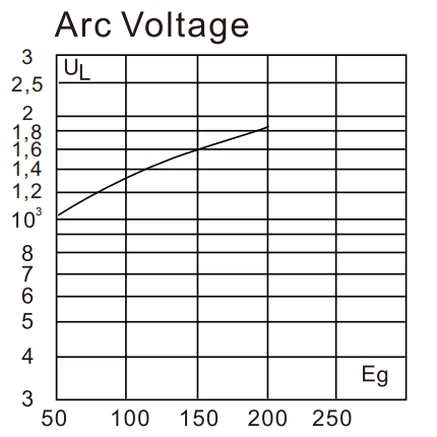

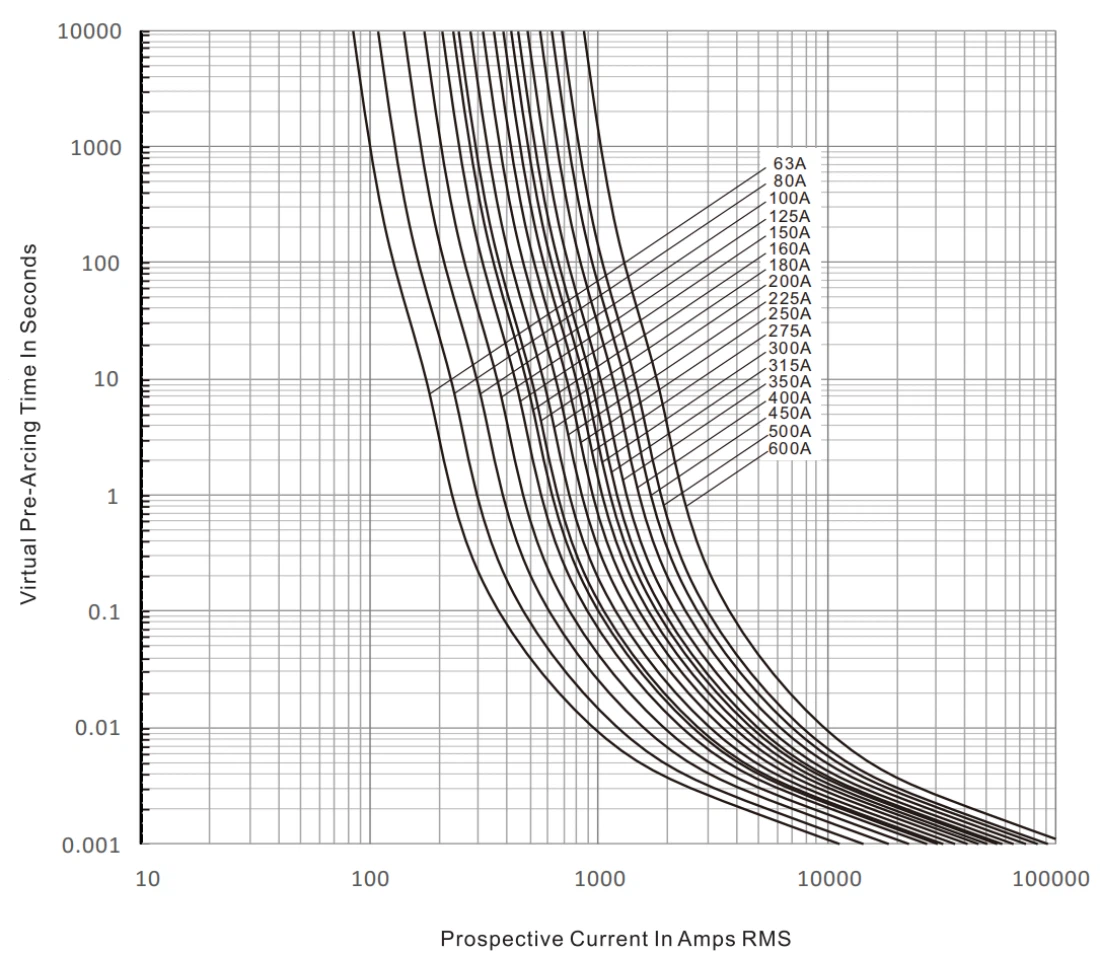

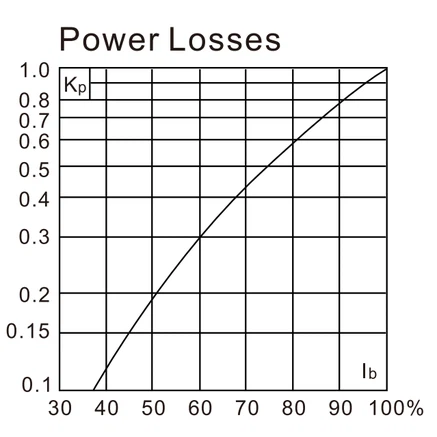

Electrical Characteristics
Products Application
Some of the common applications of Stud Mount Bolted DC Fuse Links include:
1. Solar Power Systems: These fuses are used in solar power systems to protect the solar panels and other equipment from overcurrents and short circuits.
2. Battery Protection: Stud Mount Bolted DC Fuse Links are also used in battery systems to protect them from overcurrents and short circuits.
3. DC Motor Drives: These fuses are commonly used in DC motor drives to protect the motor and the drive system from overcurrents and short circuits.
4. Industrial Power Distribution: Stud Mount Bolted DC Fuse Links are also used in industrial power distribution systems to protect the electrical equipment from overcurrents and short circuits.
5. Wind Turbine Power Systems: These fuses are used in wind turbine power systems to protect the electrical equipment from overcurrents and short circuits.
6. Electric Vehicle (EV) Charging Stations: Stud Mount Bolted DC Fuse Links are also used in EV charging stations to protect the charging infrastructure from overcurrents and short circuits.
Overall, Stud Mount Bolted DC Fuse Links are suitable for a wide range of DC applications where reliable protection against overcurrents and short circuits is essential. These fuses are designed to provide high levels of safety and reliability in industrial and commercial environments where high levels of current and voltage are present.
