Product Description

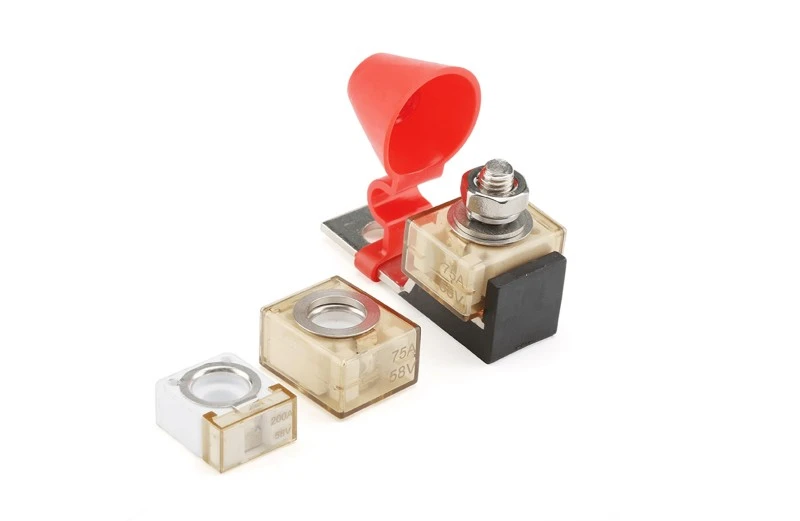

Marine Rated Battery Fuse is short for MRBF. Marine rated battery fuses are used to protect the main circuit on large battery packs. They are easy to install and were built with longevity in mind. Each fuse slides onto the post of the Marine rated battery fuse block. Battery terminal fuse is Space-saving ignition protected fuse for 30 to 500 Amp loads. And it must used with a terminal fuse block as below.
The base material is thermoplastic PPS, resistant to temperature and wear. The studs and screws are made of stainless steel with good electrical conductivity and strong oxidation resistance.
The ceramic material of the fuse is resistant to high temperature. The copper plated nickel melting element is resistant to oxidation, and has good electrical and thermal conductivity.
Advantage of Marine Rated Battery Fuse
1. Space-saving ignition protected fuse for 30 to 500 Amp loads.
2. High interrupt rating 10000 Amps @ 14-V DC, 5000 Amps @ 32-V DC, 2000 Amps @ 58-V DC .
3. Clear window - visual indication of blown condition, use for main or auxiliary circuits.
Product Data
| Product name: | Marine Rated Battery Terminal Fuse CFM |
Interrupt Capacity: |
10000A @ 14V DC; 5000A @ 32V DC; 2000A @ 58V DC |
|
Rated voltage: |
58V DC | Rated current: | 30A to 500A |
| Housing Material: | Plastic | Insulated Material: | Ceramic |
| Base: | ThermopIastic | Melting Element: | Copper Alloy |
| Application: | Automotive, Marine, RV, Yacht, Etc | Packing: |
single package |
| % Of Ampere Rating | Opening Time Min / Max(s) |
|
100 |
360,000 s / –
|
|
135 |
– / 3,600 s
|
|
150 |
1 s / 600 s
|
|
200 |
0.200 s / 60 s
|
|
300 |
0.050 s / 1.5 s
|
|
400 |
0.020 s / 0.50 s
|
| 600 |
– / 0.20 s
|

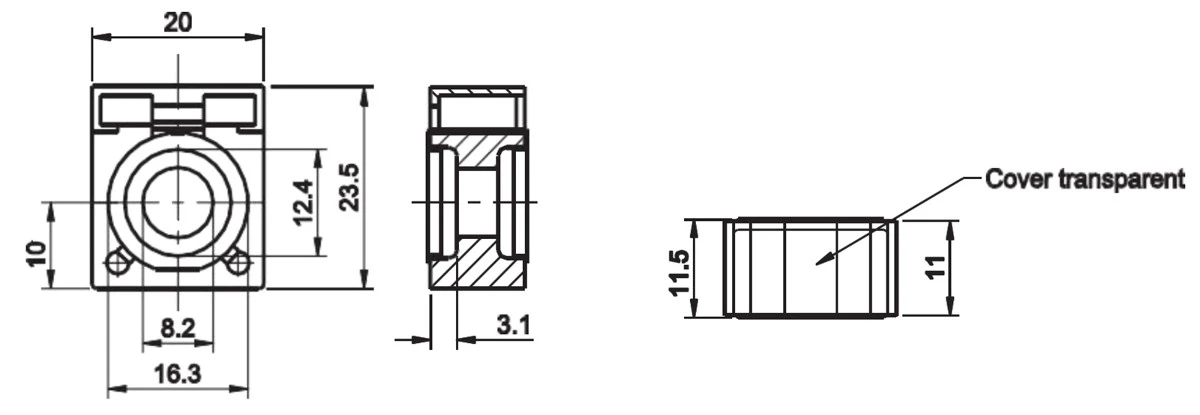

Product Dimensions in mm

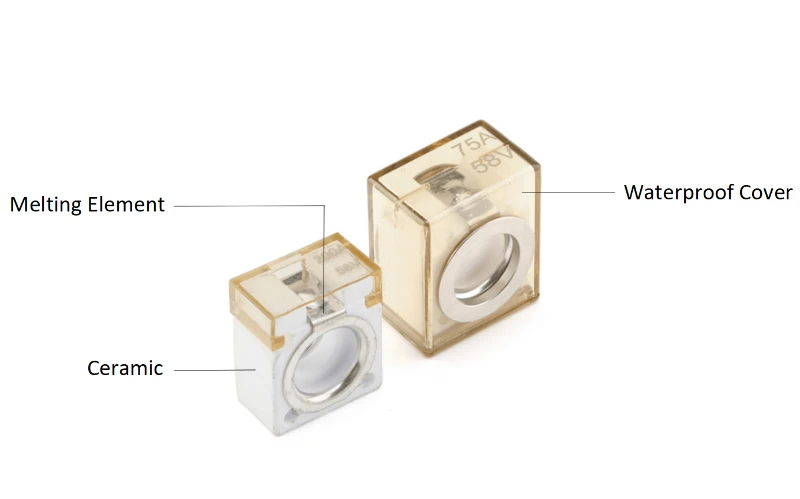

Products Description

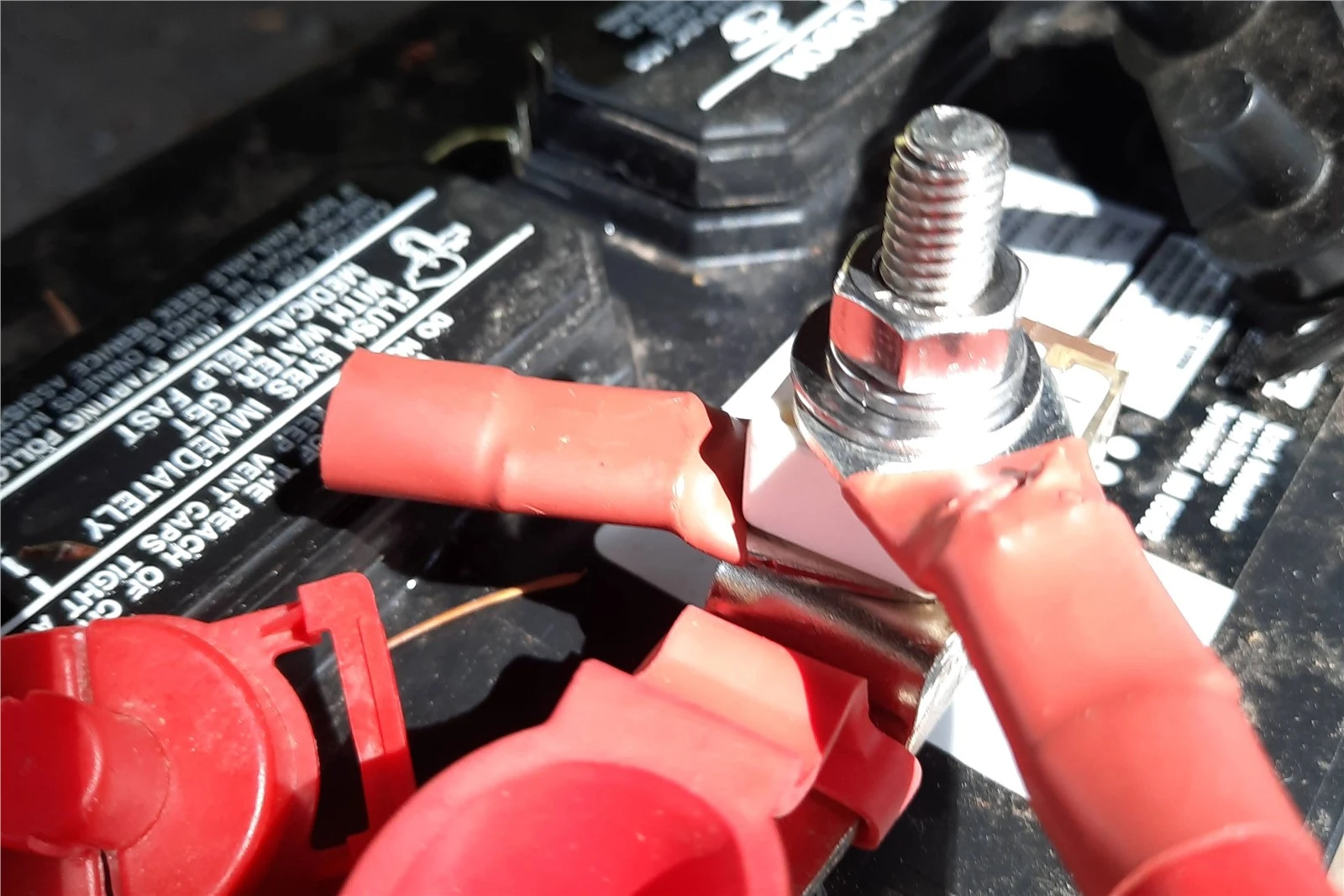

Installation Cases
Marine rated battery fuse must be installed with a terminal fuse block as below. We also have the fuse block on sale, item no. is TRCF.
Appilance
Marine rated battery fuse is mostly used for DC main, inverter, windlass and bow thruster circuit protection, like Automotive, Marine, RV, Yacht, Etc.
