Products Description
MEGA Fuses are ideal for battery and alternator protection applications and other heavy duty cables requiring ultra-high current protection. ANM Bakelite Fuse is designed for high current circuit protection up to 500A. ANM Fuse also provides time delay characteristics.
When the protected circuit occurs abnormal or short circuit or serious overload, the fuse will be blown in time to achieve the purpose of protecting the protected electrical circuit. The fuse cannot be recovered, and a new fuse is needed to continue working.
1. High Current Handling: Mega Bolt-On fuses are designed to handle very high current loads, often ranging from 80 amps up to several hundred amps. This makes them suitable for protecting power-hungry electrical components and systems.
2. Low Voltage Drop: These fuses have a low internal resistance, which results in minimal voltage drop across the fuse. This is important in high-current applications where voltage losses can affect the performance of connected devices.
3. Bolt-On Design: Mega Bolt-On fuses feature a bolt-on design, which means they are secured to the fuse holder using bolts or nuts. This design ensures a strong and reliable connection, even in environments with significant vibrations.
4. Heavy-Duty Construction: These fuses are built with robust materials and construction techniques to withstand high currents and harsh conditions. They are often encased in a durable housing that provides additional protection.
Products parameters
| Product name: | Mega Bolt on Fuse | Rated voltage: |
80V DC
|
| Rated current: | 40A-500A | Material: | Bakelite+Copper |
|
Interrupting Rating:
|
2000A@80VDC;
|
Operating Temperature Range:
|
-40℃ ~ 125℃
|
|
Terminals:
|
Copper/Zn alloy.
|
Housing Material:
|
PA66/PPA(33% or 35%GF)
|
| Certification: | ROHS | Type: | ANM Bakelite Auto Fuse |
| Model: | Middle Stud Fuse | Packing: | PE Bag |
Products Material
Functional Characteristics
Remark:
- According to the different conditions of use, the characteristics will also change accordingly.
- Melts greater than 300A are not allowed to be continuously loaded with rated current.
- The allowable carrying capacity is determined by the wire.
- The melt is only used for short circuit protection.
Products Dimension

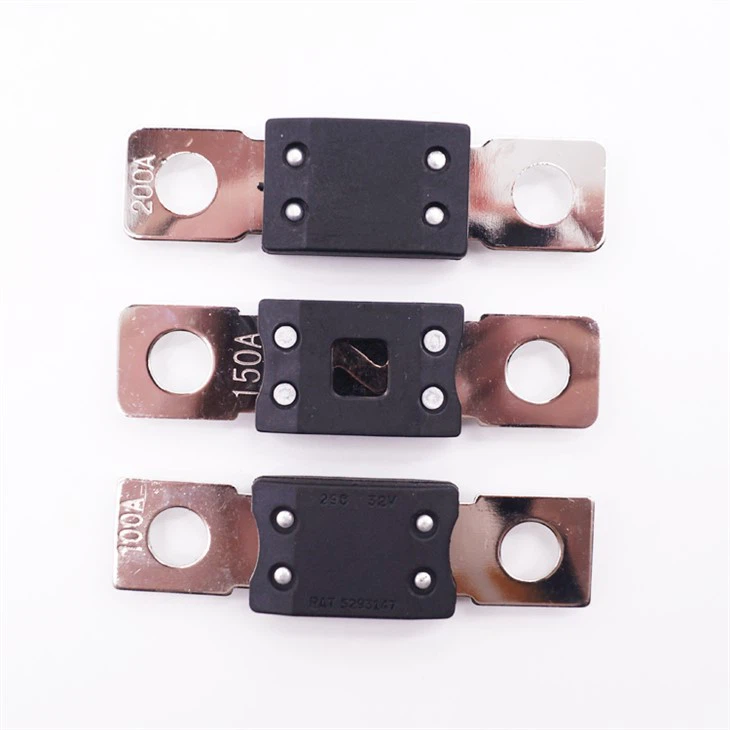

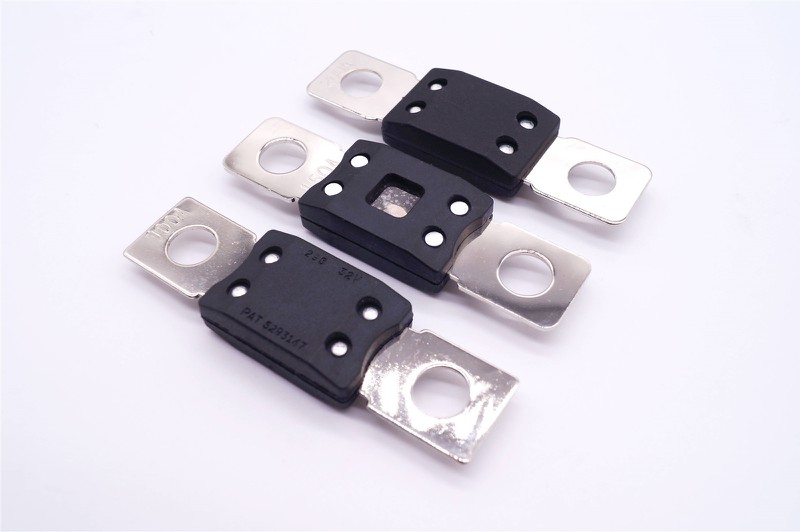

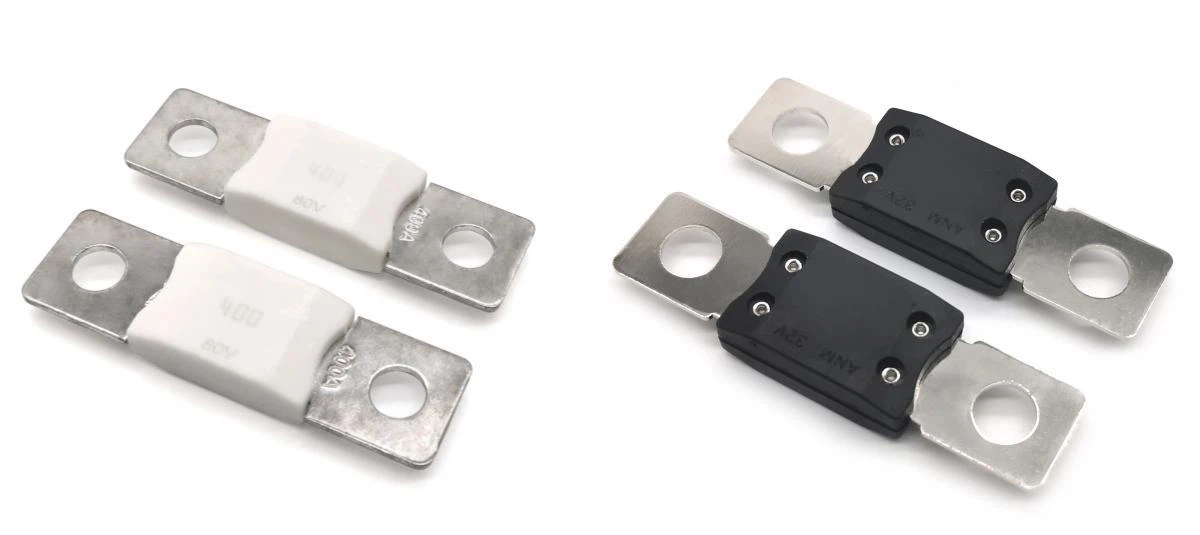

Products Pictures
Application
Mega bolt on fuses or ANM bolt on fuses are suitable for cars, trucks, construction vehicles, buses and more.
Here's some installation cases in practical application.
