Products Description

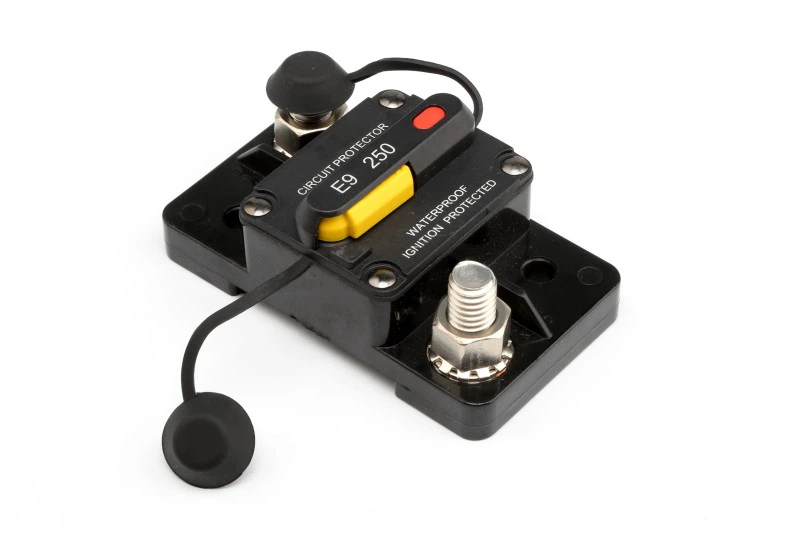

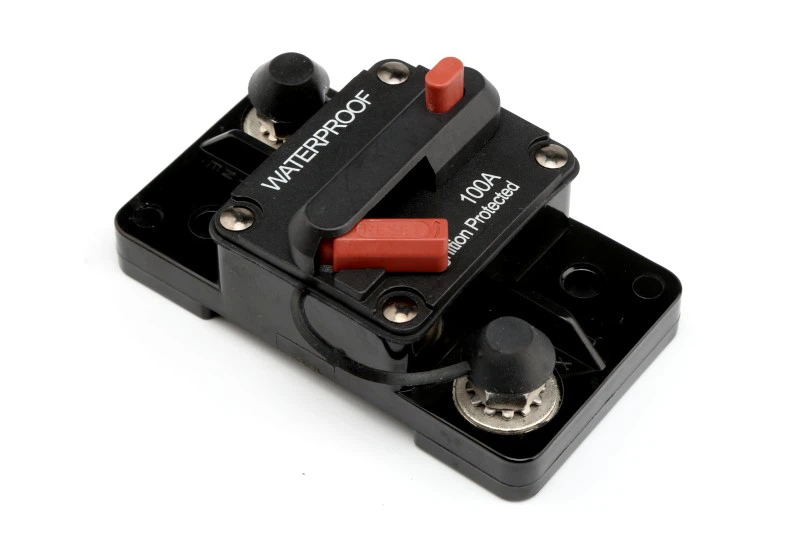

E93 high amp circuit breaker is a single pole thermal type breaker, made of black UL-rated 94V0 thermoset plastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (surface-mount) bases. It is typically used in auxiliary and accessory circuits in truck, bus, RVs, marine systems, battery chargers, DC audio systems, compartment and blige area applications.
1. Type 3 Circuit Breaker: Type 3 circuit breakers are typically used for DC applications in vehicles and boats. They provide protection against overcurrents and short circuits, making them suitable for protecting sensitive electronics and equipment.

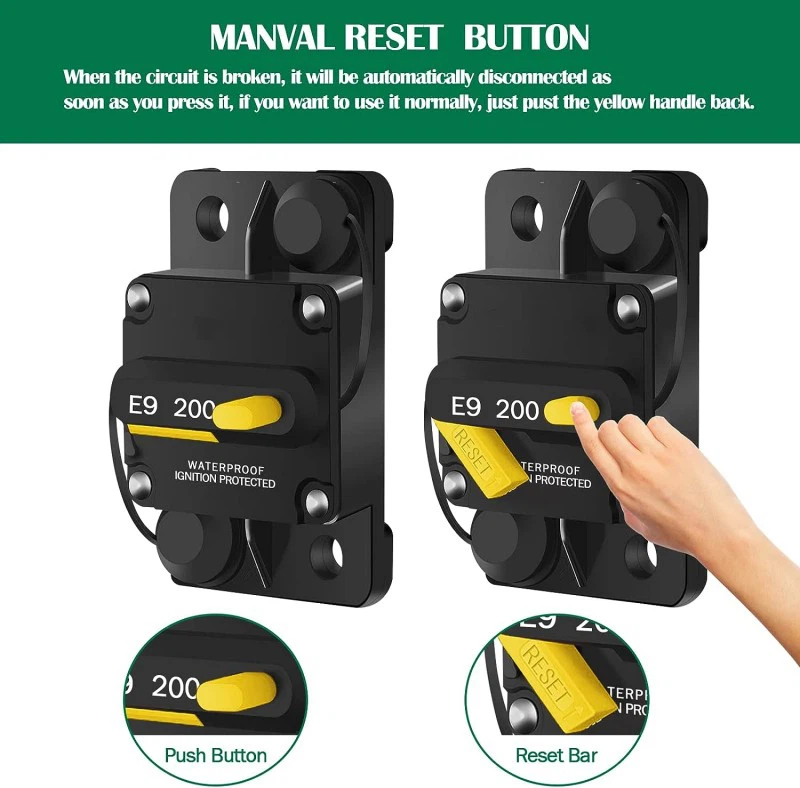

2. Single Pole, Normally Closed: This means that the circuit breaker has one switching element (pole) and is normally in the closed position, allowing current to flow through the circuit. It will open (trip) when an overcurrent condition is detected.

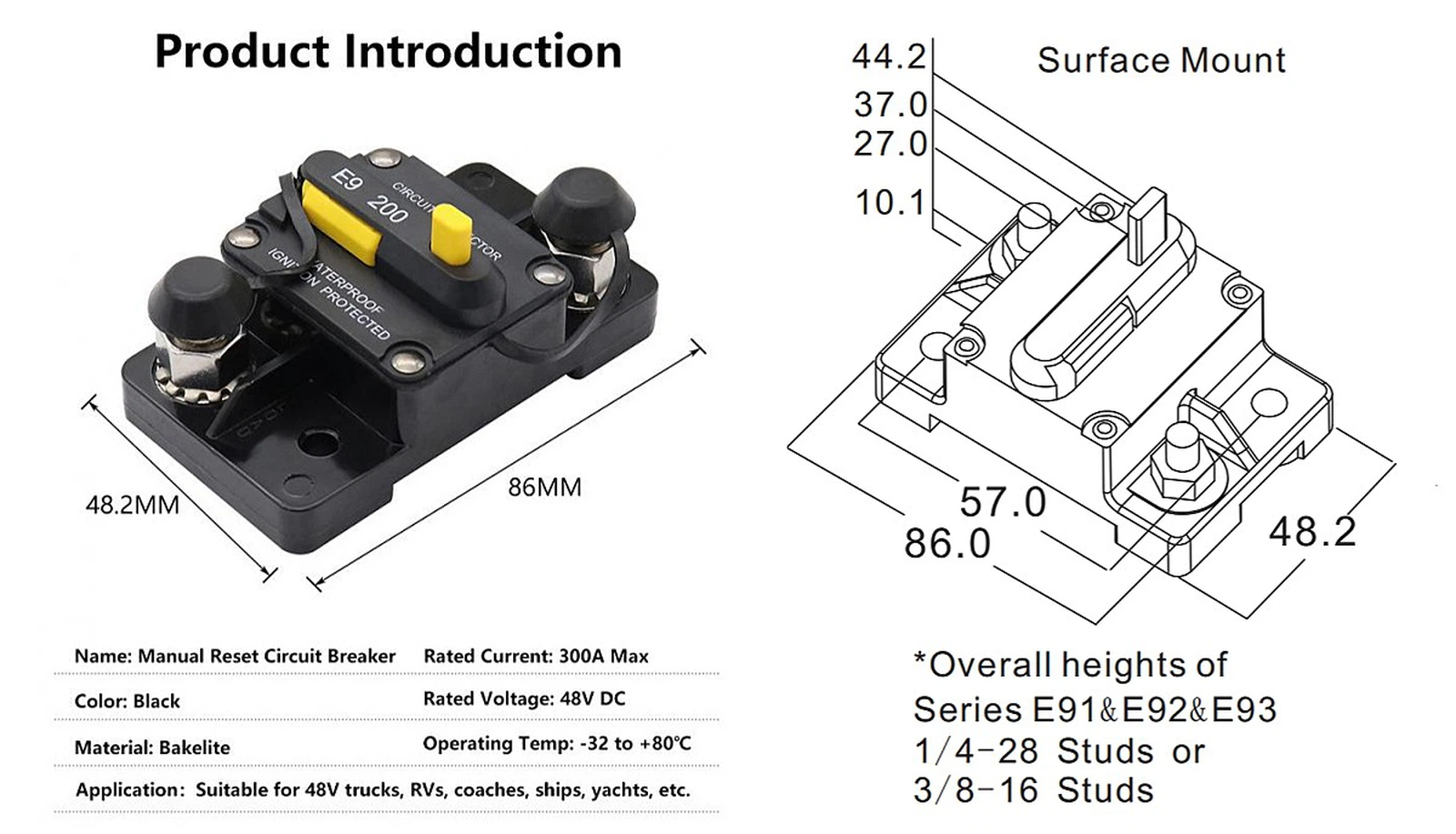

Products Parameter
| Material： |
Black UL-rated 94V0 thermoset plastic.
|
| Pole： | Single pole thermal device |
| Termination： |
1/4-28 or 3 8 16 threaded studs
|
| Rating： |
25-250A, 30Vdc; 48Vdc
|
| Interrupt Rating: | 3000A @ 30 Vdc |
|
Operating Temperature Rating:
|
–25°F (–32°C) to 180°F (82°C)
|
|
Storage Temperature Rating:
|
–30°F (–34°C) to 300°F (149°C)
|
|
Torque Rating:
|
50 in-lbs (5.6N•m) max
|
|
Marking:
|
Standard marking includes amp ratings and part numbers. Custom markings also available.
|
|
Mounting Torque Rating:
|
Panel or surface-mount options; 50 in-lbs (5.6N•m) max.
|
|
Ingress Protection Rating:
|
Ip67
|
|
Compliances:
|
SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
|
| Applications: | Trucks, RVs, Fridges, LED screens, Battery charges, Solar and etc. |

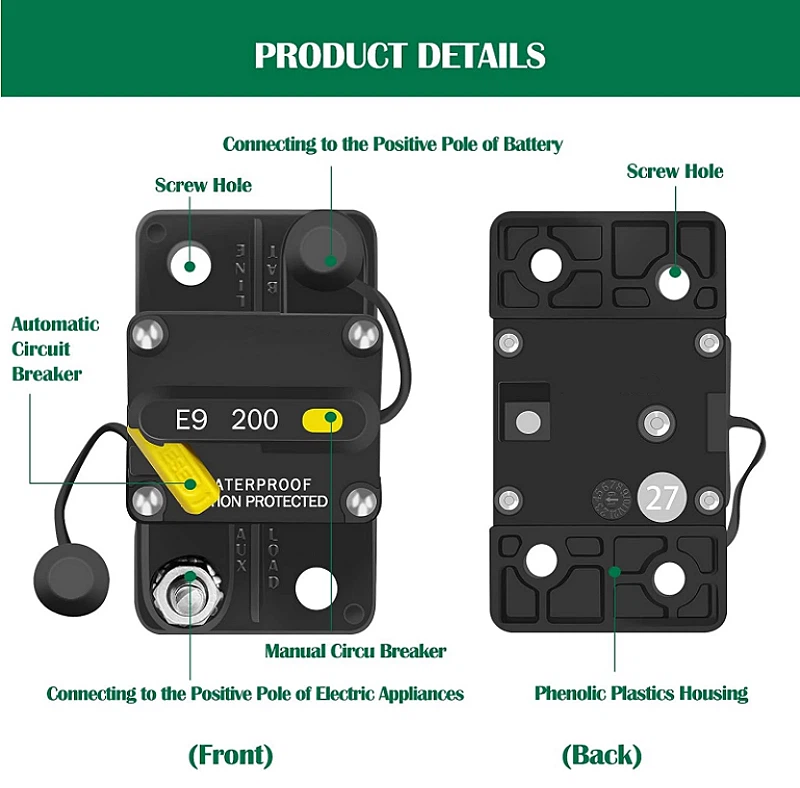

Products details
Application
E93 High Amp Manual On-Off Circuit Breaker is suitable for car audio/video system, boat, trucks, buses, ATV winches RV's, Marine ect, also for battery charges and DC sound system.
Car
Yacht
Bus
Touring car

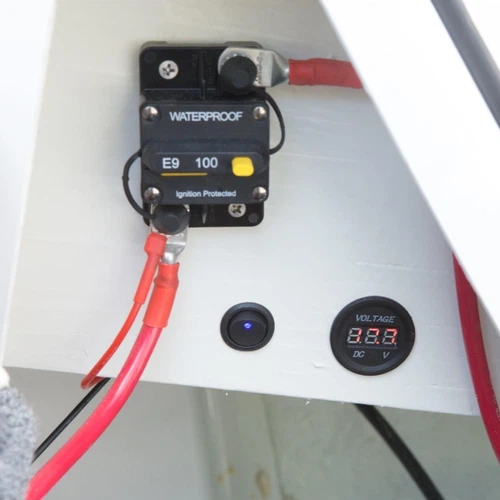

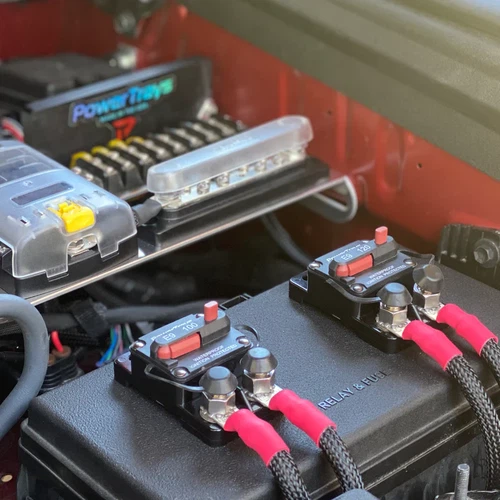

Installation
E93 High Amp Manual On-Off Circuit Breaker can be installed on car, yacht, boat, bus, truck, RV's, ATV winches and marine and DC sound amplifier system for overload protection. If you want to install a circuit breaker in a 24v DC system, you cannot use a circuit breaker designed for a 12v DC system. The capacity cannot handle the increasing current, which will cause it to trip. So choosing a circuit breaker correctly is very important.
about us
Dongguan Senreach Electronics Co., Ltd, founded in 2011, is a professional circuit protection components manufacturer and programme supplier in China. We have 20 years' experience in manufacturing fuse, fuse holder, circuit breaker, thermal protector, ntc sensor and etc.
With variety of advanced manufacturing and testing equipments, we adpot perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.
We are specialized in developing, manufacturing and selling circuit protection components for over-current, over-temperature and over-voltage applications with kinds of performance, types and specifications. Our products are widely used in consumer electronics, automobiles, vessels, communication device, power supply, new energy, photovoltaic and other fields.

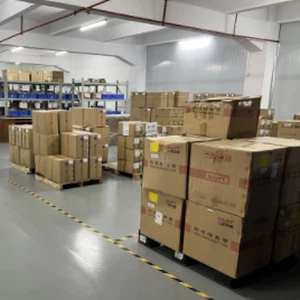

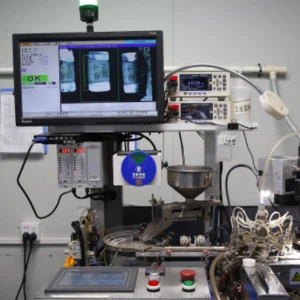

workshop
