Products Description

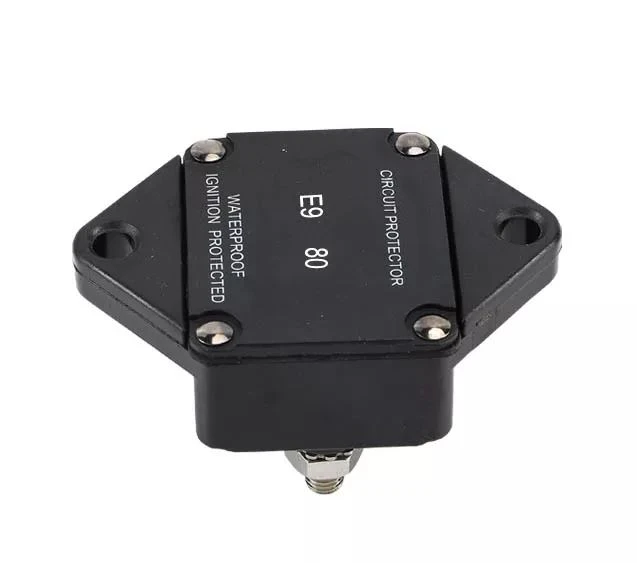

E94 auto reset circuit breaker is a unipolar and free cycling trip protector.

The housing of E94 circuit breaker is made of thermal plastic which meets UL rated 94V0. The thermoplastic cable studs and the covering device are equipped with thermoplastic elastic insulation cover and thermoplastic body stud insulator seperaately.

Comparing with ordinary fuse, circuit breaker has various types and can be widely used in circuit control systems in a variety of scenarios to ensure the safety of electrical equipment. What's more, it's waterproof, dustproof and explosion-proof which makes it be able to protect itself while protecting the circuit. The last but not least, circuit breaker is reusable, cost effective and low maintain cost.

E94 circuit breaker is mainly used in truck, bus system, RV ship electrical system of DC sound system. As an additional protection for circuit system accessories and for applications such as lifting gates, it has external fire and rain protection.

E9 Panel Mount Series

E94circuitbreaker

E94 (Type 1)

E95circuitbreaker

E95 (Type 3)

E96CircuitBreaker111

E96 (Type 3+switch)

E94circuitbreaker1

E95circuitbreaker1

E96CircuitBreaker12

Products parameters

Technical info	Details
Model Number:	E94
Reset Type:	Automatic reset (type 1)
Mounting:	Panel mount
Termination:	1/4" Stainless Steel Studs
Stud Lay Out:	Side by side
Dimension:	Length: 1.543"； Width: 1.900"； Height: 2.106"； Unit: inch
Voltage:	48Vdc
Current:	25-250A
Interrupt Capacity:	2,500A @ 14Vdc / 1,500A @ 48Vdc
Operating Temperature Rating:	–25°F (–32°C) to 180°F (82°C)
Storage Temperature Rating:	-34ºC (-30ºF) to 149ºC (300ºF)
Materials:	Black UL-rated 94V0 thermoset plastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (surface-mount) bases.
Torque Rating:	50 in-lbs (5.6N•m) max
Ingress Protection Rating:	Ip67
Compliance:	SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
HS code:	85362000

Product Picture

E94circuitbreakeradvantage

Appliances

yachtcircuitbreaker

Yacht/Boat/Trolling motor/Marine

1. Circuit breaker can protect the circuit from overload conditions.

2. It can protect the circuit through the thermal trip. A circuit breaker will trip if the current flow occurs gets too large across a thermal shunt inside.

3. It can also integrate a ground fault circuit interrupter internally to prevent potential difference between neutral and ground due to electrical leakage or to prevent potential shock.

RVcircuitbreaker

RV/Caravan

E94 auto resetting circuit breaker is workable in multiple amps. This lets us use it in different kinds of applications, for example, from indicator lights(light loads) to radio transmitters(heacy loads), headlights, and GPS systems.

buscircuitbreaker

Car/Bus/Truck

E94 high amp auto reset circuit breaker has thermal detection features that it will automatically trip when current overloading occurs and it will reset after a short while.

It is a great choice to protect our electrical systems. It can also save your money by skipping fuse replacement whenever you encounter an electrical fault.
