Product Description
A micro fuse is a type of electronic fuse that is designed to protect electronic circuits against overcurrent conditions. Micro fuses are small in size and are typically used in applications where space is limited. They are also known as subminiature fuses or surface mount fuses.
Micro fuses are typically designed with a low breaking capacity, meaning they can handle low to moderate levels of current without tripping. They are available in a range of current ratings, typically from a few milliamps up to several amps. Micro fuses can be either fast-acting or time-delay (slow-blow), depending on the application requirements.
1. Size: The Round Body Subminiature Radial Lead time lag type Micro Fuse is a small fuse, typically measuring around 3.6mm in diameter and 10mm in length. This makes it ideal for use in applications where space is limited.
2. Packaging: This type of fuse is typically available in bulk packaging or on a tape and reel for use in automated manufacturing processes.
3. Time lag response: This type of fuse is a time lag or slow-blow fuse, which means that it provides a delayed response to overcurrent conditions. This delay allows the fuse to handle short-term surges of current without tripping, while still providing protection against sustained overcurrent conditions.
4. Operating temperature: The Micro Fuse is designed to operate over a wide temperature range, typically from -55°C to +125°C. This makes it suitable for use in harsh environments.
Product Data

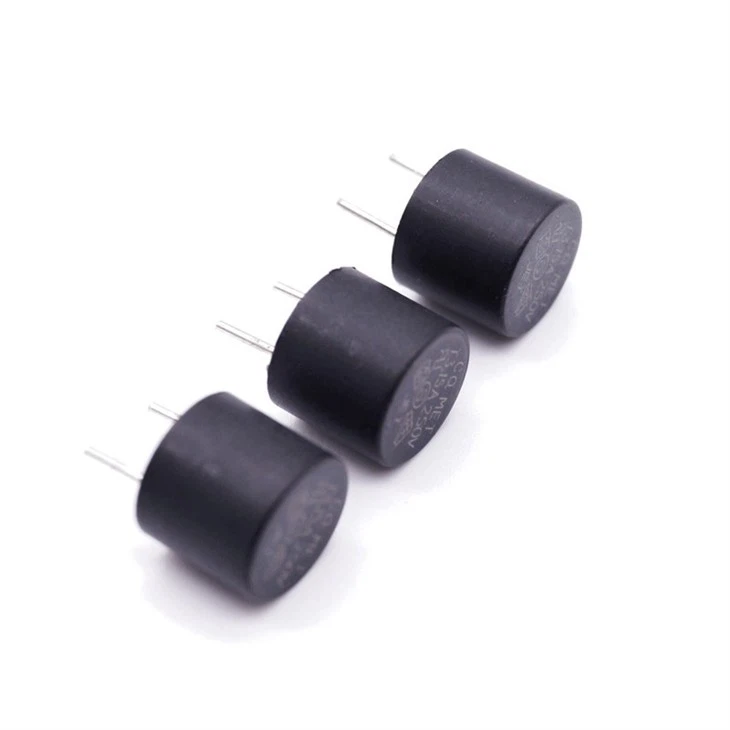

| Product name: | Slow Blow Time Lag Micro Fuse | Electrical Characteristics: | Time-Lag(T) |
|
Rated voltage: |
250V | Rated current: | 100mA-6.3A |
| Leads: | Axial Lead | Shape: | Round Body |
| Lead Pull Strength: | 10N(EN60068-2-21) | Resistance To Solder Heat: | 260°C , 10s (EN60068-2-20) |
| Base: | Thermoplastic Polyamide | Color: | Black, Brown |
Product Details
Dimension: Unit/mm
Electrical Characteristics
| Rated Current(A) | Rated Voltage(V) | Breaking Capacity | Maximum voltage drop mv |
VDE | CCC | VDE REG.NrB871 |
CQC | UR |
| 100mA | 350 | ● | ● | ● | ||||
| 125mA | 300 | ● | ● | ● | ||||
| 160mA | 280 | |||||||
| 200mA | 260 | |||||||
| 250mA | 240 | ● | ● | ● | ||||
| 315mA | 220 | ● | ● | ● | ||||
| 400mA | 200 | ● | ● | ● | ||||
| 500mA | 190 | ● | ● | ● | ||||
| 630mA | 50~60Hz | 180 | ● | ● | ● | |||
| 800mA | 250 | 160 | ||||||
| 1A | 140 | ● | ● | ● | ||||
| 1.25A | 130 | ● | ● | ● | ||||
| 1.6A | 120 | ● | ● | ● | ||||
| 2A | 100 | ● | ● | ● | ||||
| 2.5A | 100 | ● | ● | ● | ||||
| 3.15A | 100 | ● | ● | ● | ||||
| 4A | 40A/250V | 100 | ● | ● | ● | |||
| 5A | 50A/250V | 100 | ● | ● | ● | |||
| 6.3A | 63A/250V | 100 | ● | ● | ● |
Product Appilance
Time delay micro fuses are designed to provide delayed protection against overcurrent conditions in electronic circuits. Here are some common applications of Round Body time delay micro fuses:
1. Audio equipment: Round Body time delay micro fuses are commonly used in audio equipment, such as amplifiers and speakers, to protect against overcurrent conditions that could damage sensitive components.
2. Power supplies: Time delay micro fuses are often used in power supplies to protect against short-term current surges that can occur during startup or shutdown. They can help prevent damage to sensitive components in the power supply, such as voltage regulators and capacitors.
3. Industrial controls: Round Body time delay micro fuses are used in a wide range of industrial equipment, including machinery, motors, and control systems. They can help protect against short-term current surges that could damage equipment or cause downtime.
4. Medical devices: Micro fuses are commonly used in medical devices to protect against short-term current surges. They can help prevent damage to sensitive electronic components and ensure the safe and reliable operation of medical equipment.
5. Lighting: Micro fuses are used in a variety of lighting applications, including LED lighting and fluorescent lighting. They can help protect against short-term current surges that could damage lighting components and affect the performance of the lighting system.
