Products Desc.

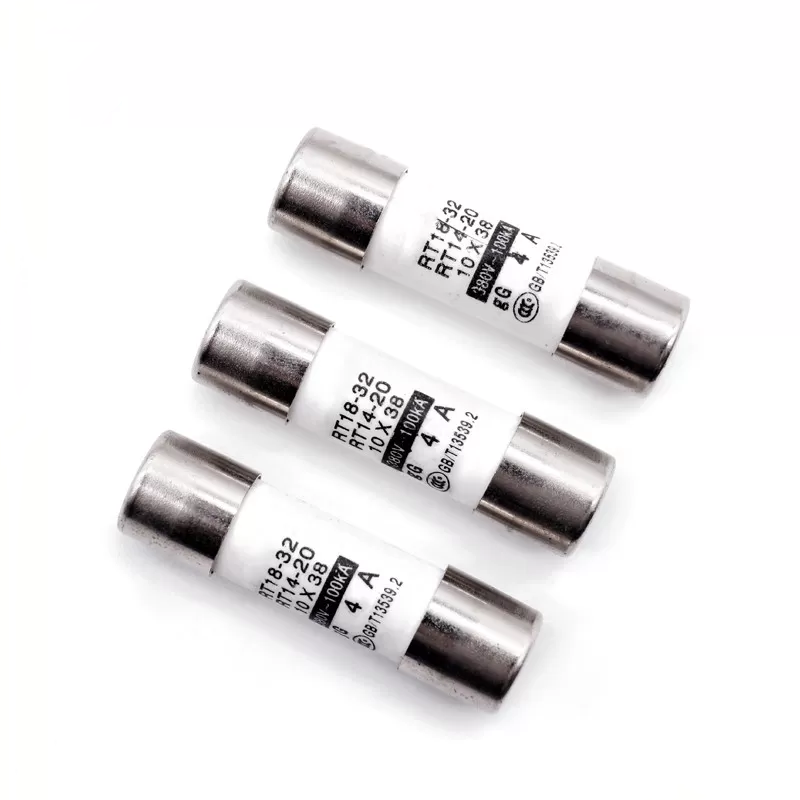

A 10*38mm PV fuse is a type of fuse designed for use in photovoltaic (PV) systems. It has a cylindrical shape with a diameter of 10mm and a length of 38mm. This fuse is designed to protect the PV system from overcurrent or short circuit conditions that could damage the components or cause a fire.
The 10*38mm PV fuse is rated for a specific current, which determines the maximum current that can flow through the fuse before it will blow and break the circuit. This rating is typically printed on the fuse body, along with other information such as the voltage rating and the manufacturer's name or logo.
Overall, the 10*38mm PV fuse is an important component of a PV system, providing essential protection against overcurrent and short circuit conditions that could damage the system or cause a safety hazard.
Advantages of 10 x 38mm Photovoltaic Fuse
1. Protection: The fuse protects the solar panels and the system from overcurrent, short-circuiting, and other electrical faults. It can prevent damage to the panels, inverter, and other components of the system.
2 Durability: The size of the fuse is large, which can improve its durability and lifespan. It is less likely to fail due to environmental factors such as high temperatures, humidity, and corrosion.
3. Efficiency: The fuse has a low resistance, which means it can allow more current to pass through without significant energy loss. This can improve the efficiency of the system and the output of the solar panels.
4. Compatibility: The 10x38mm size is a standard size for solar PV photovoltaic fuses, which means it is compatible with many different solar energy systems and components.
Product Parameter
| Product name: | 10x38mm PV Fuse | Size: | 10 mm x 38 mm (3/8" x 1-1/2") |
|
Rated Voltage: |
1000V DC | Rated Current: | 1A-30A |
|
Caps:
|
Copper | Body: | Ceramic |
| Type: | Photovoltaic Fuses | Time Constant: | 1-3ms |
| Breaking Capacity: | 10kA 33kA | Application: | Solar Panel Applications |
Specifications
|
Part No |
Rated Voltage DC |
Rated Current |
Breaking Capacity DC |
Energy Integrals I2t (A2 S) Pre‐Arcing |
Energy Integrals I2t (A2 S) Total at 1000V |
PowerLoss (W) 0.8In |
Power Loss (W) 1.0In |
|
PV1000.1A |
1000V |
1A |
|
0.15 |
0.4 |
0.8 |
1.5 |
|
PV1000.2A |
1000V |
2A |
|
1.3 |
3.4 |
0.7 |
1.1 |
|
PV1000.3A |
1000V |
3A |
|
4 |
12 |
0.8 |
1.3 |
|
PV1000.3.5A |
1000V |
3.5A |
|
6.5 |
20 |
0.9 |
1.4 |
|
PV1000.4A |
1000V |
4A |
UL 10kA |
10 |
28 |
1.1 |
1.4 |
|
PV1000.5A |
1000V |
5A |
IEC 33kA |
19 |
50 |
1.1 |
1.4 |
|
PV1000.6A |
1000V |
6A |
Time Constant |
32 |
93 |
1.2 |
1.8 |
|
PV1000.8A |
1000V |
8A |
1‐3ms |
3.2 |
33 |
1.2 |
2.2 |
|
PV1000.10A |
1000V |
10A |
|
30 |
70 |
1.3 |
2.3 |
|
PV1000.12A |
1000V |
12A |
|
98 |
150 |
1.5 |
2.8 |
|
PV1000.15A |
1000V |
15A |
|
149 |
230 |
1.8 |
3 |
|
PV1000.20A* |
1000V |
20A |
|
229 |
330 |
2.4 |
3.6 |
|
PV1000.25A* |
1000V |
25A |
|
411 |
500 |
2.6 |
3.7 |
|
PV1000.30A* |
1000V |
30A |
|
858 |
950 |
3.4 |
4.9 |
Products Dimension
Fuse Holder Type
Fuse Clip
Fuse Box
Fuse Holder
Products Application
1. PV String Protection: The 10*38mm fuse can be used to protect the PV strings, which are a series of PV modules connected together to form a larger circuit. The fuse helps to prevent the strings from overheating and causing a fire in the event of a fault.
2. Combiner Box Protection: The 10*38mm fuse can be used to protect the combiner box, which is where the individual PV strings are combined and then connected to the inverter. The fuse helps to prevent the combiner box from overheating and causing a fire in the event of a fault.
3. Charge Controller Protection: The 10*38mm fuse can be used to protect the charge controller, which regulates the charging of the batteries in an off-grid PV system. The fuse helps to prevent the charge controller from being damaged due to overcurrent or short circuit conditions.
4. DC Disconnect Protection: The 10*38mm fuse can be used to protect the DC disconnect switch, which is used to turn off the DC power from the PV array. The fuse helps to prevent the switch from being damaged due to overcurrent or short circuit conditions.
5. Inverter Protection: The 10*38mm fuse can be used to protect the inverter, which converts the DC power generated by the PV modules into AC power that can be used by household appliances. The fuse helps to prevent the inverter from being damaged due to overcurrent or short circuit conditions.
Overall, the 10*38mm fusible solar PV photovoltaic fuse is an important component in a PV system, helping to ensure its safe and reliable operation. By protecting against overcurrent and short circuit conditions, the fuse helps to prevent damage to the system and reduce the risk of safety hazards.
