Name: China E516 20A 40A 50A Manual Auto Reset T1 T3 Stud Type Circuit Breaker 12V 14V 24V DC Manufacturers Suppliers Factory
Brand: Senreach
SKU: 307275485

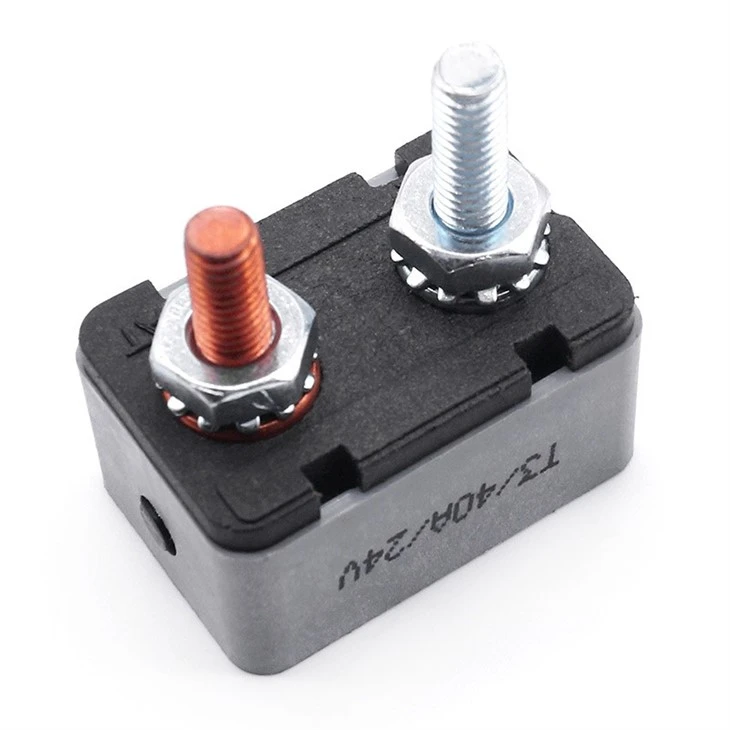

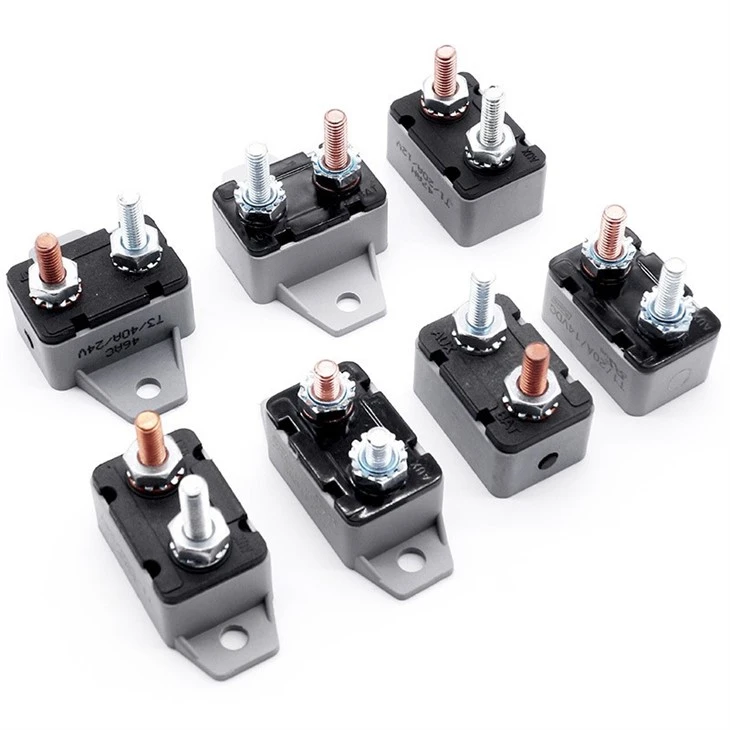

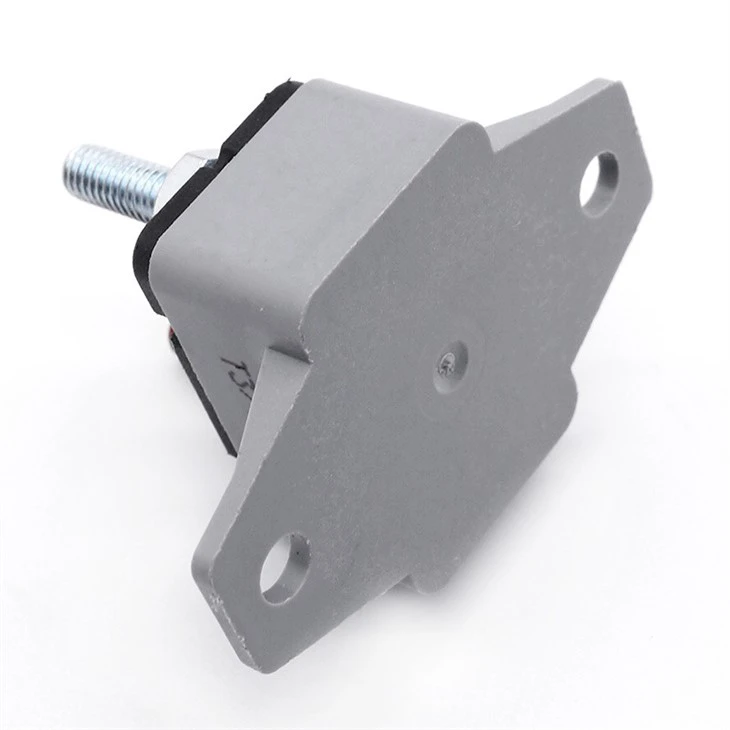

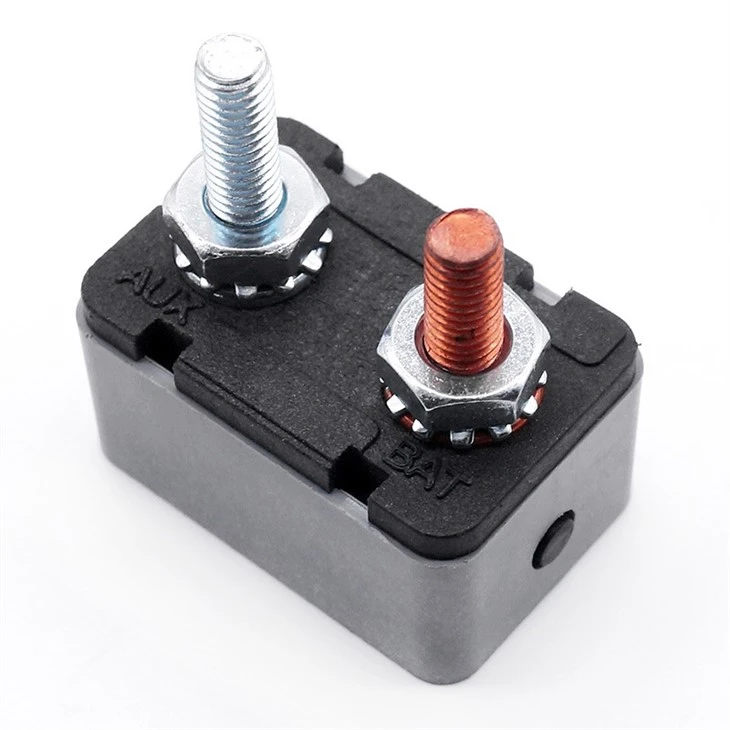

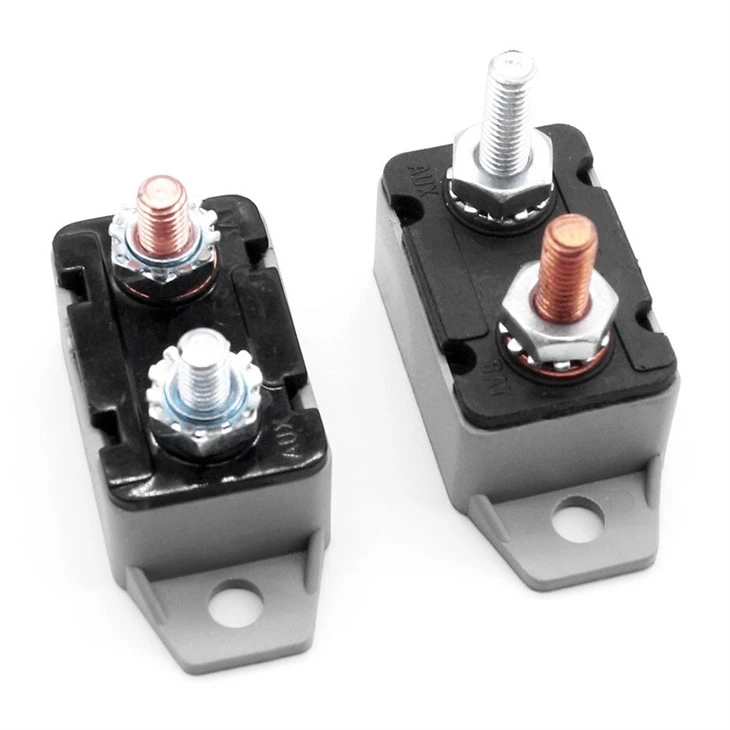

The Description of E536 E537 E538 20A 40A 50A Manual Auto Reset T1 T3 Stud Type Circuit Breaker 12V 14V 24V DC Right Angle Mount with Mounting Bracket for Marine Boat

20A-40A-50A-Manual-Auto-Reset-T1-T3-Circuit-Breaker-12V-14V-24-DC-Right-Angle-Mount-with-Mounting-Bracket-Marine-Boat-2

E536 E537 E538 20A 40A 50A Manual Auto Reset T1 T3 Stud Type Circuit Breaker 12V 14V 24V DC Right Angle Mount with Mounting Bracket for Marine Boat

•DC CIRCUIT BREAKERS
•POWER BREAKER
•MAIN BREAKER

-Applied to solar system, inverter, new energy vehicles, trucks, forklift and other devices.

-The circuit breaker uses temperature control and reset arm to achieve the reusable function, enables the breaker to play the
same role as switches.

E5-Series-Breaker-1

1. Automotive circuit breakers provide continuous protection during an overcurrent. This is specific to DC applications. An auto-reset circuit breaker continues to cycle until the overcurrent is both found and corrected.
2. The 12 28 volt canned breakers are available from 5-50 amps. The automotive circuit breakers are available with brackets or without bracket, in a metal or plastic housing.
3. The 12V 28V circuit breakers are stud mount and single pole. With these characteristics, the 12 volt circuit breaker is referred to as a type 1 circuit breaker.
4. Constructed with internal composite alloy material to deflect and separate the contacts when an overcurrent situation occurs and return to the run mode as it cools.
5. This automotive circuit breaker can be used in a variety of applications including trucks, buses, or other vehicles. This automotive circuit breaker is useful in welding applications, power outlet strips, portable generators, and trolling motors.

Product Name	E536 E537 E538 Manual Auto Reset Stud Type Circuit Breaker	Model Number	E536 E537 E538 Manual Auto Reset Circuit Breaker
Type	Metal Cabinet Overload Protector Stud Type Circuit Breaker	Reset Type	Auto Automatic Resettable
Rated Voltage	12V 14V 24V 28V DC	Rated Current	5A-50A (5A 10A 15A 20A 25A 30A 40A 45A 50A)
Material	Black UL-Rated thermoplastic body	Terminals Material	Tin-plated Copper alloy terminals
Shape	Blade Type	Ingress Protection Rating	IP66 On plastic cover version only (except for terminals)
Termination	#10-32 thread and quick-connect options available	Operating Temperature Rating	-40°F (-40°C) to 185°F (85°C)
Compliances	SAE J553; SAE J1171(ignition protected)	Application	Battery chargers, trucks, buses, RV's, trolling motors, etc

E5-Series-Breaker-2

exterior-shape-dimensions

20A-40A-50A-Manual-Auto-Reset-T1-T3-Circuit-Breaker-12V-14V-24-DC-Right-Angle-Mount-with-Mounting-Bracket-Marine-Boat-4

20A-40A-50A-Manual-Auto-Reset-T1-T3-Circuit-Breaker-12V-14V-24-DC-Right-Angle-Mount-with-Mounting-Bracket-Marine-Boat-6

E5-Series-Breaker-3

fuse-holder-application

This E536 E537 E538 Automotive Bimetal Circuit Breaker Circuit Breaker is used in automotive industry, electrical products, winches, DC power supplies, DC sound amplifier system, electric vehicles, chargers, motors, boat, marine, RV Yacht, trailer, bus, truck, ATV and other.

Auto fuse application
