E5 series circuit breakers are divided into 4 types, metal cabinet auto reset type, metal cabinet modified reset type, plastic cabinet auto reset type and plastic cabinet manual reset ttpe. This page is for metal cabinet auto reset type. We have 3 models for metal cabinet automatic reset type circuit breaker, E511, E512 and E513.

Product introduction

E511, E512 and E513 belong to Type 1, automatic reset type circuit breaker. Cabinet is made of metal. E511 is stud mount type. E512 is horizontal bracket mount while E513 is vertical bracket mount type. The overcurrent circuit breaker is a bimetallic structure that can quickly shut down the electric vehicle's circuit when it becomes overloaded to protect the entire circuit.

123

Application

E5 series single pole thermal type breakers can be appiled to equipments andproducts of 5-50A, 12-28V DC.

Automatic reset stud type circuit breaker is typically used in battery chargers, marine, trucks, buses, RV’s, trolling motors, etc.

Products parameters

Product name:	Automatic reset stud type circuit breaker	Model no.:	E511, E512, E513
Rated voltage:	12-28V DC	Rated current:	5A-50A
Reset Type:	Automatic Reset	Number of poles:	Single Pole, Normal closed
Case:	Metal(gold)	Mounting:	Stud Mount(E511), Bracket Mount(E512, E513)
Function Type:	Thermal Trip-free, Cycling	Termination:	10-32 Thread and quick-connect options available
Calibrarion@25℃:	100% hold, 135% Trip(percent of rating)	Interrupting capacity:	Branch circuit protection: 2,500A@12Vdc
Resetable overload capacity:	10 times rated current	Bolt torque rating:	>24 in-lb(2.7Nm)max
Operating temperature range:	-40℃ ~85℃	Mounting torque rating:	30 in-lb(3.4Nm) max

circuit breaker 2

Products Dimension

ps33887955-12v28vdc50ampautomotivecircuitbreakerautoresetmetalcabinetstud

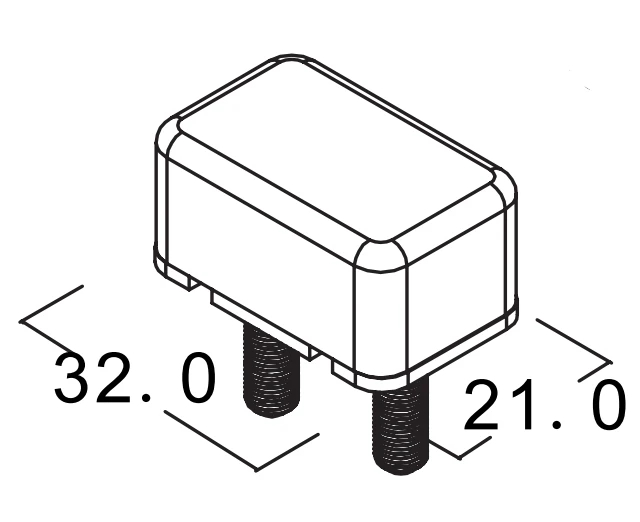

E11 Auto Reset Stud Tupe Circuit Breaker

20230215111907

E12 Horizontal Bracket Circuit Breaker

circuit breaker

E13 Vertical Bracket Circuit Breaker

circuitbreaker

Product Appliance

circuit breaker appliance

Installation Notice

circuit breaker installation 1

Installation notice:

The silver column (AUX) represents going in and the copper column (BAT) represents going out. They only protect 1 way. The studs are labeled for battery and source. The gold stud is the battery stud.

Be aware that the two threaded studs of the circuit breaker cannot touch metal. The studs are carrying battery voltage and must be insulated from anything conductive including the metal fender.

circuit breaker installation

E511, E512 and E513 circuit breakers are Type 1, Auto reset breakers. The automatic reset means that the breaker self-resets without any help from users.

So breakers will provide continuous protection until the overcurrent is found and corrected. Then it automatically resets.

The breaker will trip (disconnect the power) when it detects the overload current. It will self-reset.

Our factory

Dongguan Senreach Electronics Co., Ltd, founded in 2011, is a professional circuit protection components manufacturer and programme supplier in China. We have 20 years' experience in manufacturing fuse, fuse holder, circuit breaker, thermal protector, ntc sensor and etc.

With variety of advanced manufacturing and testing equipments, we adpot perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.

We are specialized in developing, manufacturing and selling circuit protection components for over-current, over-temperature and over-voltage applications with kinds of performance, types and specifications. Our products are widely used in consumer electronics, automobiles, vessels, communication device, power supply, new energy, photovoltaic and other fields.
