Product Description

There are 3 models for plastic cabinet manual reset type circuit breaker. They are E536, E537 and E538, one of the members of 10-32 stud circuit breaker, which is widly used in vehicle, marine, battery chargers etc. This series are heavy duty circuit breakers from 5A to 50A and can be applied to 6-28V DC applications.

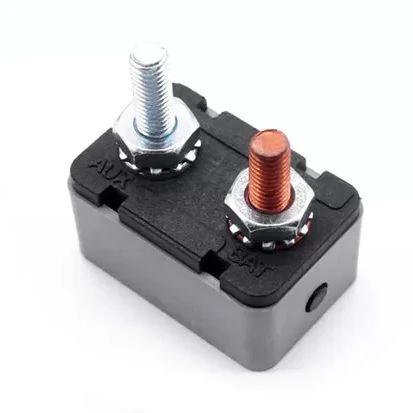

Manual reset circuit breaker is differnt from auto reset type, not only the working principle, but also the exterior appearance. There's a small round black button on the side of copper column which is the battery stud. This button will pop out as soon as the breaker detects overload or short circuit conditions. It requires manually push the button to reset the circuit.

1271

Product introduction

E536, E537 and E538 belong to Type Ⅲ manual reset stud circuit breaker. The cabinet is made of plastic.

E536 is a stud mounting type. E537 is a horizontal mounting bracket, and E538 is a parallel mounting bracket.

Unlike automatic reset circuit breakers, which reset themselves after the fault condition is resolved, manual reset circuit breakers require human intervention to restore power. Once the overcurrent event is detected and the circuit breaker trips, it needs to be manually reset by the user to resume normal operation.

1111

These circuit breakers are often designed with a threaded stud that allows them to be securely mounted to a panel or surface. The stud provides a mechanical connection and ensures the circuit breaker remains in place, even in environments with vibrations or movement.

Manual reset stud-type circuit breakers are used in various applications, including automotive, marine, recreational vehicles (RVs), battery chargers, industrial equipment, and more. They are well-suited for applications where safety and control are crucial and where it's important to prevent automatic reconnection without human verification.

Product Data

Product name:	Manual Reset Type Ⅲ Circuit Breaker	Model no.:	E536, E537, E538
Rated voltage:	28V DC	Rated current:	5A-50A
Reset Type:	Manual Reset, type Ⅲ	Number of poles:	Single Pole
Case:	Plastic	Mounting:	Stud Mount(E536), Bracket Mount(E537, E538)
Function Type:	Thermal Trip	Termination:	10-32 Thread
Calibrarion@25℃:	100% hold, 135% Trip(percent of rating)	Interrupting capacity:	Branch circuit protection: 2,500A@12Vdc
Materials:	Black UL-Rated thermoplastic body	Branch circuit protection:	2.5kA@12VDC
Operating temperature rating:	-40℉（-40℃ ) to 185℉(85℃)	Storage temperature rating:	-40℉（-40℃ ) to 260℉(125℃)
Mounting torque rating:	30 in-lb(3.4Nm) max	Bolt torque rating:	>24 in-lb(2.7Nm)max
Ingress protection rating:	IP66 for plastic cover -15-in-Ibs(1.7N*m)	Interrupt capacity:	28Vdc X 1000A
Marking:	Standard marking includes amp ratings and part numbers. Customized marking is available.

Temperature Derating Curves

temperature derating curse

Typical Resistance VS. Current Rating @ +25℃
Current Rating in Amps	Typical Resistance	Current Rating in Amps	Typical Resistance
5.0	0.052	20.0	0.012
6.0	0.042	25.0	0.010
7.0	0.036	30.0	0.008
8.0	0.031	35.0	0.007
10.0	0.025	40.0	0.006
12.0	0.021	50.0	0.006
15.0	0.017	60.0	0.005

Capacity Corrention Factors For Ambient Temperatures
Current Rating amps	Temperature
	℉	+14	+32	+50	+68	+77	+86	+104	+122	+140
	℃	-10	+0	+10	+20	+25	+30	+40	+50	+60
5 to 60A		X1.60	X1.46	X1.35	X1.10	X1.00	X0.92	×0.82	X0.70	X0.57

Product Dimension

manualresetcircuitbreaker

E536 Manual Reset Stud Circuit Breaker

circuit breaker dimension 3

manualresetcircuitbreaker

E537 Horizontal Bracket Circuit Breaker

circuit breaker dimension 1

manualresetcircuitbreaker

E538 Parallel Bracket Circuit Breaker

circuit breaker dimension

Remark: dimensions are for reference only. Please consult sales for latest data. coco@senreach.com

Installation Notice

8c70d6fe-f160-4208-a03f-c4d6e843c181CR00300300PT0SX300V1

Studs Illustration

The silver column (AUX) indicates in and the copper column (BAT) indicates out. They only protect one way. The bolt has a battery and power label. The gold studs are battery studs.

21f57b85-3db6-4330-8c7f-1755904daf5cCR00300300PT0SX300V1

Multiple Wiring Configuration

You can connect the wire in different directions according to oractical condition. And the fuse cover also offers multiple directions.

9409a3d6-88a4-4053-8ace-048f8e0d7d05CR00300300PT0SX300V1

Stop Searching for Fuses

Compare with car fuses, the greatest advantage of circuit breaker is it is resetable and no need to replace fuses after the fault. The only thing you need to do is to reset the circuit breaker manually.

Practical Installtion Cases

circuit breaker installation

Fuse Cover Recommendation

Advantages with the Cover

never worry about fuse burn-out
durable and waterproof
reliable plastic rustproof housing, can well protect the internal circuit breaker.
Safe and practical to use
the red protective cover avoid electrical shorts and corrosion

b6e7795a-2bfb-4e32-8a42-3008ea53621aCR00970600PT0SX970V1

Application Case

Manual reset stud type circuit breaker is typically used in automotive, electromechanical equipment, vehicle, marine, off-road and other vehicles, yachts and ships, truck applications, battery chargers, car engines electrical control etc.
