Products Desc.

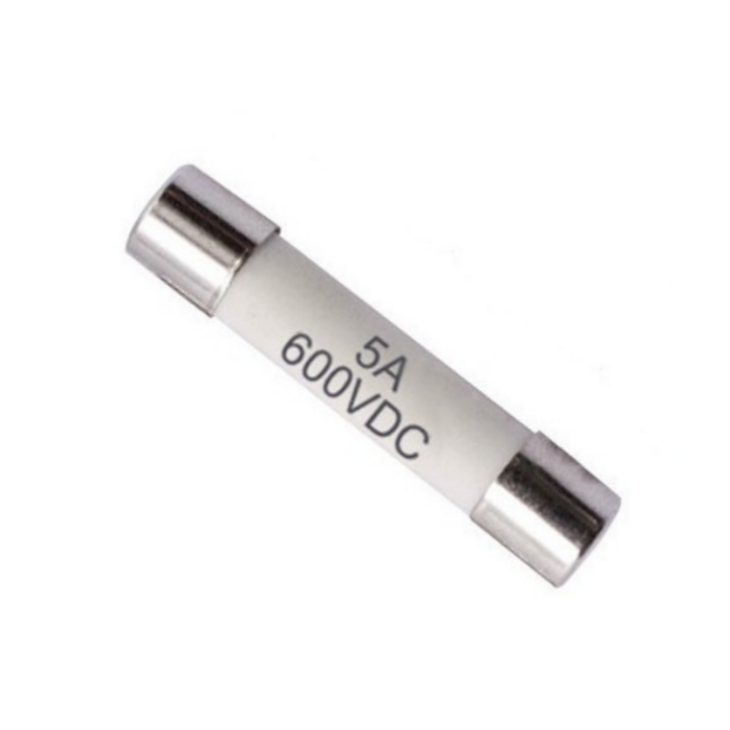

A 600V 6.35 x 32 mm Fast Blow Action Fuse is an electrical safety device used to protect electronic circuits and electrical equipment from overcurrent conditions.
Features of 6.35x32mm HV Fuse
1. Voltage Rating: The fuse is rated for a maximum voltage of 600 volts. This means it can handle electrical systems and circuits with a voltage up to 600 volts.
2. Physical Size: The fuse's dimensions are 6.35 x 32 mm. The first number, 6.35 mm, refers to the diameter of the fuse, while the second number, 32 mm, indicates its length. These dimensions are standard and designed to fit into compatible fuse holders and fuse blocks.
3. Fast Blow Action: It is designed to blow quickly when subjected to an overcurrent condition, protecting the circuit or equipment by interrupting the flow of current before damage occurs. Fast-acting fuses are used in applications where the current spikes are brief and need to be interrupted rapidly to prevent damage.
4. Breaking Capacity: The fuse should have a specified breaking capacity, which indicates the maximum current it can safely interrupt without causing harm. For example, if the breaking capacity is 10,000 amps, the fuse can interrupt currents up to 10,000 amps without failing.
Product Parameter
| Product name: | 600V 6.35 X 32 mm Fast Blow Action Fuse | Size: | 6 mm x 30 mm, 6.35 x 32 mm |
|
Rated Voltage: |
600V | Rated Current: | 100mA To 30A |
|
Caps:
|
Copper | Body: | Ceramic |
| Type: | Fast-acting | Standard: | UL 248 -1 / -14 |
| Breaking Capacity: |
10kA |
Application: | Over-current Protection |
Products Details
Products Application
1. Power Supplies: In electronic devices that use power supplies, such as computers, televisions, audio equipment, and other consumer electronics, the fast blow action fuse protects the power circuits from excessive current. It safeguards the sensitive components in the power supply and prevents damage due to overcurrent conditions.
2. Motor Protection: Electric motors in appliances, industrial machinery, pumps, and HVAC systems can experience overcurrent situations due to various factors like mechanical faults or voltage fluctuations. The fast-acting fuse protects the motor windings from burning out and ensures the motor's safety during such incidents.
3. Industrial Equipment: In industrial settings, numerous machines and equipment are susceptible to overcurrent issues. Fuses are commonly employed to safeguard these devices from damage, ensuring the smooth operation of the industrial processes.
4. Automotive Applications: In automotive circuits, fuses protect electrical components like lights, ignition systems, audio systems, and other electronic modules from overcurrent conditions. They are often found in automotive fuse boxes to provide circuit protection.
5. Renewable Energy Systems: Solar panels, wind turbines, and other renewable energy systems can experience fluctuations in current due to changing weather conditions. Fuses protect the system components from damage caused by overcurrent during such events.
6. Power Distribution Panels: In electrical distribution panels, where power is distributed to various circuits, fuses offer protection to individual circuits. They ensure that an overcurrent in one circuit does not affect the entire distribution system.
7. Medical Equipment: Various medical devices and equipment require reliable protection against overcurrent situations to ensure patient safety and uninterrupted operation. Fuses play a crucial role in maintaining the safety of these medical systems.
Factory Tour
Founded in 2011, Dongguan Senreach Electronics Co., Ltd. is a professional circuit protection component manufacturer and solution supplier in China. We have 20 years of experience in manufacturing fuses, fuse holders, circuit breakers, thermal protectors, ntc sensors, etc.
We have a variety of advanced manufacturing and testing equipment. With the adoption of excellent quality management system, we make sure that each of our components are safe and stable. Senreach has passed ISO9001:2000 quality management system certification, and its products meet international standards including UL, UR, CSA, BSI, CUL, VDE, TUV, PSE, CE, CCC, ROHS certification etc.
We specialize in developing, manufacturing and selling over current, over temperature and over voltage circuit protection components of various properties, types and specifications. Products are widely used in consumer electronics, automobiles, ships, communication devices, power supplies, new energy, photovoltaic and other fields.
