Products Desc.
A 6-way waterproof blade fuse block is an electrical component designed to manage and protect electrical circuits in various applications while offering waterproof and dustproof features.
The fuse block with below features provides a reliable solution for managing and protecting electrical circuits in various environments. Its cable connection options, transparent cover, compatibility with middle-sized blade fuses, ease of installation, and use of high-quality materials make it a practical choice for automotive and other applications where waterproofing and circuit protection are essential.
Features of 6 way Waterproof Blade Fuse Block
1. Cable Connection: The fuse block allows for cable connection via the sides using plated 6.3mm blade terminals. This standard blade terminal size ensures compatibility with a wide range of wiring configurations, making it easier to connect and disconnect cables securely.
2. Transparent Cover: The fuse block comes equipped with a transparent cover that serves as protection against dust and moisture. The transparent cover allows for easy visual inspection of the fuses and circuits without needing to remove the cover, ensuring that the fuses are intact and functional.
3. Fuse Compatibility: This automotive fuse box is designed to accommodate middle-sized blade fuses. Middle-sized blade fuses are commonly used in vehicles and other applications, offering a balance between current capacity and space efficiency.
4. Mounting Holes and Installation: The fuse block is designed with two mounting holes and is equipped with two screws for easy installation. This feature simplifies the process of securing the fuse block to a suitable surface, ensuring stability and proper positioning.
5. Material and Conductivity: The fuse block is constructed using tin-plated copper components. The tin-plating offers several advantages, including non-toxic and tasteless properties, corrosion resistance, and excellent electrical conductivity. These characteristics contribute to the overall durability and performance of the fuse block.
Product Parameter
| Product name: | 6 Way Waterproof Blade Fuse Block | Type: | Fuse Holder/Fuse Block/Fuse Box |
|
Rated Voltage: |
32V DC | Output Rated Current: | 30A Max per circuit |
| Fuse Size: | ATO ATC Standard Blade Fuse | Size: | 115.5x53x42mm |
| Material: | PA, Copper Material | Ways: | 6 ways |
| Mode Of Connection: | 6 Input 6 Output | Net Weight: | 115G |
Product Detail

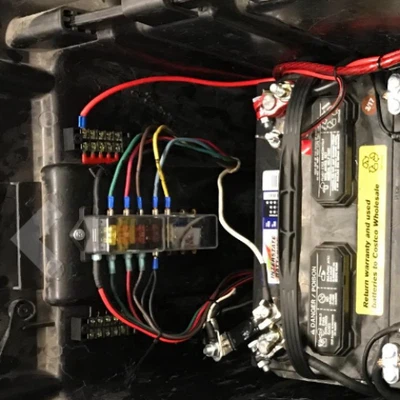

How to Install
1. Choose Mounting Location: Select a suitable location to mount the fuse block. It should be easily accessible and positioned where the wiring connections can be made conveniently. Ensure that the mounting surface is sturdy and can support the weight of the fuse block.
2. Position the Fuse Block: Hold the fuse block against the chosen mounting surface. Align the mounting holes on the fuse block with the mounting surface.
3. Mark Hole Locations: Use a pen or marker to mark the locations of the mounting holes on the mounting surface. This will serve as a guide for drilling or screwing.
4. Secure Mounting Screws: If the fuse block comes with mounting screws, insert them through the marked holes on the mounting surface. If not, you may need to drill appropriate holes for the screws. Secure the screws in place but leave them slightly loose for adjustment.
5. Connect Wires: Prepare the wires that will connect to the fuse block. Strip the ends of the wires to expose the conductor. Insert the stripped ends into the appropriate side cable connections on the fuse block. These connections are typically designed to accommodate 6.3mm blade terminals.
6. Tighten Cable Connections: Once the wires are inserted into the cable connections, use a screwdriver to tighten the connections. This will ensure a secure and reliable electrical connection.
7. Insert Fuses: Depending on your application, insert the middle-sized blade fuses into the fuse slots on the fuse block. Make sure to match the correct fuse rating for each circuit to prevent overloading.
8. Close Transparent Cover: If the fuse block comes with a transparent cover, place it over the fuse block to protect the fuses and wiring connections from dust and moisture. The cover should securely snap into place.
9. Finalize Mounting: Ensure that the fuse block is properly aligned and positioned on the mounting surface. Tighten the mounting screws to securely attach the fuse block to the surface.
Application Senario
1. Automotive Wiring Hub: In vehicles, the fuse block could serve as a centralized hub for managing and protecting electrical circuits. It could distribute power to various components such as headlights, taillights, interior lighting, windshield wipers, and other accessories.
2. Marine Electronics Panel: On boats and other watercraft, the waterproof feature of the fuse block makes it ideal for creating an electronics panel that distributes power to navigation systems, radios, lights, pumps, and other marine electronics.
3. Off-Road Vehicle Accessories: In off-road vehicles like ATVs, UTVs, and dirt bikes, the fuse block could be used to power and protect accessories such as LED light bars, winches, communication devices, and sound systems.
4. RV or Camper Power Management: For recreational vehicles and campers, the fuse block can manage the distribution of power to appliances, HVAC systems, lighting, entertainment systems, and charging stations.
5. Custom Motorcycle Wiring: Motorcycle enthusiasts can use the fuse block to organize and protect the electrical connections for custom lighting, audio systems, heated grips, and other aftermarket accessories.
6. Emergency Services Vehicles: Fire trucks, ambulances, and police vehicles could benefit from a well-organized fuse block to manage the electrical systems for emergency lights, sirens, communication devices, and medical equipment.
