Products Desc.

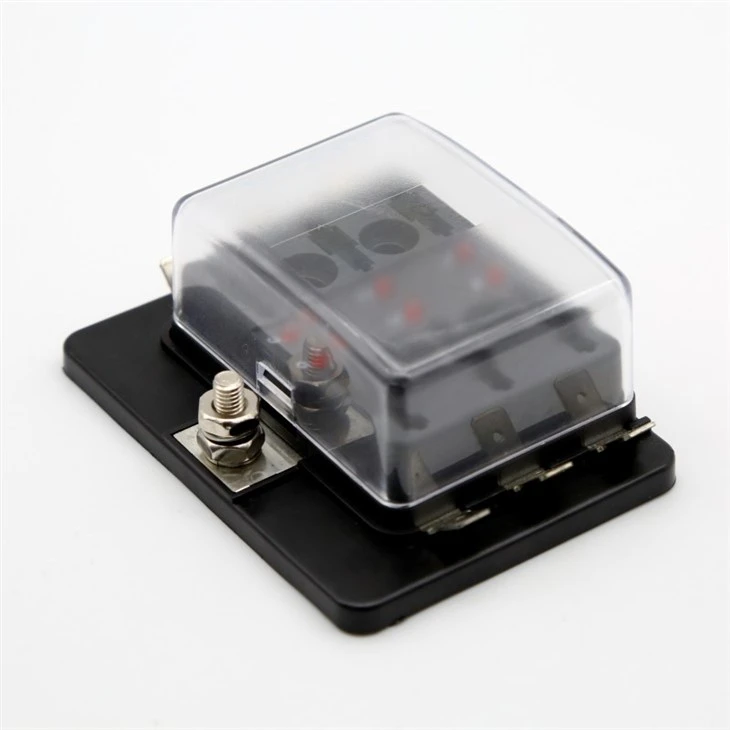

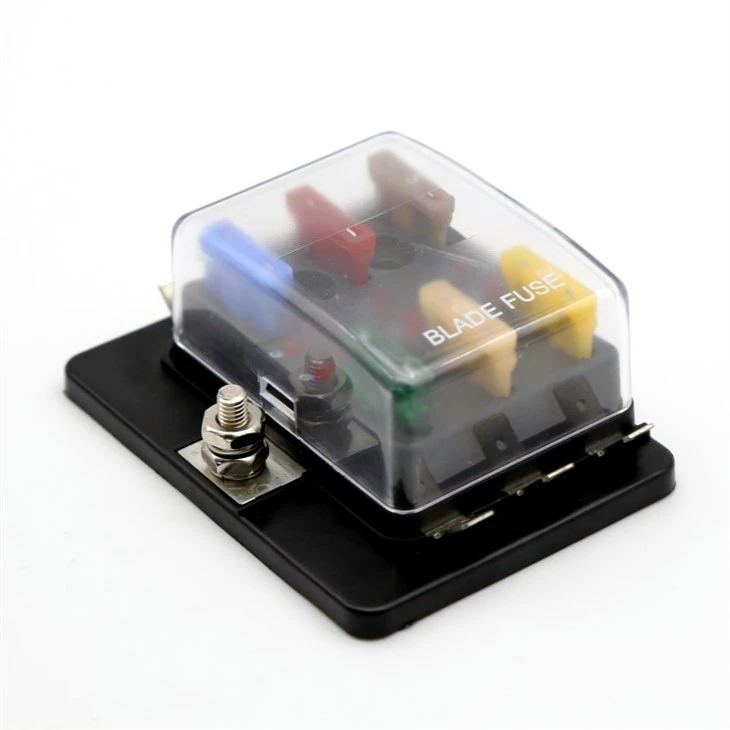

A 6 Way ATO ATC Blade Fuse Block with LED is a device designed to provide secure and organized connections for automotive ATC/ATO blade fuses. It helps protect electrical circuits from overloading and short circuits, preventing potential damage to your vehicle's electrical system.It finds extensive application in various automotive electrical systems. Its versatility and safety features make it a valuable component for ensuring proper electrical protection and functionality in different vehicles.
Features of 6-way Blade Fuse Block
1. ATC/ATO Fuse Compatibility: The holder is specifically designed for ATC (also known as ATO) blade fuses, which are the most common type of automotive fuses. These fuses have a standardized design, making them easy to replace.
2. Terminals: The fuse holder's terminals consist of 1/4" male quick disconnect terminals. These terminals are used to connect the fuse holder to the vehicle's wiring system. The male quick disconnect terminals make it easy to connect and disconnect the fuse holder without the need for additional tools.
3. LED Warning Light: Incorporated into the fuse holder is an LED warning light. The LED serves as an indicator to show whether a fuse has blown or if there's a fault in the circuit. When a fuse blows or experiences an overload, the LED will light up, alerting the user to the issue.
4. Cost-Effective Maintenance: By providing clear indications of blown fuses through the LED warning light, the fuse holder helps avoid unnecessary troubleshooting and diagnostic costs. Users can promptly replace the faulty fuse, restoring electrical functionality without the need for extensive troubleshooting.
Product Parameter
| Product name: | 6 Way ATO ATC Blade Fuse Block with LED | Type: | Fuse Holder/Fuse Block/Fuse Box |
|
Rated Voltage: |
32V DC | Output Rated Current: | 30A Max per circuit |
| Fuse Size: | Standard Blade Fuse | Input Rated Current: | 100A |
| Material: | PBT Base, PC Cover | Ways: | 6 ways |
| Screw: | Stainless Steel | Terminal: | Nickel Plated Copper |
Products Details
Mounting Options
The fuse holder features mounting holes or brackets, allowing it to be secured to a suitable location within the vehicle. This helps keep the holder stable and organized.
User-Friendly
The 1/4" male quick disconnect terminals simplify the installation and removal of the fuse holder. Users can easily connect and disconnect the holder without the need for specialized tools, reducing the risk of accidental damage during fuse replacement.
Easy Fuse Identification
The fuse holder's LED warning light indicates when a fuse has blown or is experiencing an issue. This feature makes it easy for users to identify the faulty fuse at a glance, allowing for quick replacement and minimal downtime.
How to Install
1. Select a Suitable Location: Choose a suitable location to mount the fuse holder inside your vehicle. It should be easily accessible for fuse replacement and away from direct sources of heat, water, or moving parts.
2. Prepare the Wires: Identify the wires that need to be protected and connected to the fuse holder. Typically, these are the power supply wires for various electrical components in your vehicle. Ensure that the wires are the correct gauge and appropriately sized for the circuits you're protecting.
3. Strip the Wire Ends: Strip a small portion (about 1/4 inch) of the insulation from the wire ends that will be connected to the fuse holder. If the wires don't have male quick disconnect terminals, you may need to crimp these terminals onto the wire ends.
4. Connect the Wires: Insert the stripped wire ends or the male quick disconnect terminals into the appropriate terminals on the fuse holder. Ensure a secure connection by tightening any screws or locking mechanisms on the terminals.
5. Install the Fuses: Insert the appropriate ATC/ATO blade fuses into the fuse slots of the holder. Make sure each fuse matches the amp rating required for the corresponding circuit.
6. Check LED Functionality: If the fuse holder has an LED warning light, test its functionality by turning on the vehicle's electrical system (ignition) without starting the engine. The LED should light up, indicating that the fuse holder is receiving power.
7. Mount the Fuse Holder: If the fuse holder comes with mounting holes or brackets, use screws to securely mount it to the chosen location in your vehicle.
8. Cover the Fuse Holder: If your fuse holder has a protection cover, place it over the fuse slots to shield the fuses from dust, moisture, and accidental contact.
9. Test the Circuits: Turn on the vehicle's electrical system and test each circuit to ensure they are functioning correctly. If any fuse blows or if the LED warning light indicates an issue, check and replace the faulty fuse as needed.
10. Secure and Organize Wiring: Secure and organize the wiring connected to the fuse holder, using zip ties or wiring looms to keep everything neat and tidy.
Products Application
1. Automotive Vehicles
2. Recreational Vehicles (RVs) 3. Marine Applications 4. Heavy-Duty Vehicles 6. Customized Builds 7. DIY Electronics Projects 8. Off-Road Vehicles
