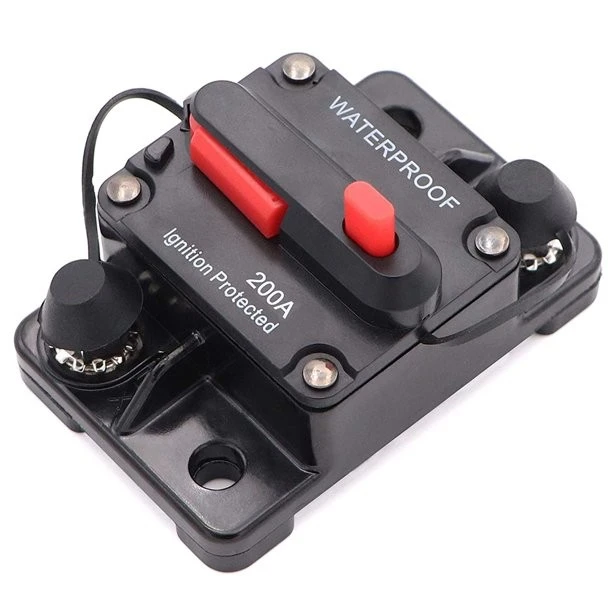

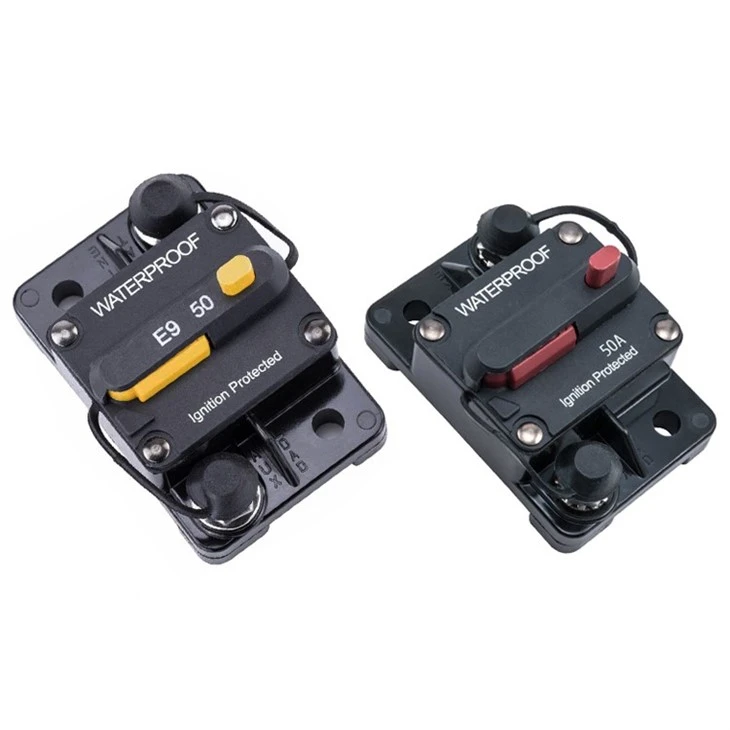

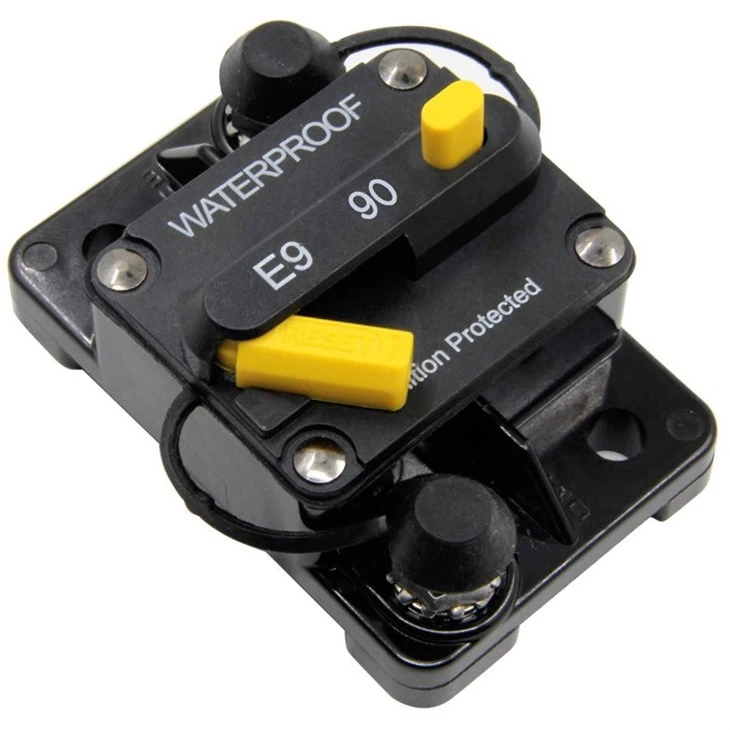

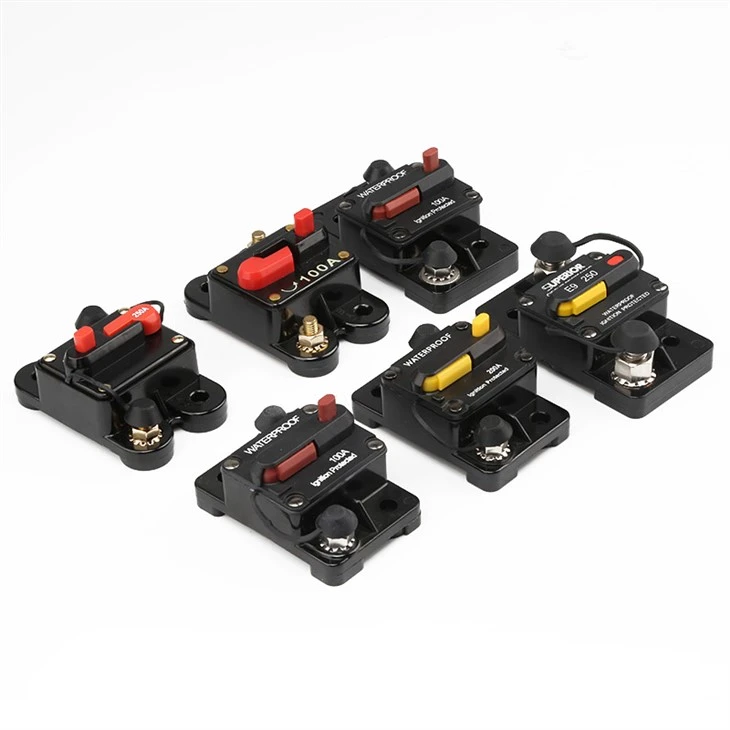

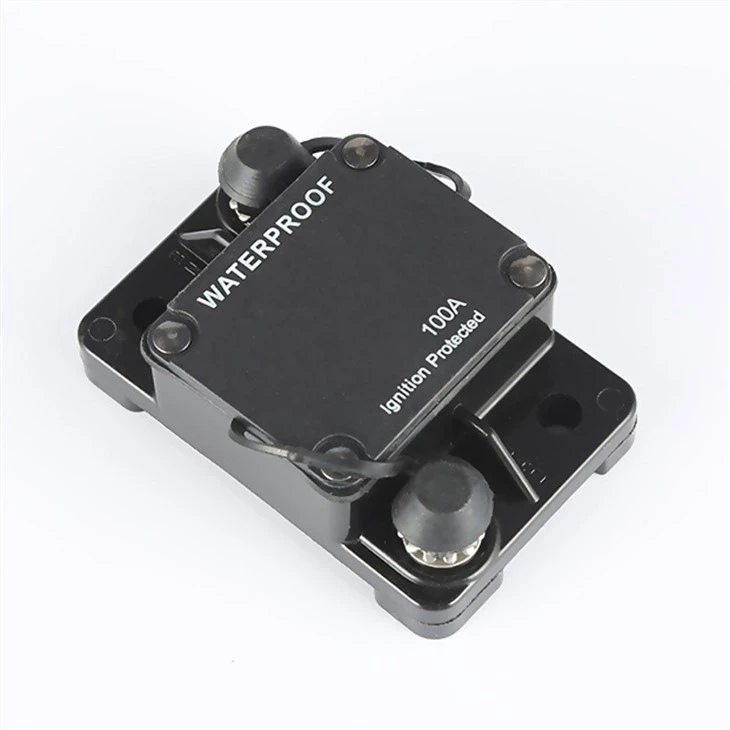

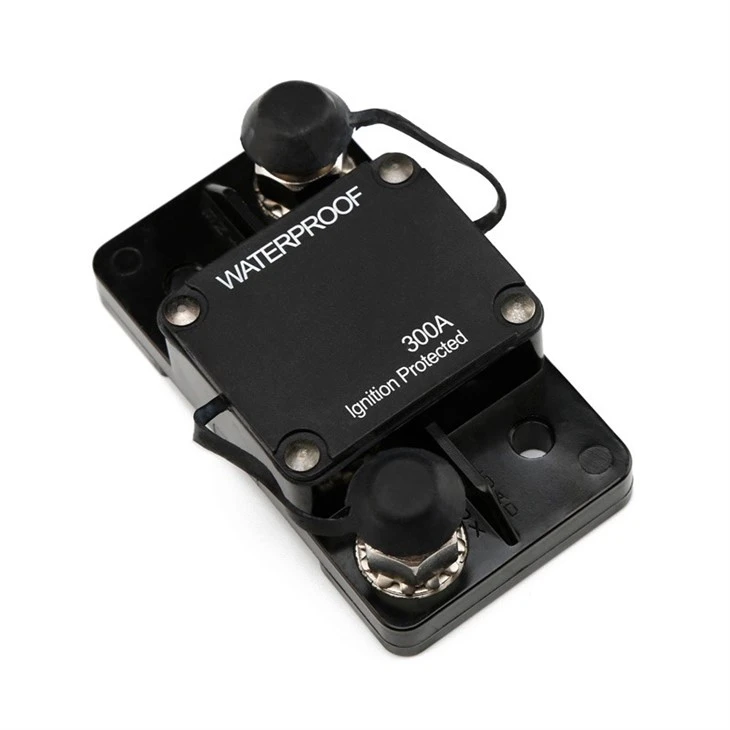

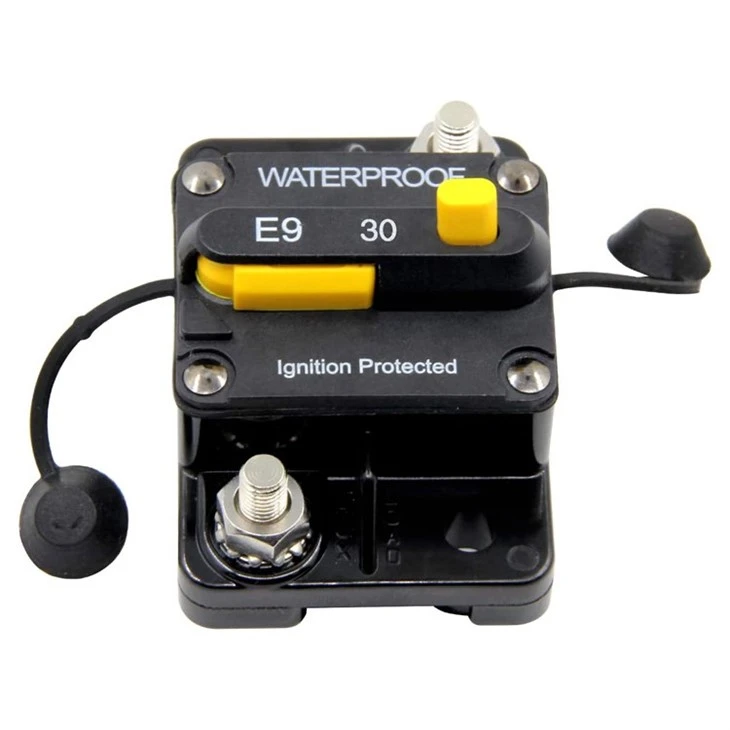

The Description of E9 Series E91 E92 E93 E97 E98 E99 48V Hi Amp Automatic Auto Circuit Breaker with Manual Reset Button for Car RV Electric Devices
E9 Series E91 E92 E93 E97 E98 E99 48V Hi Amp Automatic Auto Circuit Breaker with Manual Reset Button for Car RV Electric Devices
•DC CIRCUIT BREAKERS
•POWER BREAKER
•MAIN BREAKER
-Applied to solar system, inverter, new energy vehicles, trucks, forklift and other devices.
-The circuit breaker uses temperature control and reset arm to achieve the reusable function, enables the breaker to play the same role as switches.
- Circuit Protection: This kind of circuit breaker is designed to discontinue the flow of electricity. It works with good electrical conductivity, which is heat-resistant and pressure-proof. protect your equipment from unexpected high surges and excessive current.
- Easy to use: After disconnecting for a while, you can reset this switch, then you can press the reset switch to use it again.
- Electrically Trip-Free: Ignition unit turns off automatically when the current reaches cut-off value due to overload or short circuit.
- Manual Reset: Comes with a reset handle, simply push back to close the contacts and turn-on circuit after troubleshooting, eliminates the need to replace in-line fuses. The manual button can also be used as a kill switch.
- Surface Mount: Diagonal studs with protective insulator cap, weather resistant and dustproof, can be mounted on panel or firewall.
- Dustproof and Waterproof: Its dustproof and waterproof grade reaches IP67. It has a 94V-0 housing, lid and leve, protection even under temporary water immersion.
Product Parameter
| Product Name | Auto Circuit Breaker with Manual Reset Button for Electric Devices | Model Number |
E9 Series E91 E92 E93 E97 E98 E99 Circuit Breaker |
| Type | Manual/ Auto Reset Thermal Electrical Circuit Breaker | Reset Type | Manual Automatic Reset |
| Rating Voltage |
30V DC, 48V DC |
Rating Current |
25A 30A 35A 40A 50A 60A 70A 80A 90A 100A 110A 120A 130A 135A 140A 150A 175A 180A 200A 250A 300A |
| Material | Black UL-rated 94V0 thermoset plastic |
Studs Material |
Stainless Steel |
| Termination | 3/8''-16 Studs, 1/4''-28 Studs | Ingress Protection Rating |
IP67 Waterproof |
| Operating Temperature Rating | –25°F (–32°C) to 180°F (82°C) | Compliances | SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) |
| Feature | Bakelite has high mechanical strength, good insulation, corrosion resistance | Application | boats, RVs, ATVs, bused, railers, winches for amp protections, etc |
Product Details
Products Details
Installation:
Surface mount on panel or firewall, easy to use and durable, protective stud insulators included.
Way of working:
(1)Circuit break protection: When the current reaches the cut-off value, the long handle automatically bounces and cuts off the power supply. Generally, it trips in a short-circuit condition. After the fault is eliminated, press the long handle back to the original position to form a path.
(2) Manually cut off the power: We need to disconnect the circuit when refitting, and directly press the oval yellow button on the insurance. At this time, the long handle automatically pops up to cut off the power. Connect as above, and then press the long handle back to its original position.
(3)No need to replace the fuses, the system can be reset by a simple switch which also offers safe and instant system shut down.
Kindly Note:
1. Do not use as a switch where high inrush currents are expected
2. Do not push back reset lever before troubleshooting
3. Please allow 1-3cm differs due to manual measurement
E9 Series E91 E92 E93 E97 E98 E99 Circuit Breaker Dimension
More details
Fuse Holder Application
This E9 Series E94 E95 E96 Car Audio Stereo Amplifier Hi-Amp Circuit Breaker is mainly used for solar system, car audio and Amps protection in trucks, boat, RVs, ATV winches, marine, buses, RV etc; also used in battery charges, inverter and DC sound car audio system.
