Description

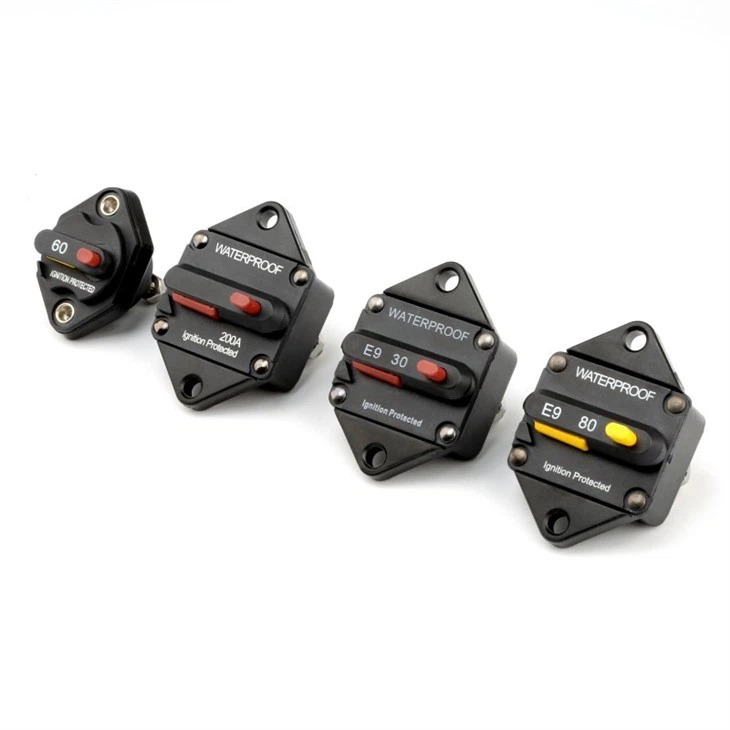

E94, E95, E96 are series of thermal circuit breakers produced by various manufacturers and commonly used in electronic and electrical applications. They are known for their auto-reset and manual-reset features, which provide overcurrent protection for sensitive components and circuits.

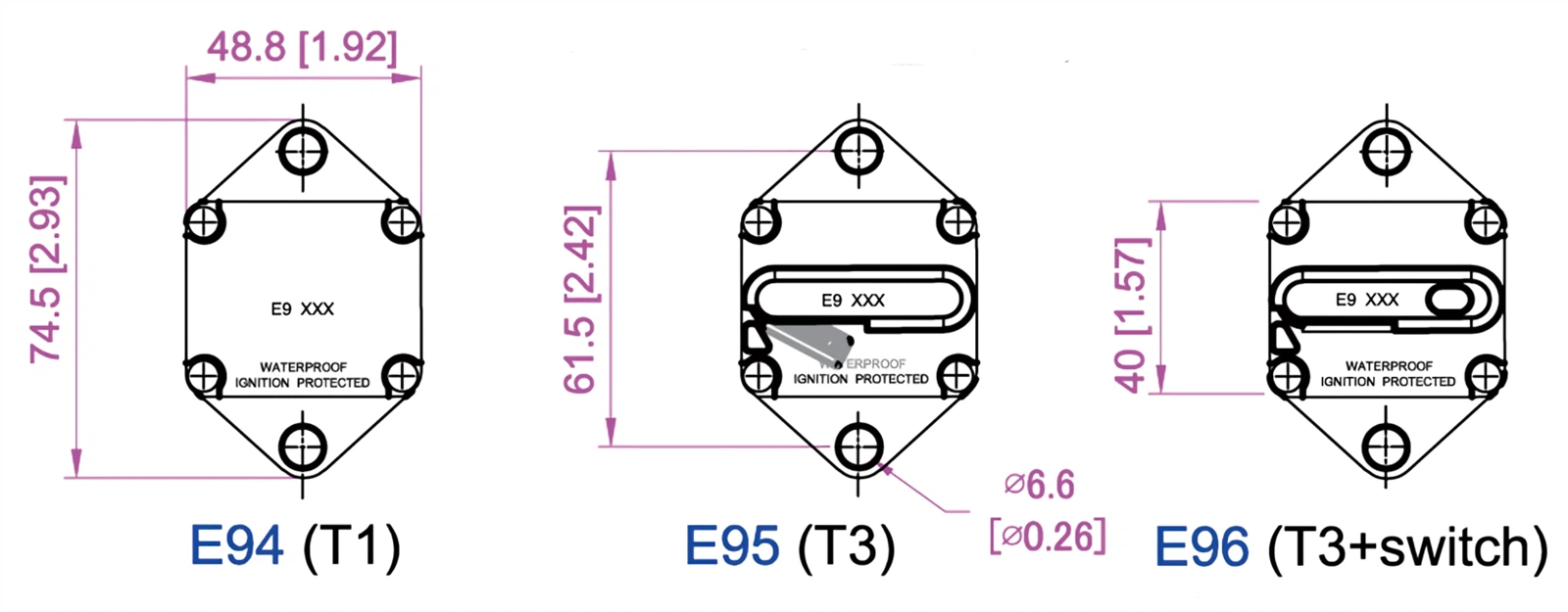

E94 Circuit Breaker
E94 circuit breakers are typically auto-reset circuit breakers. When an overcurrent condition occurs, such as a short circuit or excessive load, the breaker will trip and disconnect the circuit. After a brief cooling-off period, the breaker will automatically reset itself and allow the current to flow again. This automatic reset feature makes E94 circuit breakers suitable for applications where temporary overloads are expected.

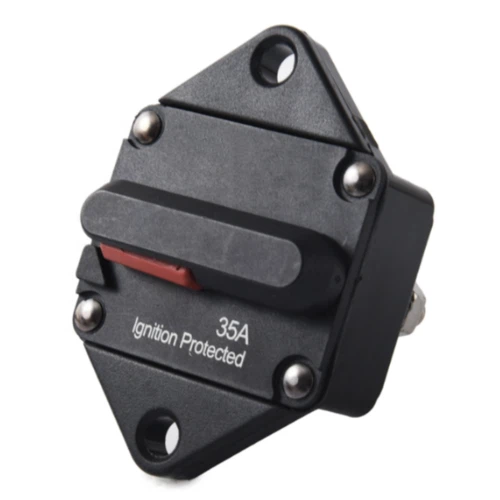

E95 Circuit Breaker

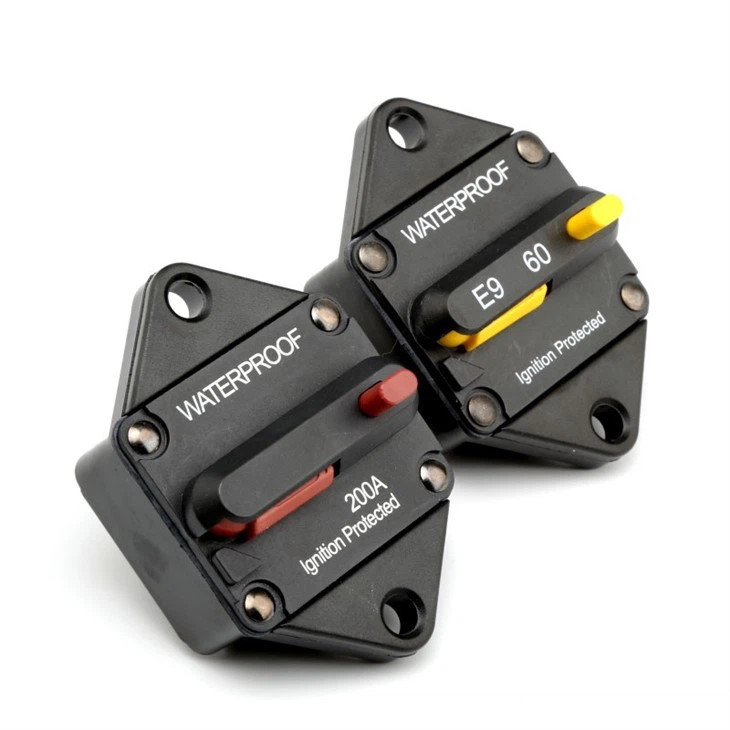

E95 circuit breakers are manual-reset circuit breakers. When an overcurrent condition triggers the breaker, it disconnects the circuit and remains in the tripped position until manually reset by the user. This manual reset requirement ensures that the circuit remains off until the user intervenes, which can be a safety feature in some applications.
E96 Circuit Breaker
E96 circuit breakers are a variation that can offer both auto-reset and manual-reset options in a single device. These breakers typically have a push-button or toggle switch that allows the user to choose between auto-reset and manual-reset modes. In the auto-reset mode, they function like E94 breakers, automatically resetting after tripping. In manual-reset mode, they behave like E95 breakers, requiring manual intervention to reset.
Parameter
| Product name: | E94 E95 E96 HI AMP Marine Circuit Breaker | Reset Type: | Manual reset |
|
Rated Voltage: |
DC12-48V | Rated Current: | 25A-250A |
| Hardware: | Zinc Alloy | Material: | Plastic and Metal |
| Pole: | Single Pole | Type: | Thermal Circuit Breaker |
| Interrupt Capacity: | 2,500A at 14Vdc / 1,500A at 48Vdc | Operating Temperature Rating: | –25°F (–32°C) to 180°F (82°C) |
| Ingress Protection Rating: | Ip67 | Storage Temperature Rating: | -34ºC (-30ºF) to 149ºC (300ºF) |
| Mounting: | Surface mounting | Packing: | Bubble bag |
Details
Application
E94, E95, and E96 circuit breakers have a wide range of applications in various industries where overcurrent protection is necessary. Their specific application will depend on the type (auto-reset, manual-reset, or dual-mode) and their electrical characteristics. Here are some common applications for these types of circuit breakers:
1. Automotive Applications: These circuit breakers are used in vehicles to protect various electrical circuits, such as lighting, motors, and accessories. Auto-reset circuit breakers (E94) can be used to protect circuits that may experience temporary overloads, while manual-reset (E95) breakers can be used for critical circuits like the engine control unit (ECU).
2. Electronics and Appliances: E94 circuit breakers are often found in consumer electronics and appliances where temporary overloads can occur. For example, they might be used in surge protectors, power strips, or computer power supplies. E95 circuit breakers may be used in appliances that require manual intervention to reset after a fault.
3. Industrial Machinery: These circuit breakers can be used in industrial equipment and machinery to protect motors, control circuits, and other electrical components. Auto-reset versions are suitable for non-critical circuits, while manual-reset versions may be used for critical safety circuits that should remain off until manually reset.
4. Marine and Recreational Vehicles: E94 and E95 circuit breakers are commonly used in boats and recreational vehicles to protect various electrical systems, including lighting, pumps, and auxiliary power sources.
5. Aerospace and Aviation: In aircraft and spacecraft, circuit breakers are used to protect critical systems and components. The choice between auto-reset and manual-reset versions depends on the specific application and safety requirements.
