Products Description
The Description of Factory Price Rectangle Strip Shape 220V PTC Thermistor Heating Element Constant Temperature Heating for Heater Electric Oven
Factory Price Rectangle Strip Shape 220V PTC Thermistor Heating Element Constant Temperature Heating for Heater Electric Oven
•Highly Accurate and Very Fast Response
•Tight Resistance and B-value Tolerances
•Various Insulated Lead-wire Options
-PTC constant temperature heater is a heating device designed by using constant temperature heating PTC thermistor constant
temperature heating characteristics.
-The PTC Heating element thermistor is suitable for a wide range of applications fields, such as curling iron, electric comb, Negative ion hair irons, massagers, mosquito machines, flood killers, flood repellents, etc.
1. Efficient Heat Dissipation: Suitable for a wide range of electrical equipment and circuit boards, providing efficient heat dissipation and thermal management.
2. Energy Saving: With self-regulating heating characteristics, PTC heaters automatically adjust their heating performance according to temperature changes, helping reduce energy consumption and improve energy efficiency.
3. Heat Retention and Insulation: Utilizing advanced thermal insulation technology, PTC heaters effectively retain heat and help maintain a stable operating temperature.
4. Self-Regulating Heating Performance: PTC heaters utilize the self-regulating heating properties of PTC thermistors. Compared with conventional heating elements in low- and medium-power applications, they offer constant-temperature heating, flame-free operation, high thermal efficiency, low sensitivity to power supply voltage fluctuations, and long service life.

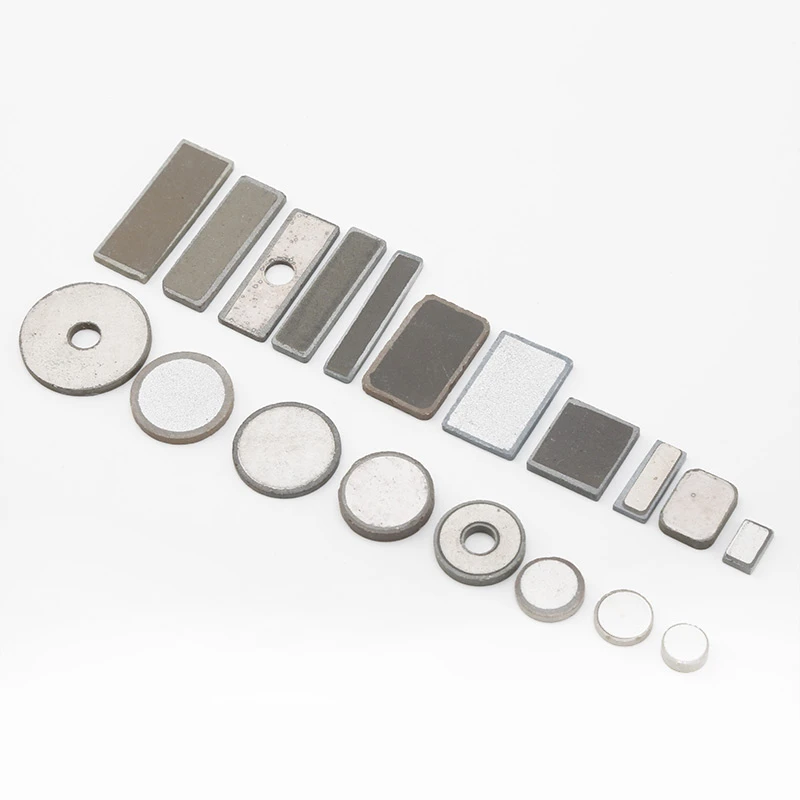

5. Various Shapes and Configurations: PTC heating thermistors are available in various shapes, structures, and specifications, including disc, rectangular, strip, ring, and honeycomb designs. Combined with metal components, these PTC heating elements can be assembled into different types of high-power PTC heaters to meet a wide range of heating requirements.
Product Parameter
|
Rated Zero-Power Resistance |
18Ω |
|
Temperature Coefficient |
Positive Temperature Coefficient(PTC) Thermistors |
|
Voltage |
3.7V, 14V, 110V, 265V |
|
Available tolerances |
20% 25% 30% |
|
Resistance |
3.5Ω-1200Ω |
|
Technology |
Ceramic Composition |
|
Rated Zero-Power Resistance |
18Ω |
|
Curie Temperature |
65±10℃ |
|
Surface Temperature |
70±10℃ |
|
Storage Condition |
-10℃～+40℃ |
|
Certification |
ROHS |
Kindly Note/ Use Attention:
1. The PTC heater has the characteristics of automatic constant temperature and does not require a temperature control system. It is the core element of all PTC heaters.
2. There are four kinds of electrodes for customers to choose: electroless nickel + silver, melt-blown metal aluminum, printed aluminum + silver, printed aluminum.
3. The working voltage is very wide. When the operating voltage changes twice, the change in surface temperature is very small.
4. When multiple PTC heaters are used together, they should be connected in parallel, not in series.
5. This product has no lead wires and insulation layer. If the customer cannot use it, please choose an insulation film type product or a metal shell type product.

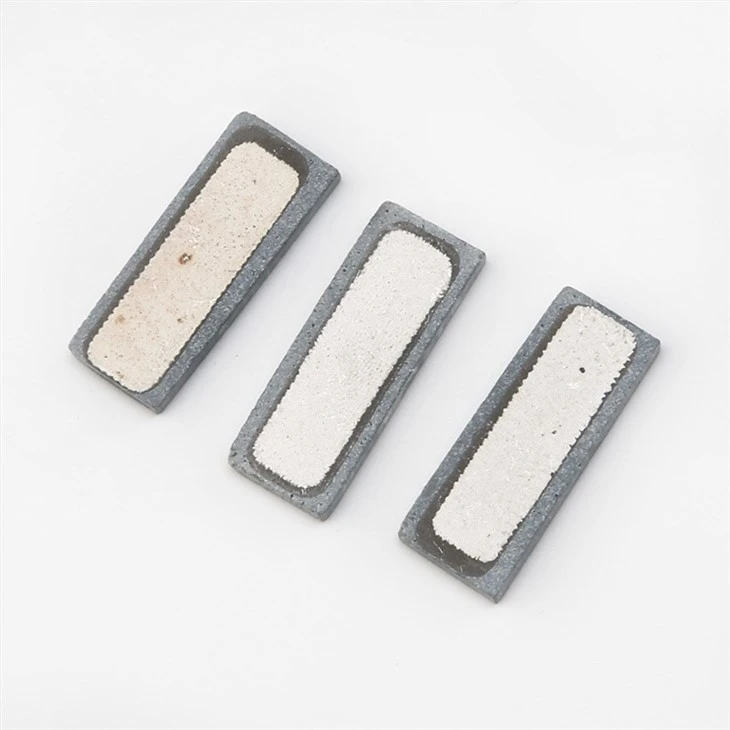

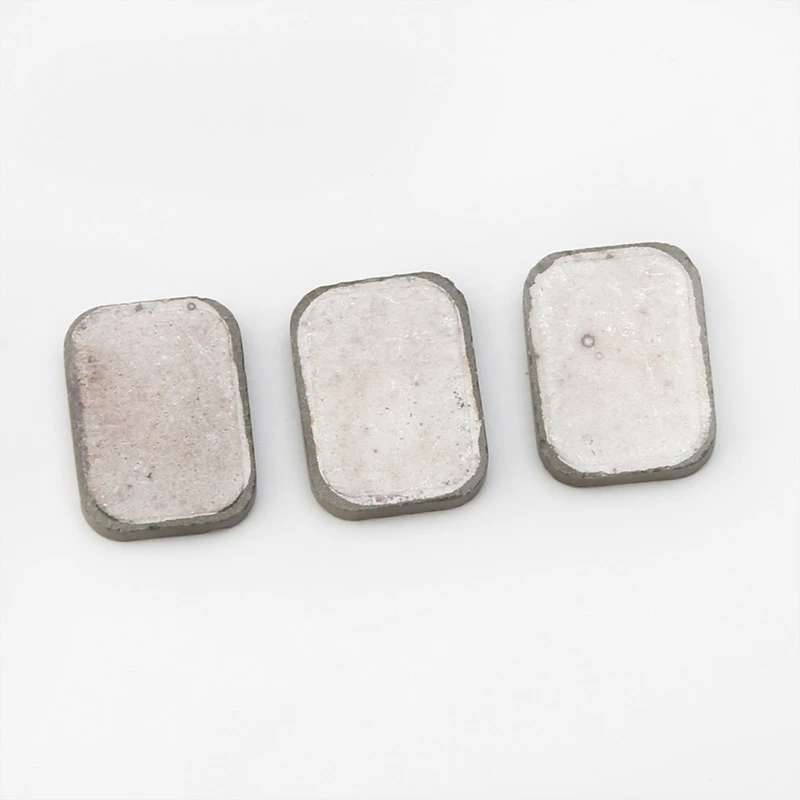

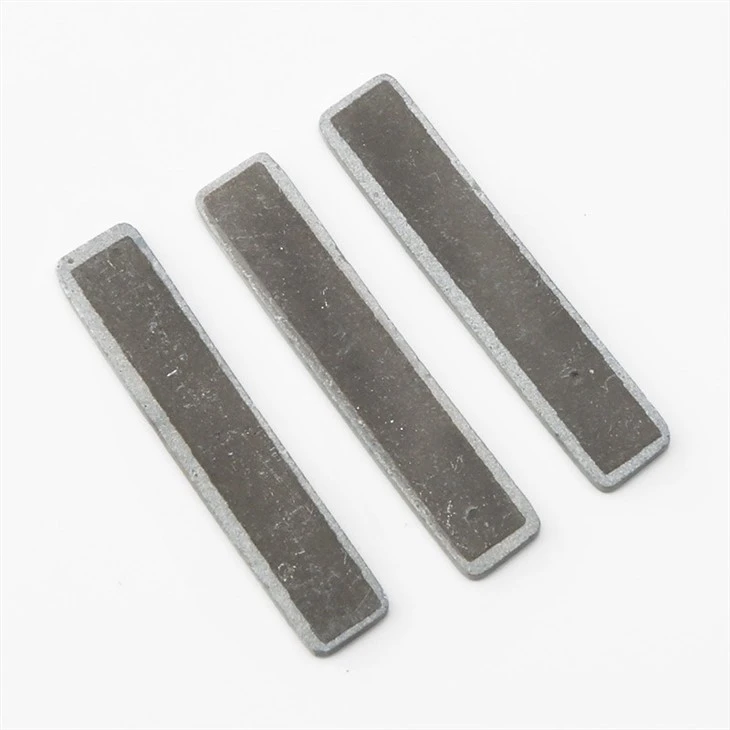

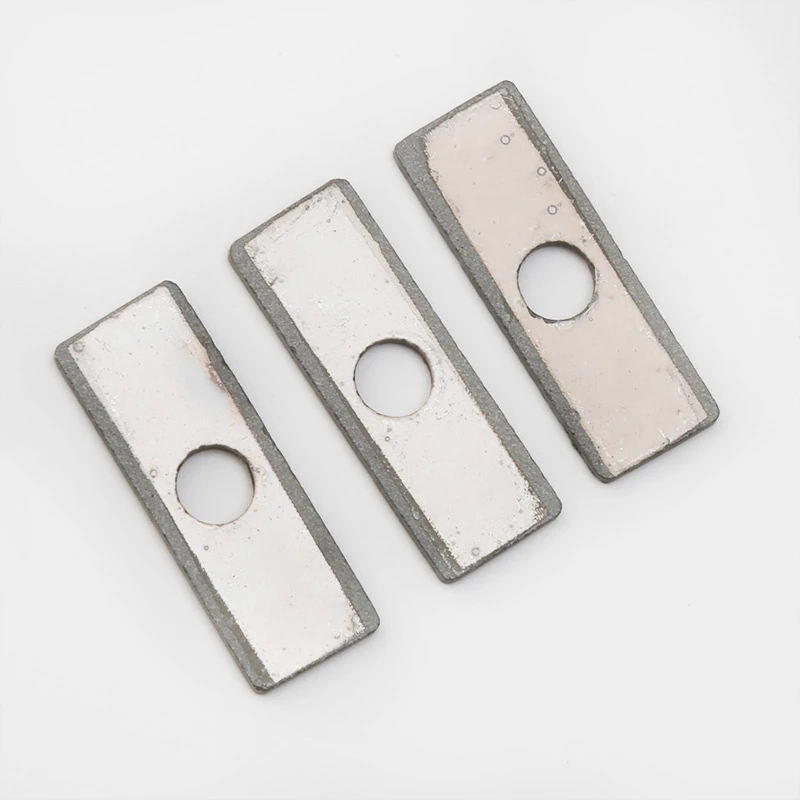

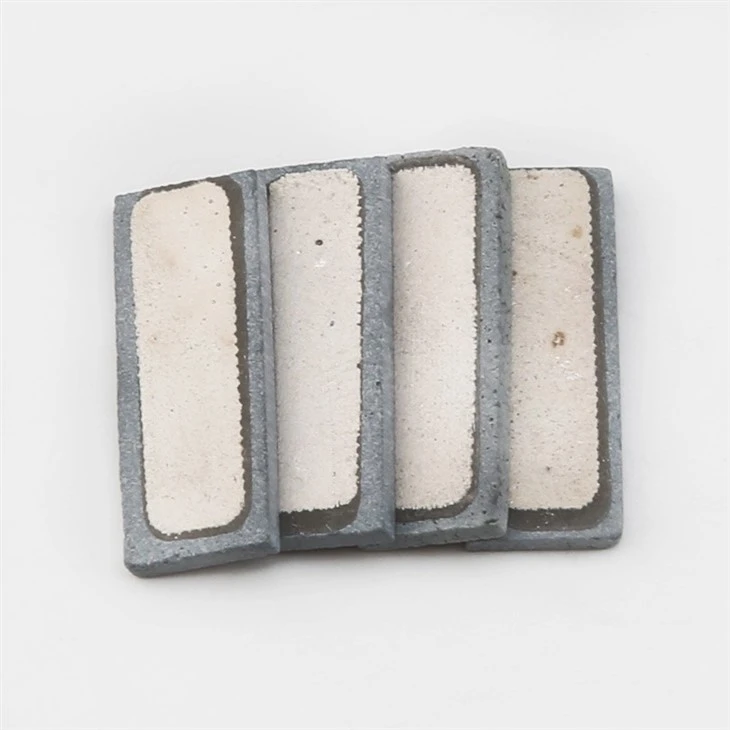

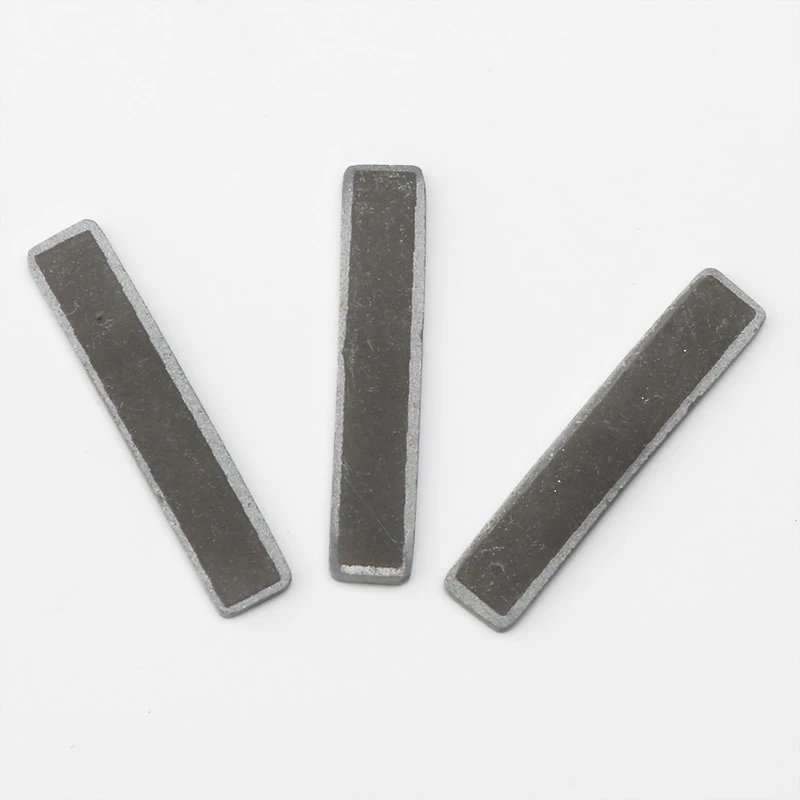

Rectangle Strip Shape PTC Thermistor Heating Element Constant

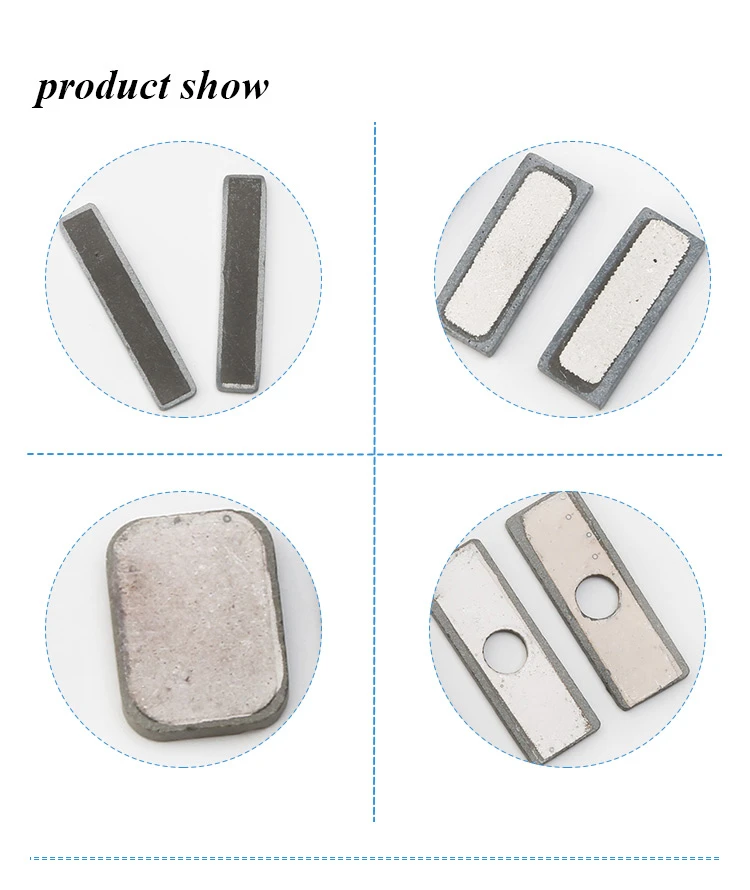

More details
PTC Thermistor Heater Element Application
Widely Application: widely used in hair straighteners, hair clips, hair splints, ion perm, perm, perm board, ceramic perm board, hair tongs, curling iron, electronic thermos, incubator, Insulation cup, insulation plate, insulation cabinet, insulation table, electric heating plate, hyperthermia, hot coffee machine, steam beauty, wax melting device, steam generator, humidifier, humidifier, chocolate extruder, hot treasure, electricity Soldering iron, acupuncture, urinary catheter, foot warmer, hand dryer, cotton candy machine, massager, liquefied gas cylinder heating, small warm air heater, hair dryer, room warmer, dryer, drying cabinet, clothes dryer , Industrial drying equipment, electric dust collector heater, train locomotive electric heating, mold heating, control cabinet heating, moisture-proof, moisture-proof monitor, electric oven, electric oven, infusion treasure, medical equipment, household appliances, household appliances, small Home appliances, etc.
