Product Desc.

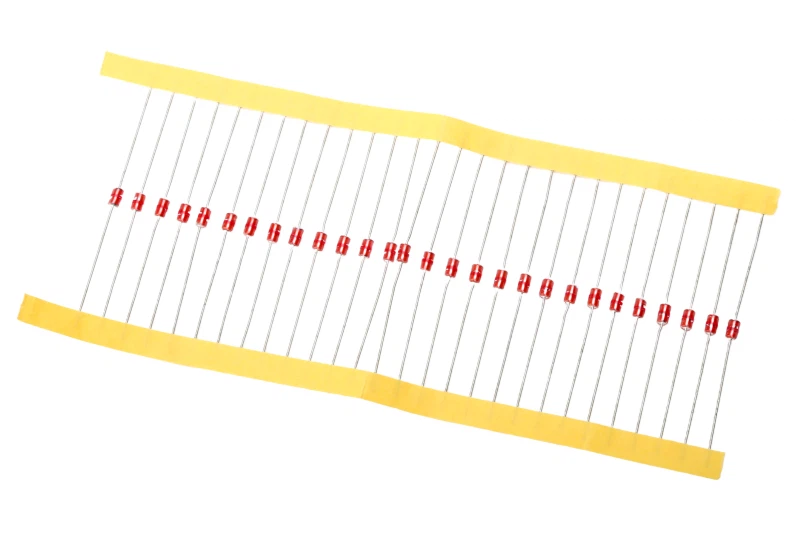

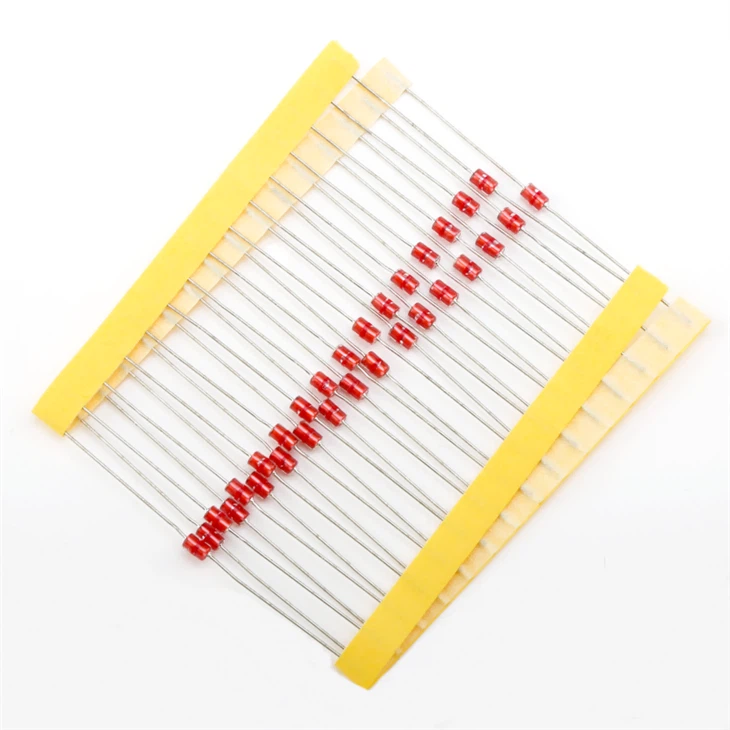

10K Ohm NTC Thermistor Resistors are temperature-sensitive resistors that exhibit a decrease in resistance as temperature increases. The MF58 series is a popular type of NTC thermistor, and it is commonly used in various temperature sensing applications. Here are some key features and characteristics of the MF58 NTC thermistors:
Features of NTC Thermistor
1. Accuracy: The MF58 series is known for its high accuracy in temperature sensing applications. It provides a reliable and precise response to changes in temperature.
2. High Sensitivity: NTC thermistors exhibit a significant change in resistance with temperature variations, making them highly sensitive. This high sensitivity allows for precise temperature measurements and control.
3. Compact Size: NTC thermistors are often compact in size, making them suitable for applications where space is limited. The small form factor is advantageous in electronic devices and systems with size constraints.
3. Wide Operating Temperature Range: NTC thermistors are available in various temperature ranges, allowing them to be used in a wide range of applications across different industries. This versatility makes them suitable for both low-temperature and high-temperature sensing.
4. Cost-Effective: NTC thermistors are often cost-effective compared to some other temperature sensing technologies. This cost efficiency is especially advantageous for applications that require multiple temperature sensors or widespread deployment.
5. Package Type: NTC thermistors are available in different package types, and the MF58 is no exception. The package type can affect the ease of integration into a circuit.
Product Parameter
| Product name: | 10K Ohm NTC Thermistor Resistors | Resistance At 25℃: | 580 Ohms |
| Chip: | Silicon Chip | Resistance At 100℃: | 1000 Ohms |

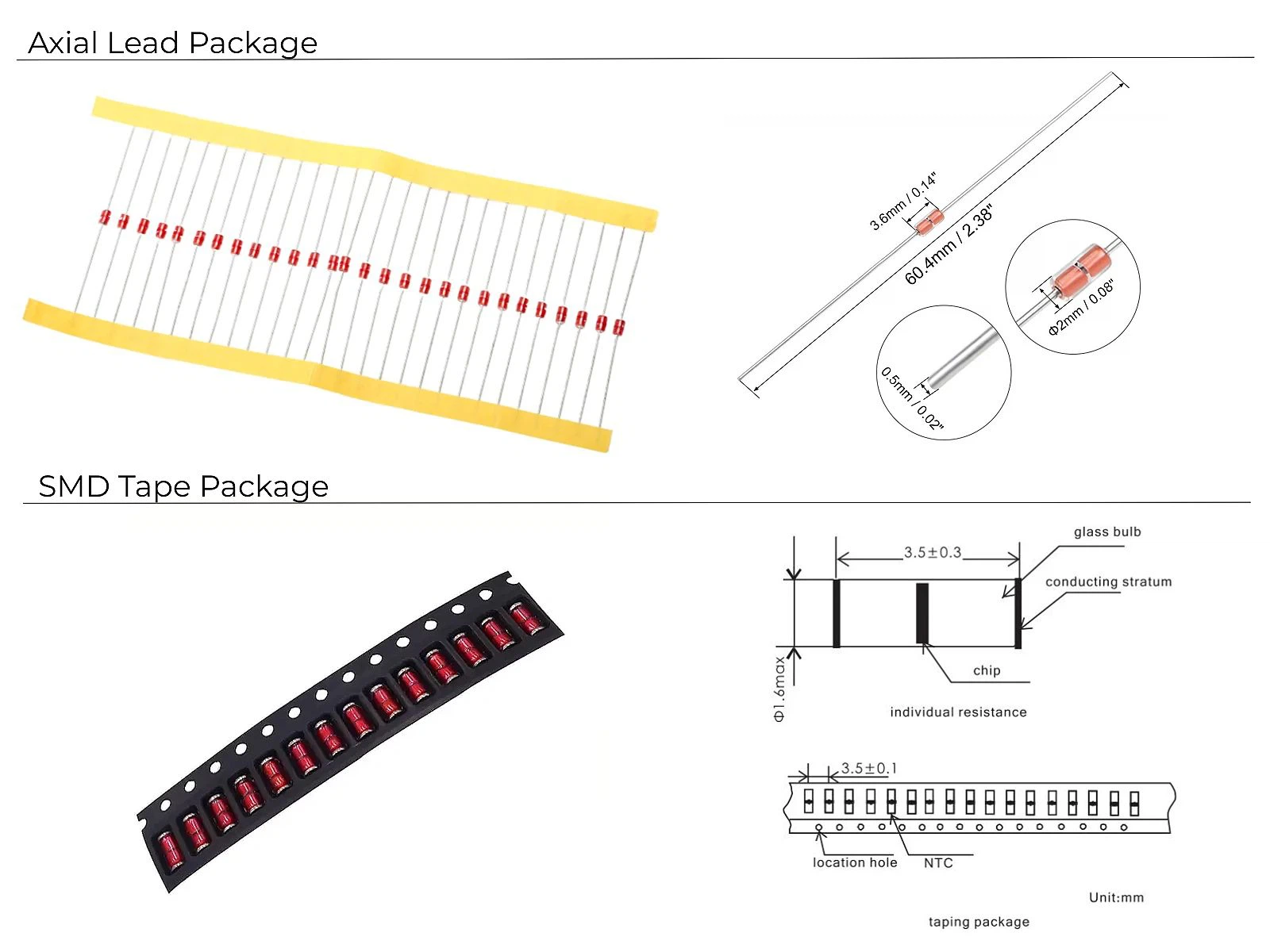

| Glass Shell: | OD 2.0mm Max ID 0.8±0.05mm | Dumes: | Ferronickel Alloy |
| Lead Structure: | Straight Or Curved Lead | Lead: | CP Or Copper |
| Operating Temperature: | -40~+180℃ | Encapsulation: | DO35 |
| Type: | Glass Coated NTC | Leads: | Axial Leads |
| Tolerance: | 1% 2% 3% 5% 10% | B Value: | 3435, 3950 |
Products Details
Typical Products Specifications
| Part number | R25℃(KΩ) | B25/50℃(K) | Dissipation Coefficient (mW/℃) |
Time Constant (S) |
Operating Temperature Range(℃) |
| MF58-202-3470□ | 2 | 3470 |
In still air |
In still |
-40~+150℃ |
| MF58-502-3500□ | 5 | 3500 | -40~+150℃ | ||
| MF58-103-3435□ | 10 | 3435 | -40~+150℃ | ||
| MF58-103-3600□ | 10 | 3600 | -40~+150℃ | ||
| MF58-473-3950□ | 47 | 3950 | -40~+250℃ | ||
| MF58-503-3950□ | 50 | 3950 | -40~+250℃ | ||
| MF58-104-3990□ | 100 | 3990 | -40~+300℃ | ||
| MF58-154-4100□ | 150 | 4100 | -40~+300℃ | ||
| MF58-204-4300□ | 200 | 4300 | -40~+300℃ | ||
| MF58-105-4400□ | 1000 | 4400 | -40~+300℃ |
1.“□”indicates the resistance tolerance: F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
2. B Value:determmed by rated zero-power resistance at 25℃ and 50℃,tolerance:±1%.
3. Special specifications are customized by your request.
Wide Appilcation
1. Refrigerators and Freezers: NTC thermistors are employed in these appliances to monitor and control the temperature inside the compartments, ensuring that food is stored at the proper temperature.
2. Oven and Microwave Temperature Control: In cooking appliances, NTC thermistors help regulate temperature to ensure even cooking and prevent overheating.
3. Automotive Engine Management: NTC thermistors are used in automotive engines for monitoring coolant temperature. They contribute to the proper functioning of the engine and help prevent overheating.
4. Battery Packs: NTC thermistors are integrated into battery packs for laptops, power tools, and electric vehicles to monitor and control battery temperature during charging and discharging.
5. Medical Thermometers: NTC thermistors are used in electronic thermometers for accurate temperature measurements in medical applications.
Factory Tour
Dongguan Senreach Electronic Co., Ltd. was established in 2000. Our factory covers an area of 4000 square meters with a monthly production capacity of 50 million pieces. We are committed to becoming a comprehensive circuit protection component manufacturer and solution supplier.
We are specialized in over current protection, over temperature protection, over voltage protection design, development, production and sales. Products are widely used in consumer electronics, automobiles, ships, communications, power supplies, power tools, new energy and other fields.
With variety of advanced manufacturing and testing equipment, we adopt perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.
equipment
equipment
Production Workshop
equipment
Fuse manufacturing
Production Workshop
Document storage
equipment
Why Choose Us
Price Advantage
We have a complete suuply chain from raw materials to final packing which enables us to control the production cost at every step.
Guaranteed Quality
Every piece of product pass full inspection by both auto test equipment and our QA team.
Stock Wholesale
We have open stock for some universal standard products. Delivery time is just about 1 week.
One-Stop service
We have R&D, QA, sales and after-sales team to offer you a full service including selection recommendation, technical support, after-sales protection.
Exhibition
In the past ten years, we have participated in a lot of domestic and foreign exhibitions about electronic parts. More and more foreign traders got to know our factory, so that they could directly buy from our factory and reduce their product costs. We will update our exhibition infomation on the website.
We’re confident in the design and quality of our NTC Power Thermistor Resistance. If you are not sure whether our parts correctly fit your appliance, please feel free to contact us or ask a question.
