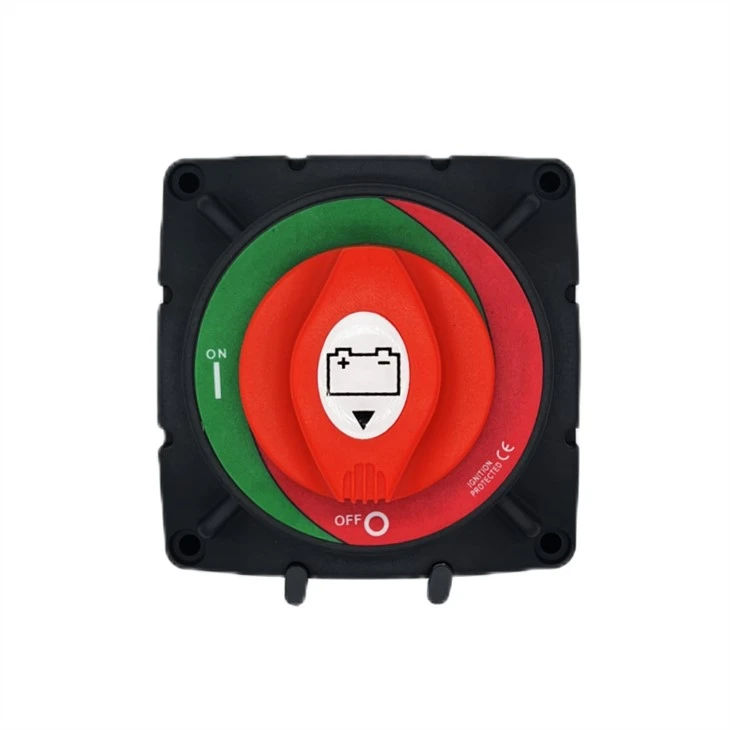

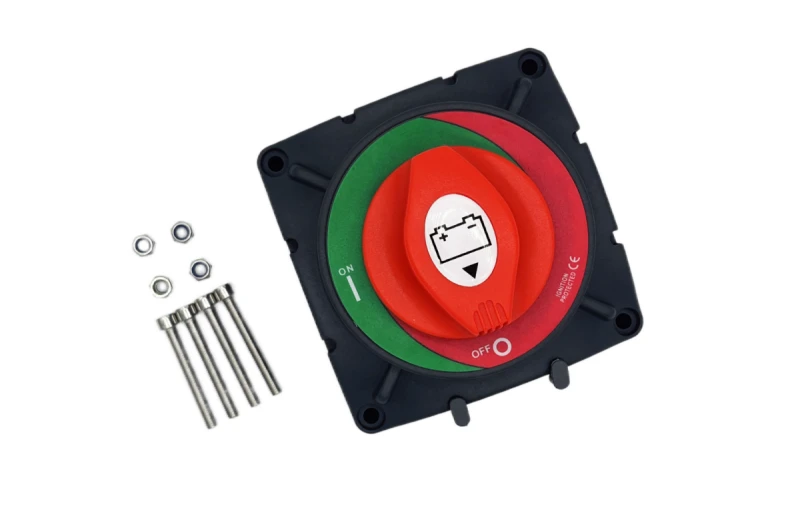

Desc.
Marine battery disconnect switches are designed to cut power and help prevent electrical fires and theft when equipment is not in use. They also provide a reliable way to turn off the power during maintenance and protect the battery from excessive consumption. The battery disconnect switch is a useful safety precaution that allows you to cut off the power immediately. It can prevent electric shock during maintenance and does not affect normal operation when troubleshooting.
Features of Disconnect Battery Switch
1. Waterproof: Battery cut off switch are made of ABS plastic housing and coppered tin inner studs. Fully enclosed design protects wires from dust, corrosion and rain.
2. Voltage and Current Ratings: The RV Battery Disconnect Switch is designed to handle a range of voltage and current levels. It is suitable for use with 12-48V systems. At DC 12V, it can handle continuous currents of up to 275 A, intermittent currents of up to 455 A, and momentary currents of up to 1250 A. These ratings make it versatile for various power requirements in RVs and marine vessels.
3. Good compatibility: The battery quick disconnect device is suitable for DC 12-48V systems to isolate and secure electrical systems. It can be used alone or locked with other switches for simple and economical battery separation.
4. Safety protection: The battery master switch can safely disconnect the battery and prevent excessive battery consumption when the vehicle or boat is not in use.

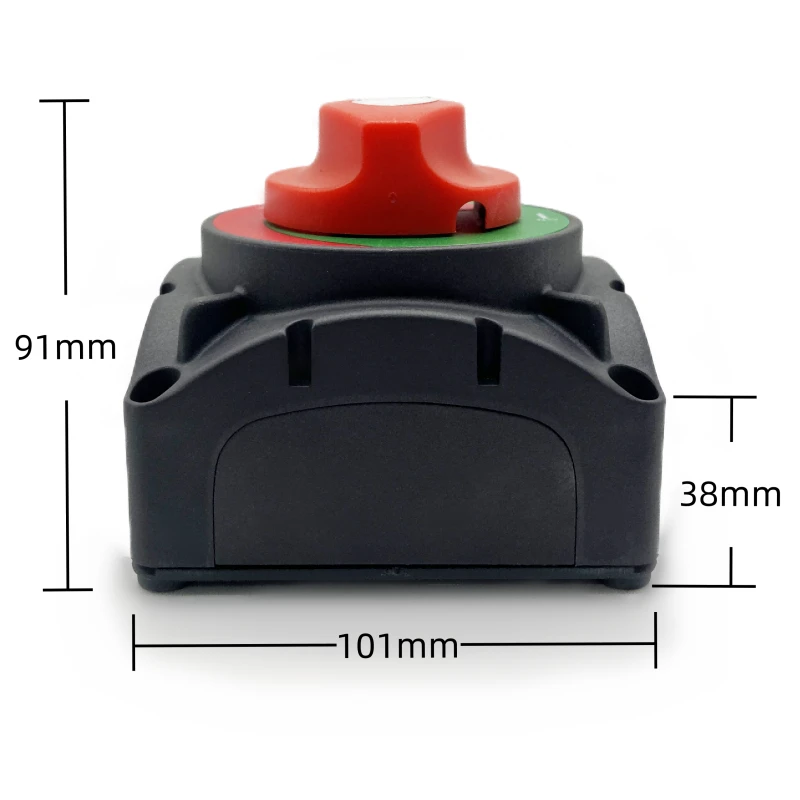

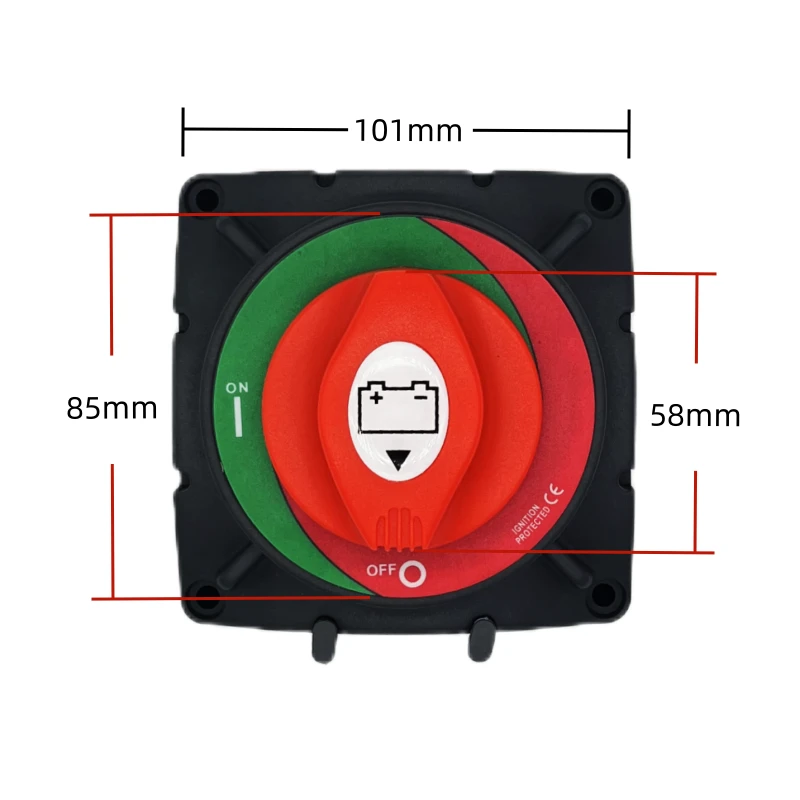

Product data
| Product name: | Marine Battery Disconnect Switch | Operation: | Off-ON |
|
Rated Voltage: |
12-48V DC | Rated Current: | 200Amps DC |
| Intermittent Rating: | 350A | Cranking Rating 30 Sec: | 1250A |
| Operation Type: | ON-OFF | Stud: | M10 |
| Material: | Plastic+Copper | Net Weight: | 560g |
Details

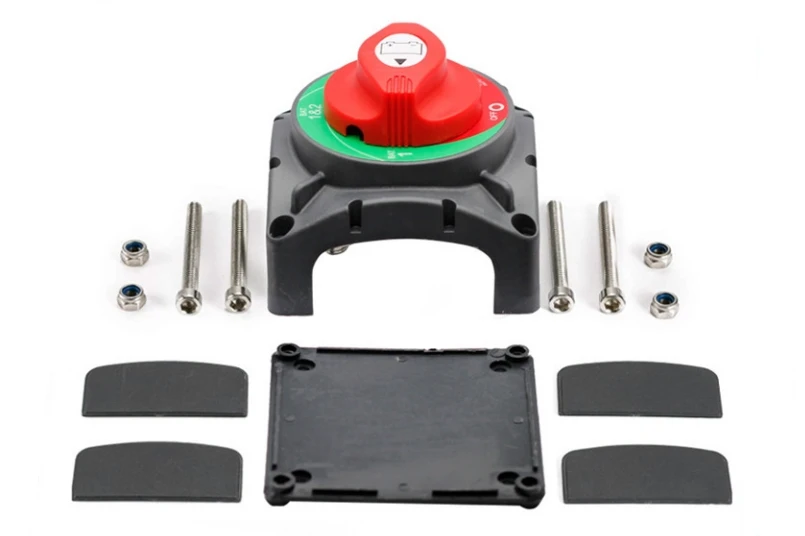

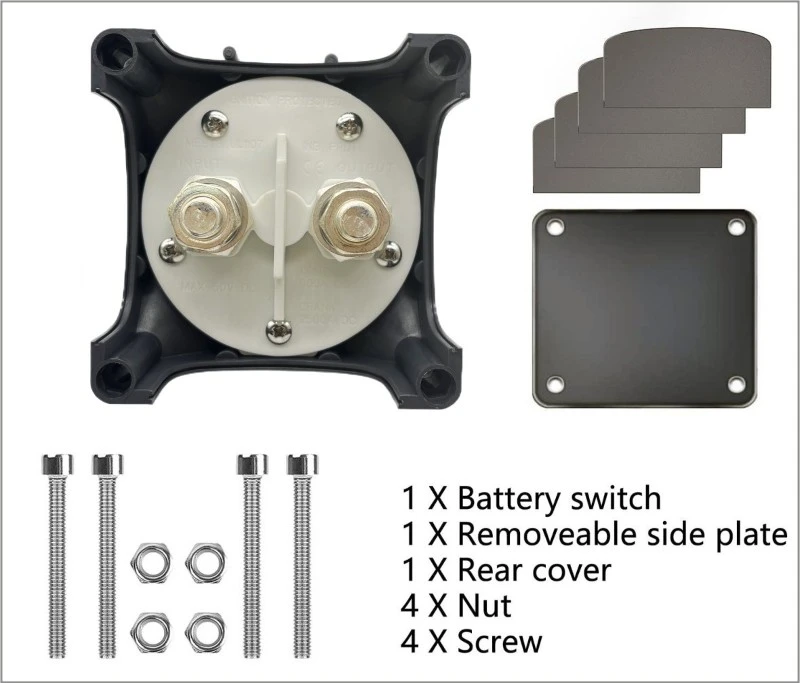

Package Included:
1. 1 X Battery switch
2. 1 X Removable side plate
3. 1 X Rear cover
4. 4 X Nut
5. 4 X Screw
The whole set of battery switch is packed in a small PE bag then put into an inner colored box one by one piece. And we pack 20-30pcs in an outer carton for shipment. And the quantity per carton can be customized.
Wiring Diagram:
-
Remove the cable from the battery (You should always disconnect both the positive and the negative cables from the battery poles to ensure your safety.)
-
Remove negative cable terminal
-
Wire in Switch (Wire it in between the cable and the battery terminal so that the switch will break the connection to the battery when it is off. Make sure when you add the switch that you install it in the "On" position.)
-
Reconnect Terminal
-
Screw Switch to Frame
-
Connect Battery Cables
Mounting ways
Application
Wide Application
Marine battery disconnect switch is widely used for car, marine, boat, RV, camper, travel trailer, truck, ATV, UTV, battery banks and other devices.
At present, this kind of modification combination switch is used in many coastal cities around the world, and the installation is simple.
Installation
Note: The rated current of the switch is 275A, please do not exceed this value for a long time! Otherwise the switch will burn out. Please use the switch strictly according to the wiring diagram! Incorrect wiring will not have the effect of disconnecting the power.
Trolling Motor

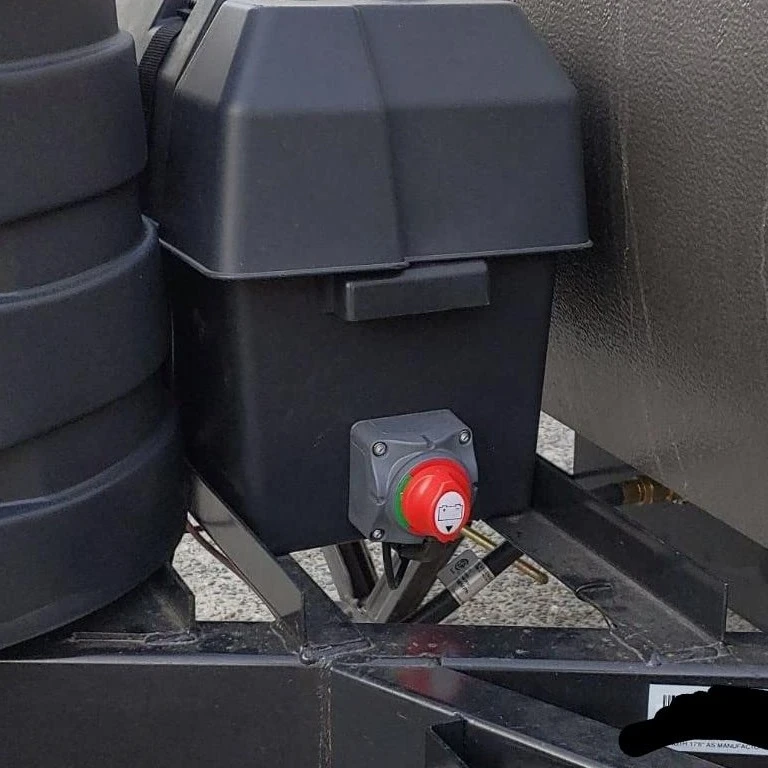

Trailer

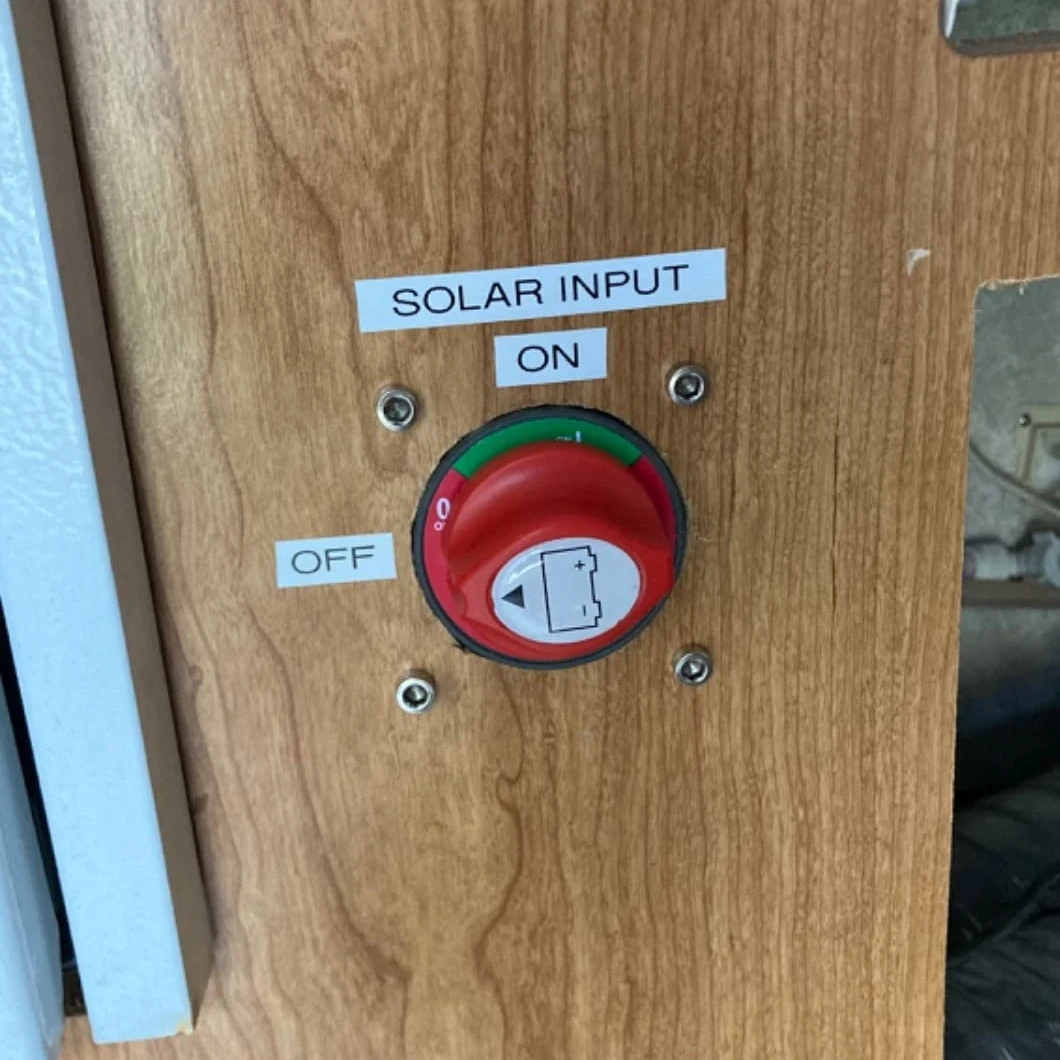

Solar Panel Controller

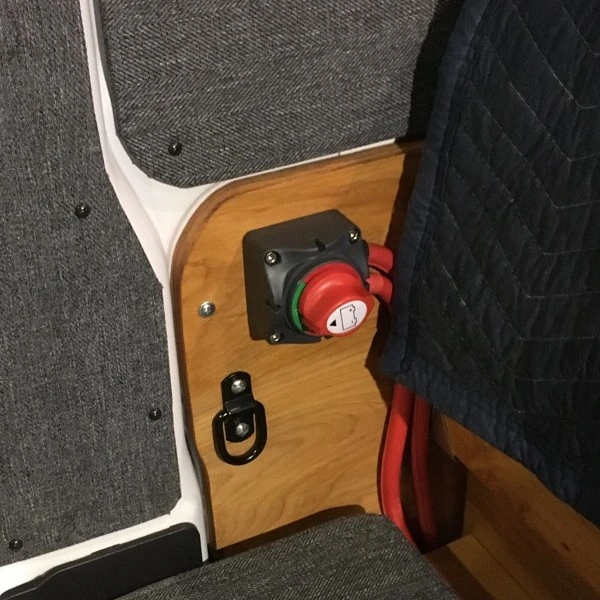

Camper Van

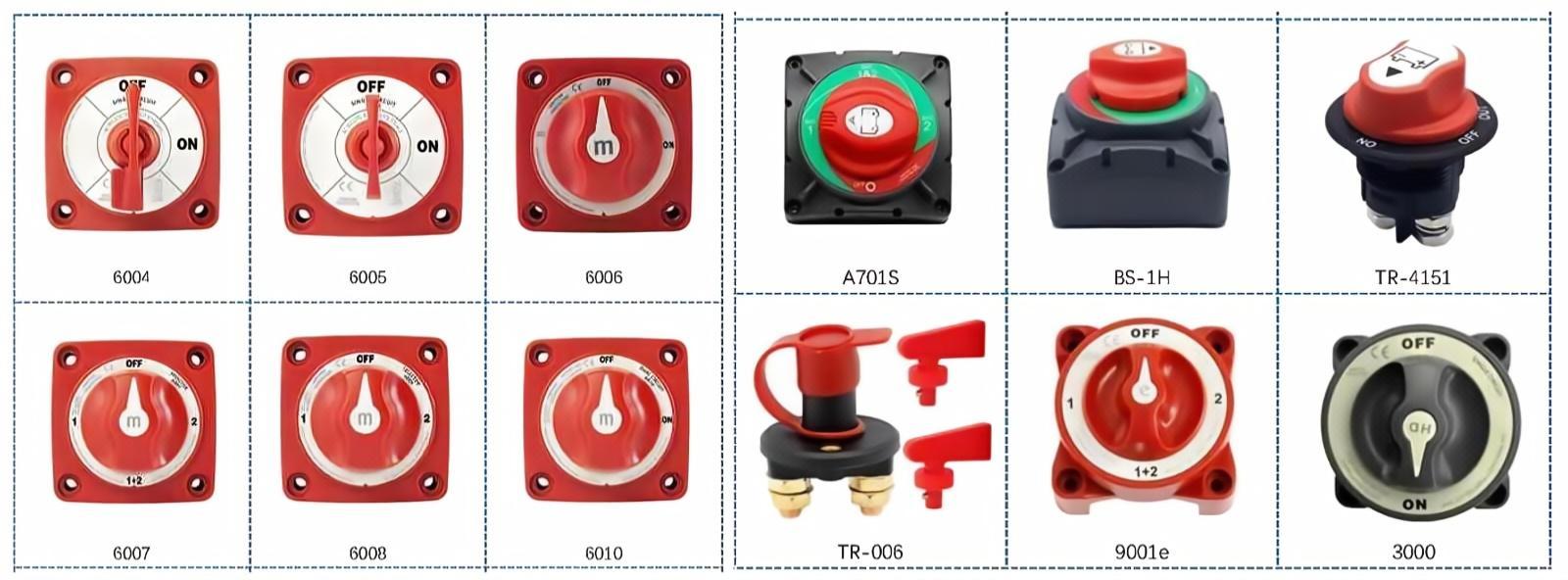

More Options
about us
Dongguan Senreach Electronic Co., Ltd. was established in 2000. Our factory covers an area of 4000 square meters with a monthly production capacity of 50 million pieces. We are committed to becoming a comprehensive circuit protection component manufacturer and solution supplier.
We are specialized in over current protection, over temperature protection, over voltage protection design, development, production and sales. Products are widely used in consumer electronics, automobiles, ships, communications, power supplies, power tools, new energy and other fields.
With variety of advanced manufacturing and testing equipment, we adopt perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.
