Products Desc.
PCB Fuse Clip for 10x38 6x30 Fuses is an essential component used in electronics to securely hold and mount cylindrical fuses on printed circuit boards (PCBs). It provides a reliable electrical connection between the fuse and the PCB, ensuring proper circuit protection and safe operation of the equipment. The fuse clips can be customized to be made from various materials such as copper, brass, or nickel-plated metals, offering different advantages depending on the application requirements.
Features of PCB Mounting Fuse Clips
1. Size Variations: The PCB-mount Fuse Clip is available in two sizes, one designed to accommodate 10x38mm fuses and the other for 6x30mm fuses. These standardized sizes ensure compatibility with a wide range of cartridge fuses.
2. PCB Mounting: The fuse clip is designed with PCB mounting legs or pins that allow for easy and secure attachment to the PCB. These mounting features ensure stability and proper alignment during the soldering process.
3. Material Options:
Copper: Copper fuse clips provide excellent electrical conductivity, making them suitable for high-current applications. They offer low resistance and high thermal conductivity, ensuring efficient fuse operation and minimal power loss.
Brass: Brass is known for its corrosion resistance and mechanical strength, making brass fuse clips a durable option for various environments and applications.
Nickel-Plated: Nickel-plated fuse clips offer enhanced corrosion resistance and are well-suited for applications where exposure to moisture or harsh conditions is a concern.
Product Parameter
| Product name: | PCB Fuse Clip for 10x38 6x30 Fuse | Rated Voltage: | 250V |
| Rated Current: | 15A, 30A | Fuse sizes: | 10x38mm; 6x30mm |
| Material: | Copper, brass, nickel | Finish: | Tin plated |
| Thickness: | 0.5mm | Type: | Metal Fuse Clip |
Products Details

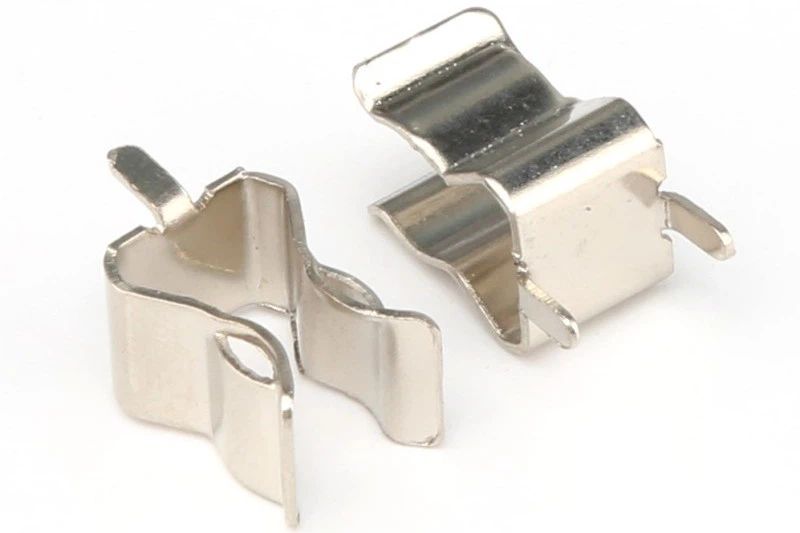

For 10x38mm Fuse
For 6x30mm Fuse
Secure Fuse Retention
The fuse clip's spring tension mechanism securely holds the cartridge fuse in place on the PCB, preventing accidental dislodgment during handling or vibrations. This reliable retention ensures continuous and uninterrupted circuit protection.
Excellent Electrical Conductivity
Depending on the material used (e.g., copper or brass), the fuse clip provides excellent electrical conductivity. This reduces resistance, minimizes voltage drop, and maintains optimal power transmission, ensuring efficient circuit performance.
Easy Installation
The fuse clip's PCB mounting legs or pins simplify the installation process, allowing for easy integration onto the printed circuit board. This ease of installation streamlines production and assembly processes, reducing manufacturing time and costs.
Wide Appilcation
PCB Fuse Clip for 10x38 6x30 Fuses are used in a wide range of electronic and electrical applications, including but not limited to:
1. Power Supplies: In both consumer and industrial power supplies, where circuit protection is critical to safeguard the equipment and prevent damage due to overcurrent or short-circuit conditions.
2. Industrial Control Systems: In various control panels and automation systems to protect sensitive electronics and components.
3. Automotive Electronics: In automotive circuitry to protect electrical systems and components from potential faults and failures.
4. Consumer Electronics: In devices like televisions, computers, and audio equipment to ensure safety and reliability.
In summary, the PCB-mount Fuse Clip is a versatile and customizable component designed to securely hold cartridge ceramic or glass fuses on PCBs. Available in different sizes and materials, these clips offer excellent electrical conductivity, reliability, and compatibility, making them a vital part of circuit protection solutions in diverse industries.
Factory Tour
Dongguan Senreach Electronic Co., Ltd. was established in 2000. Our factory covers an area of 4000 square meters with a monthly production capacity of 50 million pieces. We are committed to becoming a comprehensive circuit protection component manufacturer and solution supplier.
We are specialized in over current protection, over temperature protection, over voltage protection design, development, production and sales. Products are widely used in consumer electronics, automobiles, ships, communications, power supplies, power tools, new energy and other fields.
With variety of advanced manufacturing and testing equipment, we adopt perfect quality management system to ensure that every single piece of our components are safe and stable. Our operations are ISO9001:2000-certified and products meet international standards.
equipment
equipment
Production Workshop
equipment
Fuse manufacturing
Production Workshop
Document storage
equipment
Why Choose Us
Price Advantage
We have a complete suuply chain from raw materials to final packing which enables us to control the production cost at every step.
Guaranteed Quality
Every piece of product pass full inspection by both auto test equipment and our QA team.
Stock Wholesale
We have open stock for some universal standard products. Delivery time is just about 1 week.
One-Stop service
We have R&D, QA, sales and after-sales team to offer you a full service including selection recommendation, technical support, after-sales protection.
Exhibition
In the past ten years, we have participated in a lot of domestic and foreign exhibitions about electronic parts. More and more foreign traders got to know our factory, so that they could directly buy from our factory and reduce their product costs. We will update our exhibition infomation on the website.
We’re confident in the design and quality of our PCB Fuse Clip for 10x38 6x30 Fuses. If you are not sure whether our parts correctly fit your appliance, please feel free to contact us or ask a question.
