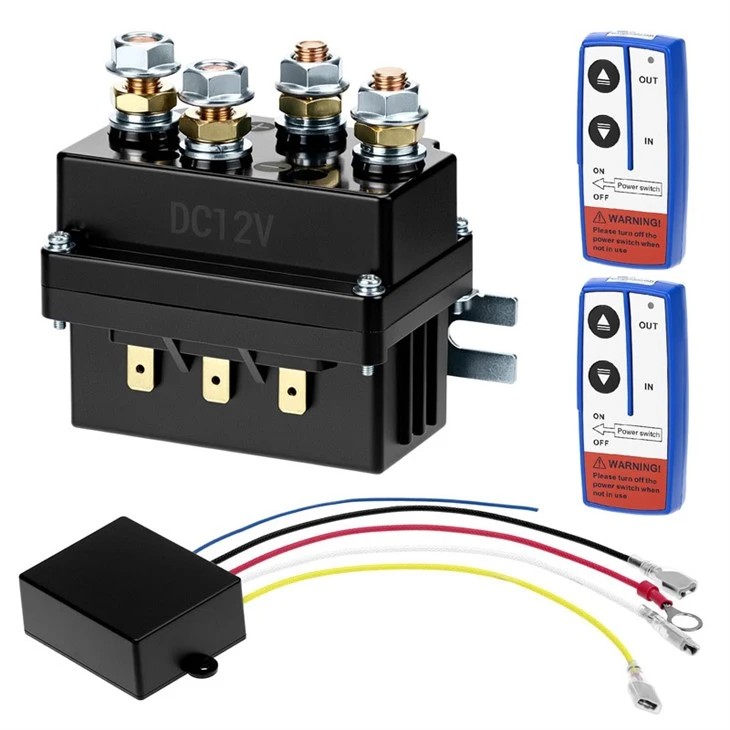

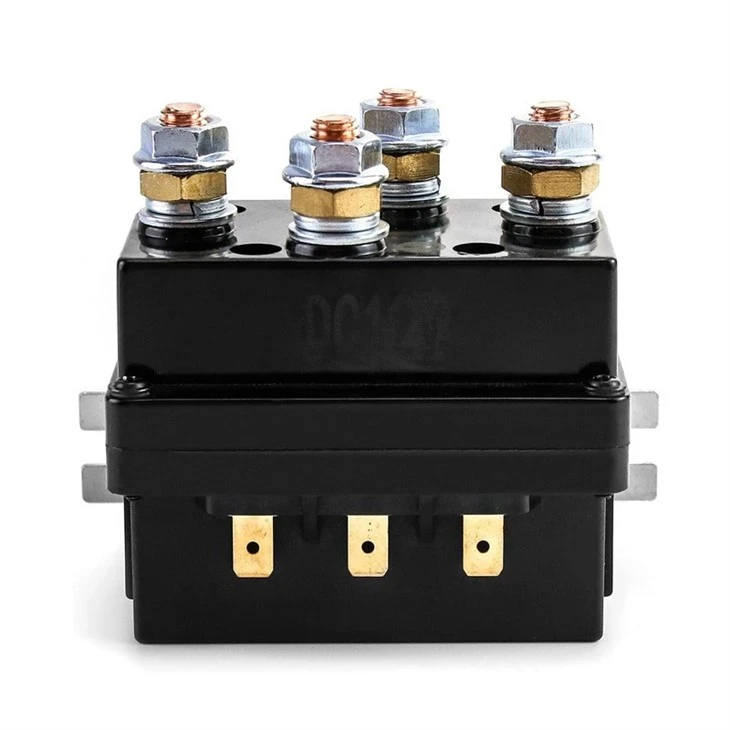

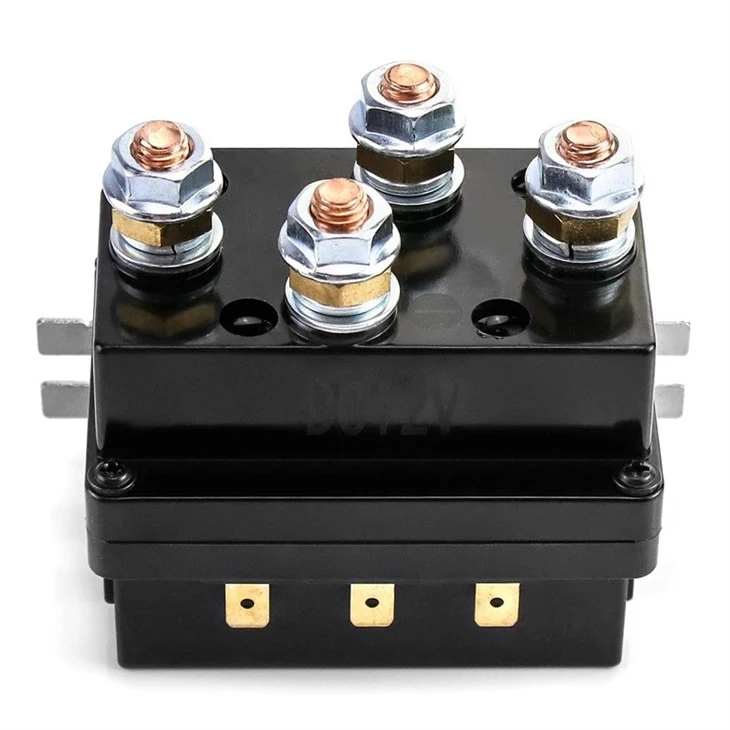

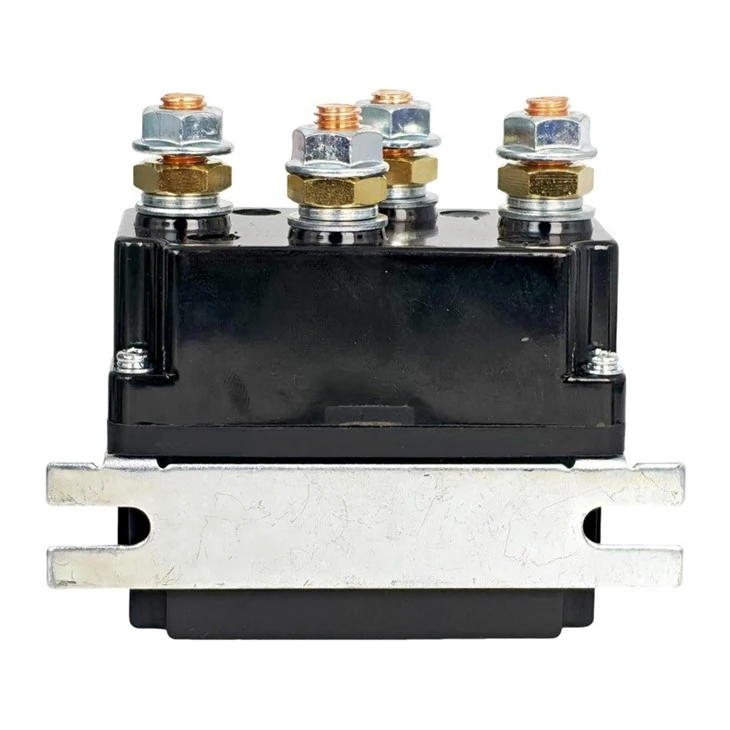

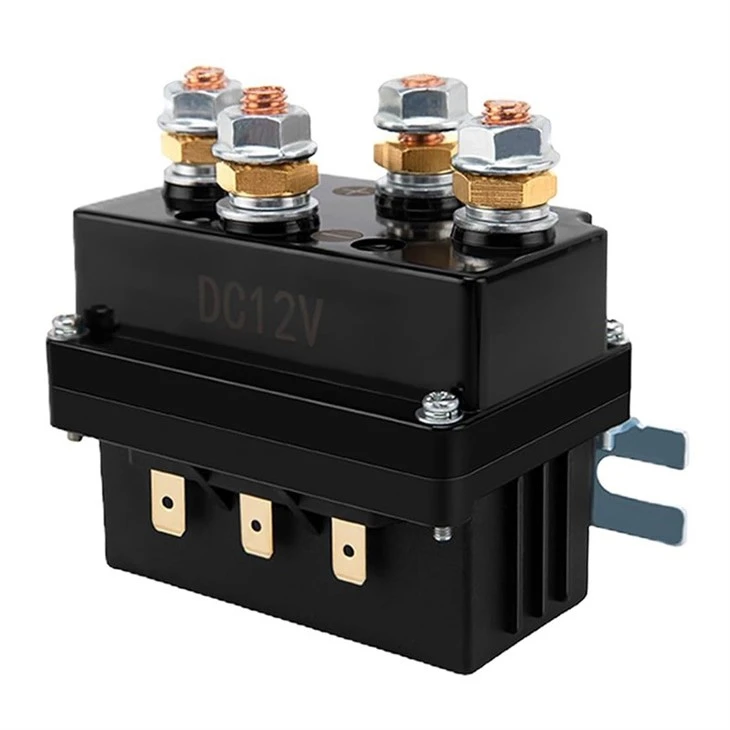

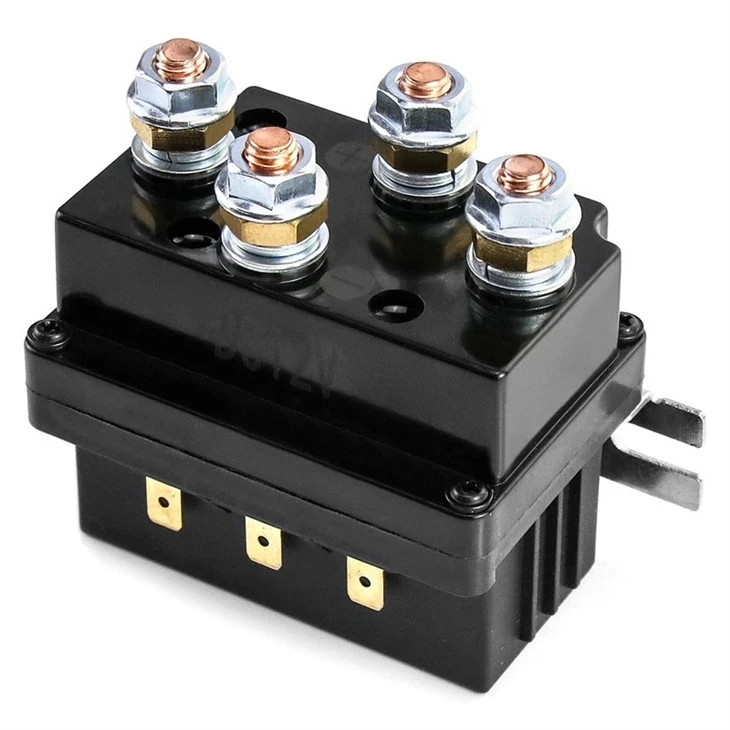

Name: China Wireless Remote Control Winch Kit 12V 500A Winch Solenoid Relay Contactor For 4x4 Vehicles Manufacturers Suppliers Factory
Brand: Senreach
SKU: 310980938

The Description of 12V 600A Heavy Waterproof Winch Solenoid Relay Alloy for ATV Off-Road Vehicle Electri

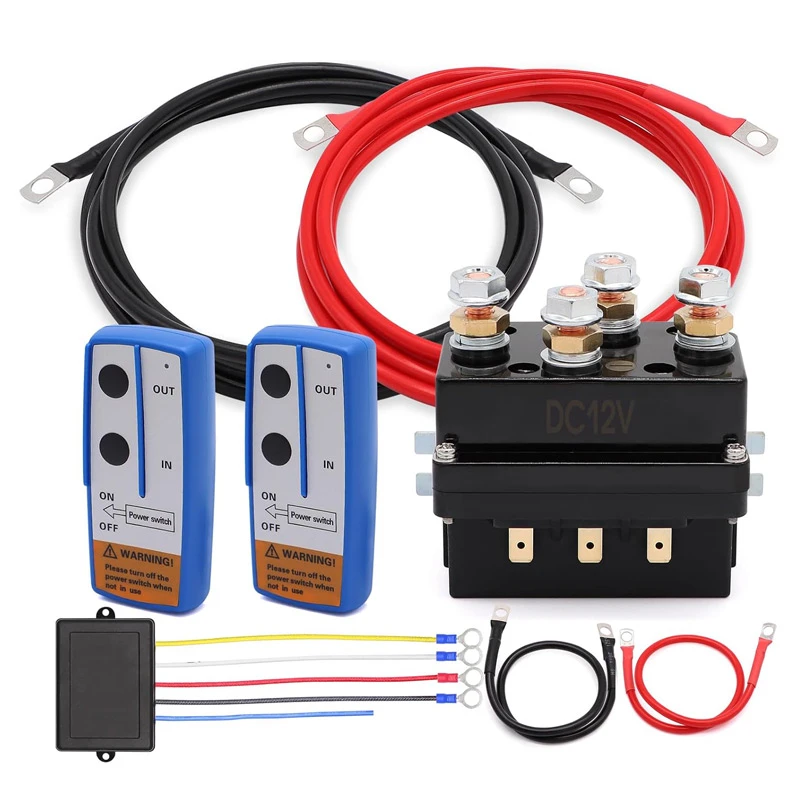

Winch-Solenoid-Relays-1

12V 600A Heavy Waterproof Winch Solenoid Relay Alloy for ATV Off-Road Vehicle Electric

•FUSE BASE
•FUSE BLOCK, FUSE HOLDER
•RELAY SLOT TERMINAL SOCKET BOX
•FUSE ACCESSORIES

-Applied to new energy vehicles, trucks, forklift and other devices.

-We supply complete sets of fuse holders and fuse accessories to make the installation and replacement of fuse more easier.

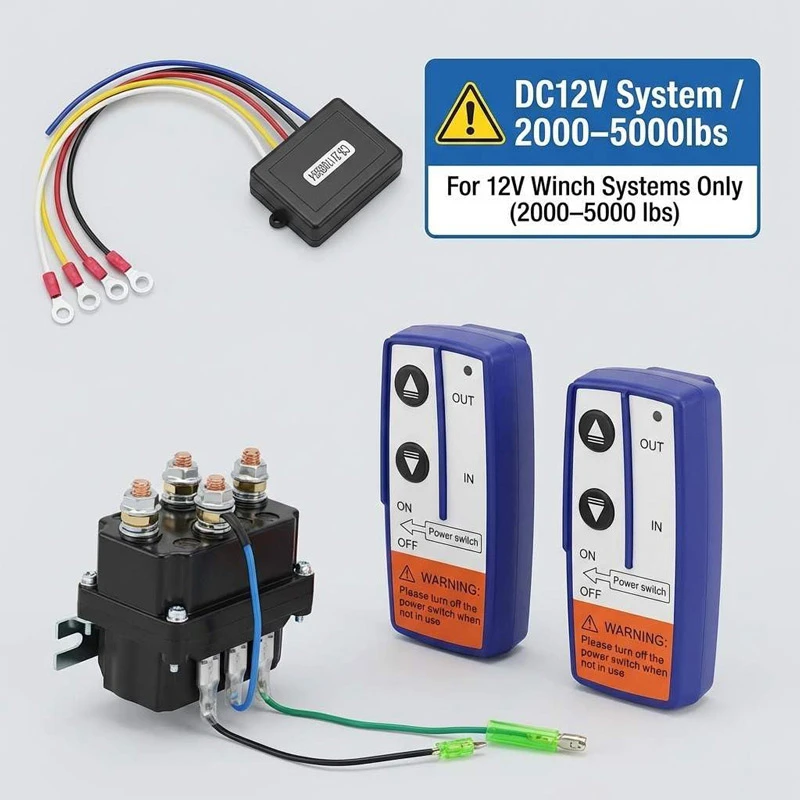

61hTq0fPWfL

1. Robust Construction: Built from solid, weather-resistant steel with a shatterproof, powder-coated black finish, this winch solenoid relay is designed for long-term use. Double circuit relay enables forward and reverse motor operation with two control signals.
2. High Performance: The kit handles intermittent current loads of up to 500 amps for 10-second bursts with a necessary cooling period of 20-30 seconds.
3. Convenient Wireless Operation: The product includes a wireless remote control kit with a 164ft (50m) range and visual indicator lights, allowing operators to control winching from a safe distance.
4. Weather-Proof Design: The receiver is resistant to weather conditions and minor spills, offering reliable protection against rain; however.
5. Universal Compatibility: Supports DC12V dual-direction motors, handling up to 500A peak for winches rated 8000–15000lb, this solenoid relay fits a wide range of vehicles, including trucks, Jeeps, ATVs, SUVs, 4x4 vehicles, and trailers.

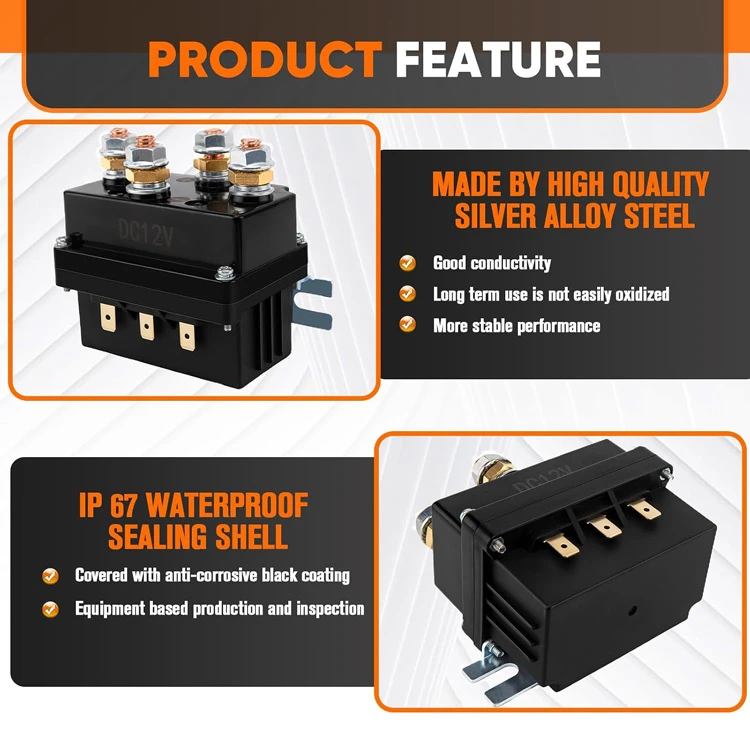

Feature

Product Name	Wireless Remote Control Winch Kit 12V 500A for 4x4 Vehicles	Model Number	4450 DC12V Winch Solenoid
Type	Winch Solenoid Relay	Terminal Shape	Pin Type
Max. switching voltage	12V, 24V	Contact Rating (resistive)	450A12VDC
Contact Material	Alloy	Contact Resistance	50mΩ Max
Nominal Voltage(VDC)	12V, 24V	Max Continue Voltage(VDC)	14.4V, 28.8V
Coil Resistance Ω±10% at 20°C	5.5Ω, 22Ω	Insulation Resistance	100MΩ min(at 500VDC)
Pick up Voltage (VDC at 20°C)	8.5V, 17V	Release Voltage (VDC at 20°C)	1.2V, 2.4V
Between Contacts	50Hz750VAC	IP Level IP	IP67
Connection Type	Quick Connect 6.3mm(2.5")/ Screw Fix	Application	Widely used in ATVs, off-road vehicles, multi-function vehicles, snowmobiles, trolleys, lawn mowers, garden tractors, electricians, electrics, etc.

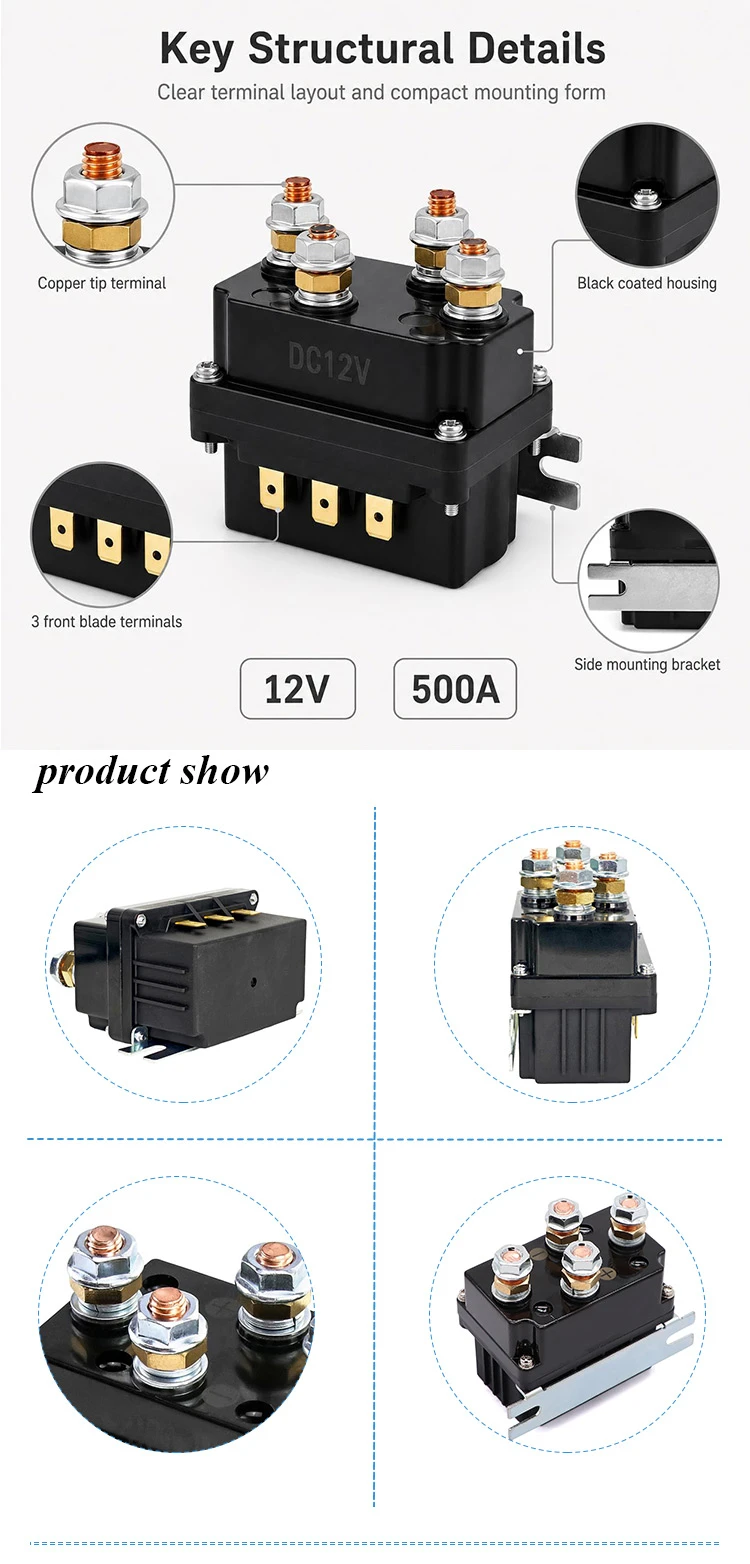

Winch-Solenoid-Relays-2

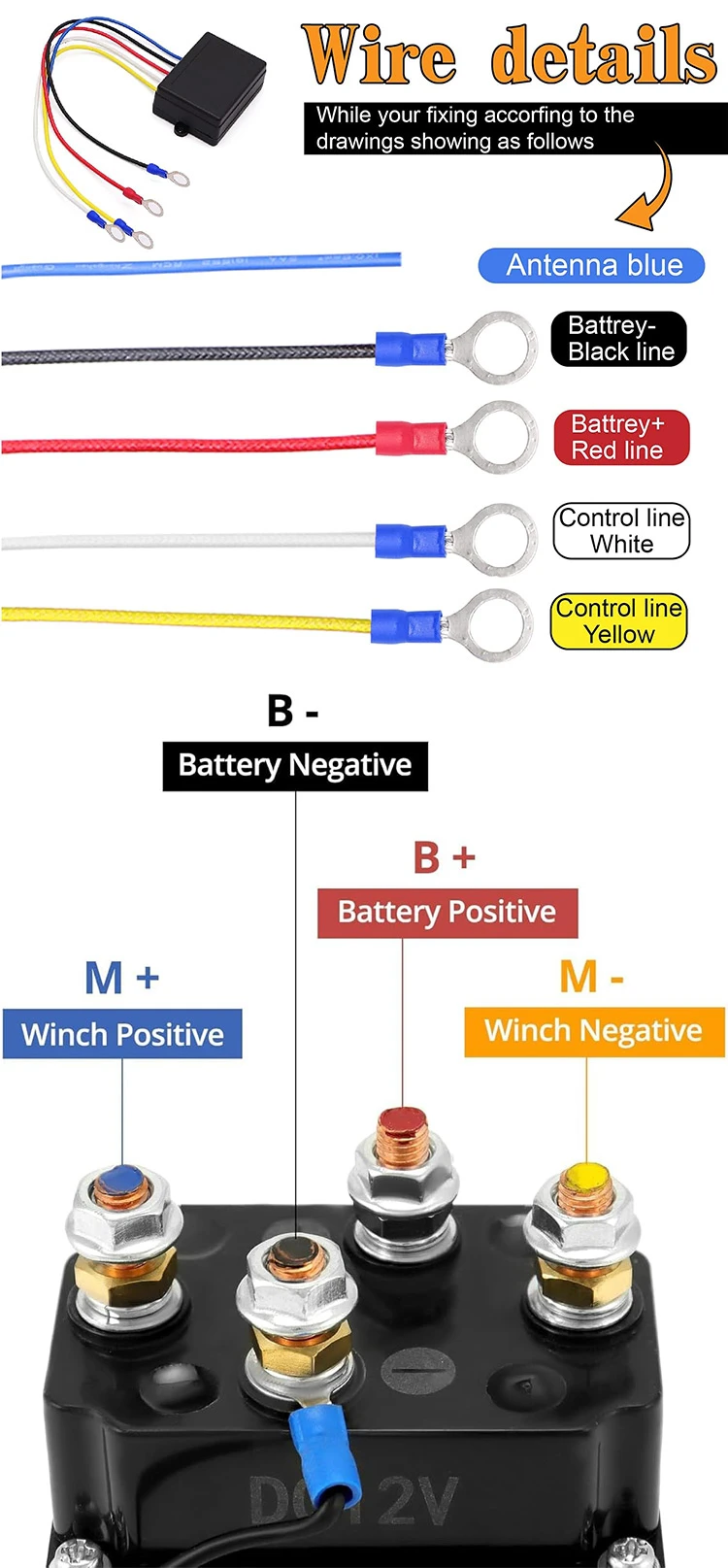

Wire-Detail

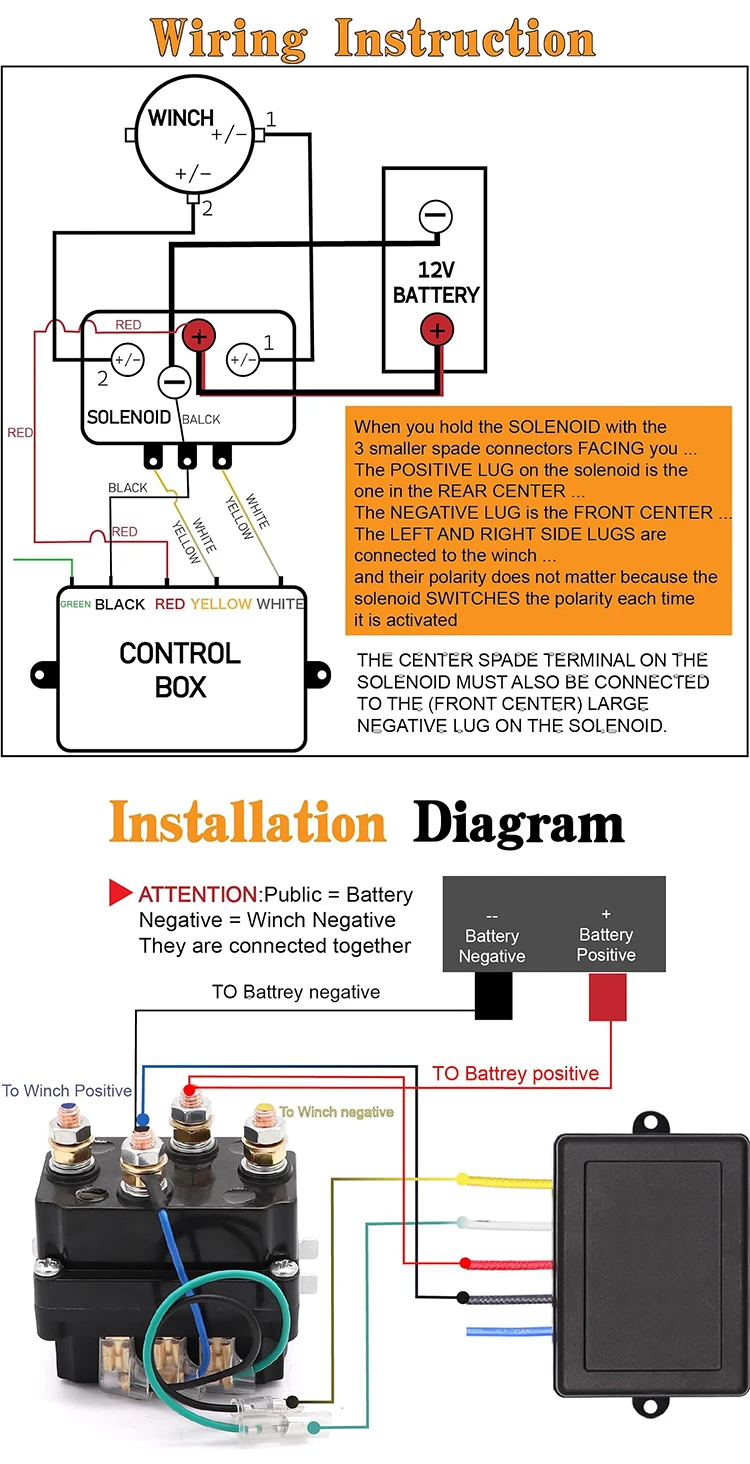

Installation-Diagram

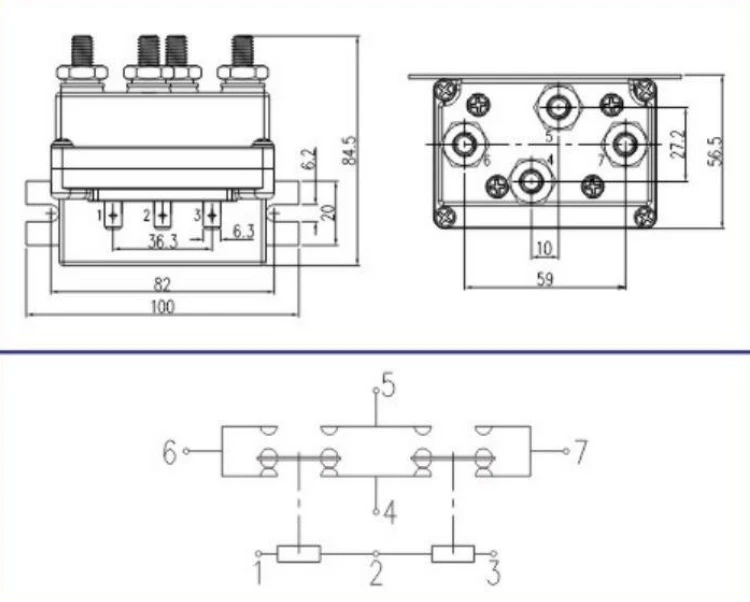

exterior-shape-dimensions

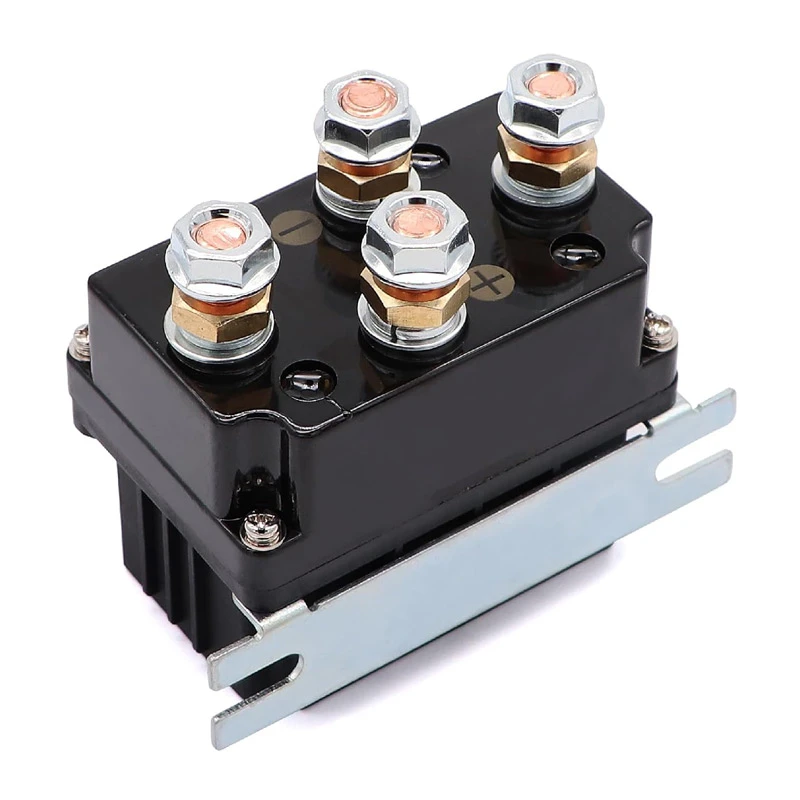

71Nh6g72WvLACSL1500

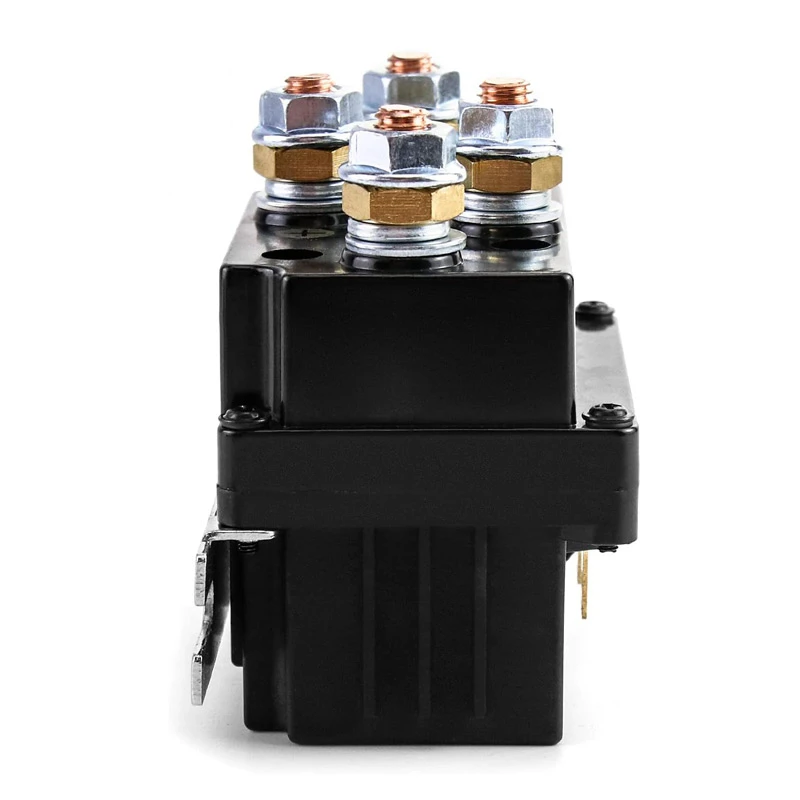

61qCNg8uV-L

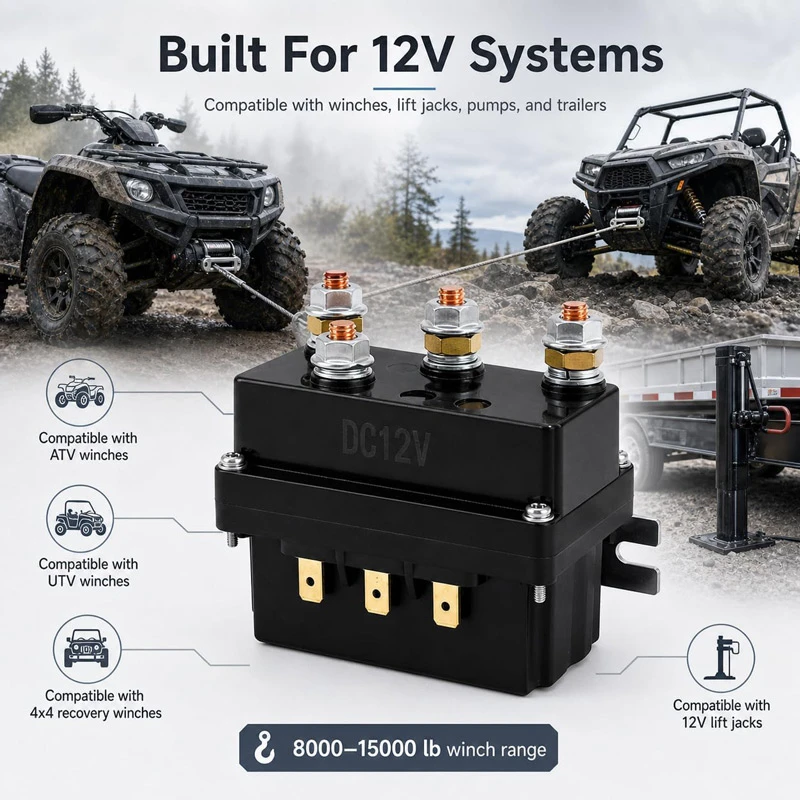

Winch-Solenoid-Application

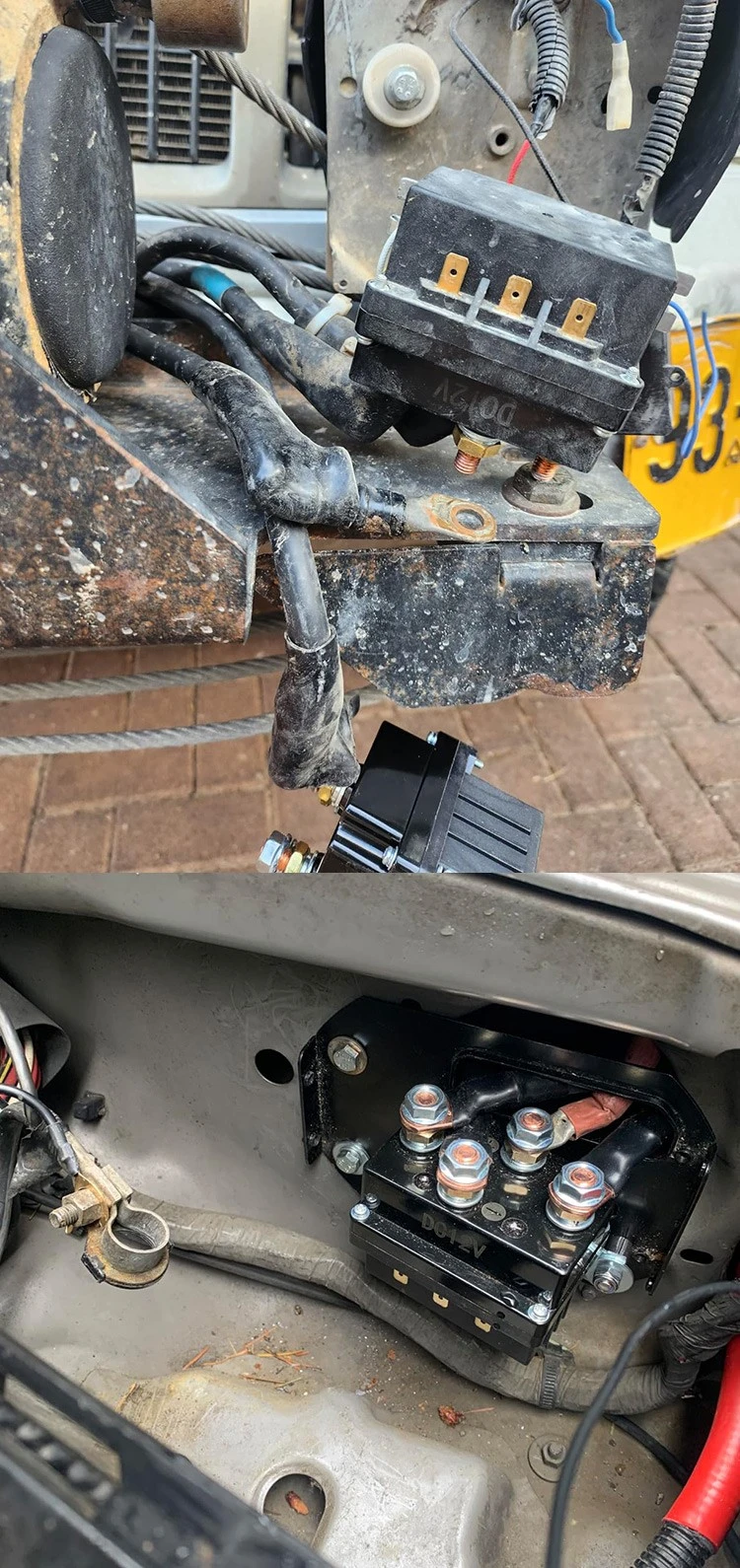

application

fuse-holder-application

This 12V 600A Heavy Waterproof Winch Solenoid Relay protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps. Ideal for harsh environments and main circuit protection of large size battery banks. Switchable surface mount circuit breakers typically found in auxilliary and accessory circuits in trucks, buses, motorhomes, marine, boat, RV, caravan, winch, tractor, ATV systems.
