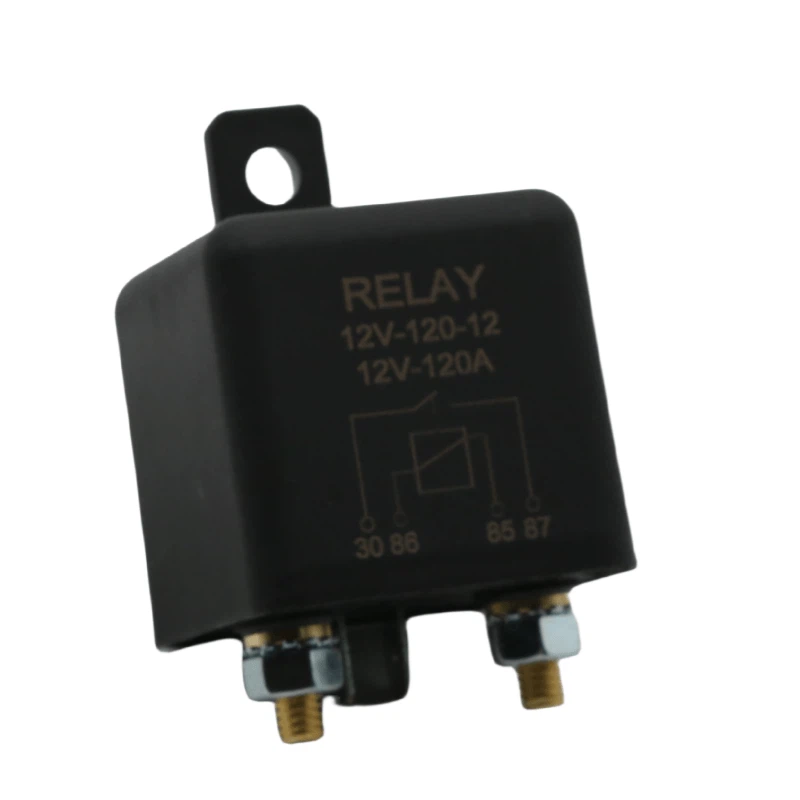

12V Auto Relay 4 Pin Normally Open Heavy Duty Car Start Relay
The heavy-duty 'Make & Break' relay is ideal for On/Off applications requiring the switching of higher currents from a low-power source. This relay is normally open, meaning it has an open circuit when at rest. Its integrated fixed bracket facilitates easy mounting. Additionally, it can serve as a split charging relay by wiring the coil to an ignition feed or to a source that becomes live when the alternator is charging.
12V 200A Normally Open 4 Pin Relay - Heavy Duty Automotive Marine Split Charge
High Power Relay
automotive heavy duty high current automobile starter power auto car starting relay
car truck boat switch 24v dc 120a spst 4pin relay heavy duty split charge starter relay with terminal
Product details of 12V 200A Normally Open 4 Pin Relay - Heavy Duty Automotive Marine Split Charge
This heavy-duty 'Make & Break' relay is designed for On/Off applications requiring the switching of high currents from a low-power source. It features a Normally Open configuration, meaning it has an open circuit when not activated. The integrated fixed bracket allows for easy mounting. Additionally, it can function as a split charging relay by connecting the coil to an ignition feed or a source that becomes live during alternator charging.
Key Specifications:
Studs: M6 studs for the switched high-current circuit, supplied with lock washers and nuts.
Sold: Supplied individually.
Voltage Rating: 12V.
Current Rating: Up to 200A.
Terminal Configuration: Standard four terminals.

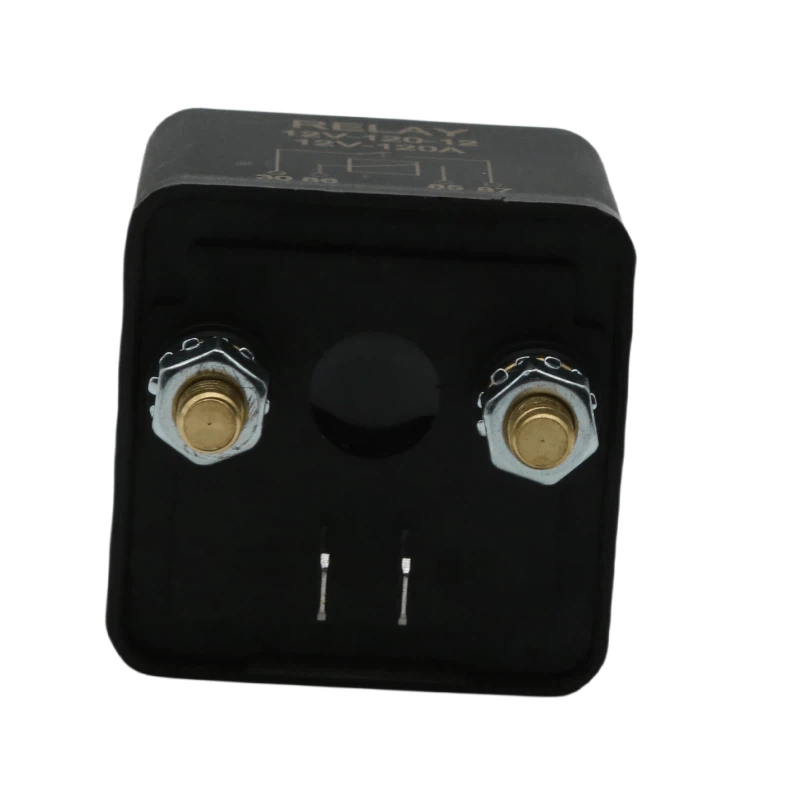

Terminal Size:
2 x 6.3mm Male Lucar Terminals (Pins 85 & 86)
2 x M6 Studs (Pins 30 & 87)
Bracket Type: Fixed
Mounting Hole Size: 6mm
Dimensions (LxWxH, Including Terminals): 45x45x60 mm
Color: Black
Material: ABS + Metal
Package Contents:
1 x 12V 200A Normally Open 4 Pin Relay
Appliances
Applications of 12V 100Amp 4 Pin Heavy Duty On-Off Car Switch Split Charging Relay and Harness Socket Set Multipurpose Relay
Automotive: Ideal for controlling high-current circuits such as starter motors, headlights, and auxiliary equipment in cars, trucks, and recreational vehicles.
Marine: Suitable for use in boats to manage electrical loads and ensure reliable operation of critical systems.
Industrial: Can be used in machinery and equipment to control high-current circuits with precision and safety
Installation Instructions:
Mounting: Secure the relay to a suitable surface using the fixed bracket and appropriate fasteners. Ensure the mounting surface is clean and stable.
Wiring:
Connect the 6.3mm male Lucar terminals (Pins 85 & 86) to the control circuit. Typically, Pin 85 is connected to the ground, and Pin 86 is connected to the trigger source, such as an ignition feed or alternator output.
Connect the M6 studs (Pins 30 & 87) to the high-current load and power source. Ensure all connections are tight and secure to prevent overheating and ensure optimal performance.
Safety Precautions:
Disconnect Power: Always disconnect the battery or power source before installing or servicing the relay to avoid electrical shock or short circuits.
Proper Insulation: Ensure all electrical connections are properly insulated to prevent accidental contact and potential short circuits.
Check Ratings: Verify that the relay's voltage and current ratings match the requirements of your application to prevent damage and ensure safe operation.
Maintenance:
Regular Inspection: Periodically check the relay and all connections for signs of wear or damage. Replace any worn or damaged components immediately.
Clean Connections: Ensure that all terminal connections are clean and free of corrosion. Use appropriate contact cleaners and protective sprays to maintain good electrical contact.
Additional Information:
This relay is designed for durability and reliability, making it a dependable choice for both professional and DIY projects. Whether you are installing it in a vehicle, boat, or piece of industrial equipment, its robust construction and high current rating ensure it will perform effectively under various conditions.By following these guidelines and taking proper care of the relay, you can ensure it provides long-lasting and efficient service in your high-current switching applications.
