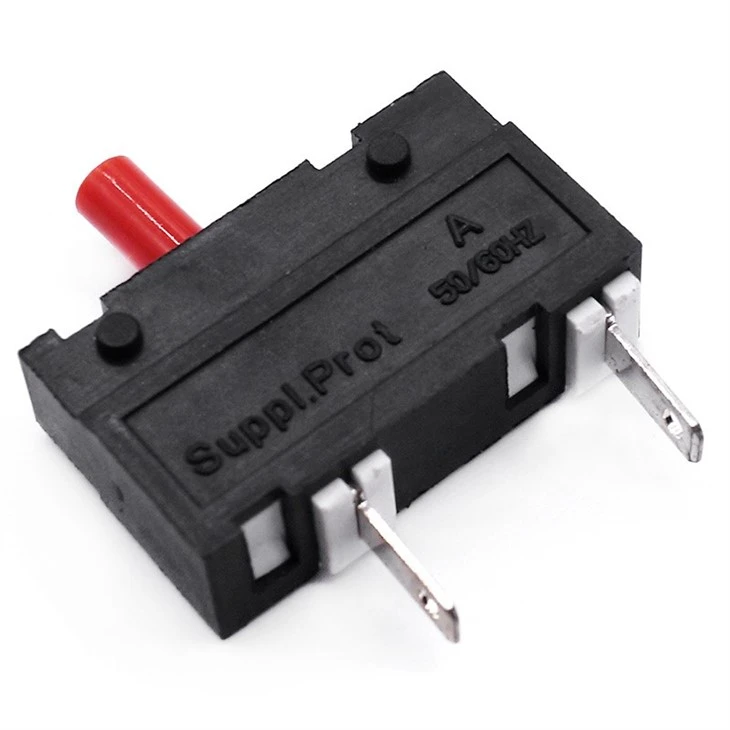

Name: China 91 Series Thermal Mini Circuit Breaker Switch Push To Reset Overload Protector For Motor Manufacturers Suppliers Factory
Brand: Senreach
SKU: 308827199

The Description of 91 Series Thermal Mini Circuit Breaker Switch Push to Reset & Manual Reset 125V 250V AC 50VDC Overload Protector for Motors

61rPP4JWYbLSL1500

91 Series Thermal Mini Circuit Breaker Switch Push to Reset & Manual Reset 125V 250V AC 50VDC Overload Protector for Motors

•DC CIRCUIT BREAKERS
•POWER BREAKER
•MAIN BREAKER

-Applied to solar system, inverter, new energy vehicles, trucks, forklift and other devices.

-The circuit breaker uses temperature control and reset arm to achieve the reusable function, enables the breaker to play the
same role as switches.

91-Series-Push-to-Reset-Thermal-Mini-Circuit-Breaker-Switch-Manual-Reset-125V-250V-AC-50VDC-Overload-Protector-for-Motor-4

1. Bakelite material,good insulation, heat resistance and corrosionresistance.
2. High quality copper material with good electrical conductivity, oxidation resistance and abrasion resistance.
3. 91 Series circuit breakers sease Overload conditions and interupt the flow of Current. The resettable actuator mechenism then remains disengaged until manually reset.
4. This manual reset circuit breaker is a "snap-in" panel mount style. Often found on equipment cases and panels. This resettable circuit breaker is often used to replace fuse holders in existing equipment, and fits into many standard fuse-holder cutouts.

Product Name	91 Series Push to Reset Thermal Mini Circuit Breaker Switch	Model Number	91 Series Thermal Circuit Breaker
Type	Push-to-Reset Plug-in Type Thermal Circuit Breaker	Reset Type	Manual Resettable
Rated Voltage	125/250VAC; 50VDC	Rated Current	0.5A-10A
Material	Bakelite	Termination	110"(2.8mm) quick connects or solder terminals
Dielectric Strength	>1500VAC / min.	Insulation Resistance	> 100MOHM ( DC 500V )
Degree of protection	Terminal area IP00, operating area IP40	Insulation Resistance	>100MΩ
Certification	UL+cUL, TUV	Application	Tarnsforms, Motors, Battery chargers, Power supplies, appliances, extra low voltage systems, machinery

91-Series-Breaker-2

exterior-shape-dimensions

91-Series-Push-to-Reset-Thermal-Mini-Circuit-Breaker-Switch-Manual-Reset-125V-250V-AC-50VDC-Overload-Protector-for-Motor-6

91-Series-Push-to-Reset-Thermal-Mini-Circuit-Breaker-Switch-Manual-Reset-125V-250V-AC-50VDC-Overload-Protector-for-Motor-5

91-Series-Push-to-Reset-Thermal-Mini-Circuit-Breaker-Switch-Manual-Reset-125V-250V-AC-50VDC-Overload-Protector-for-Motor-3

91-Series-Breaker-3

fuse-holder-application

This 91 Series Thermal Mini Circuit Breaker Switch is used in winch, tractor, automobile, charging pile, new energy, outdoor circuit protection, electric wheelchairs, cars, truck, villas, saloon cars, automobiles, buses, subways, eco-car, modified car, car modification, forklift, trailer, golf cart, yachts, boats, marine, tankers, ships, SUVs, UTVs, ATVs, RVs, vans, saloon, jeeps, motorcycles, vintage engines, off-road cars, caravan, campers, construction, farm equipment, industrial machinery wiring harnesses, automobile electrical appliances, automobile amplifiers, automobile refrigerators, automobile DVDs, etc.

Auto fuse application

Founded in 2011, Dongguan Senreach Electronics Co., Ltd. is a professional circuit protection component manufacturer and solution supplier in China. We have 20 years of experience in manufacturing fuses, fuse holders, circuit breakers, thermal protectors, ntc sensors, etc.

We have a variety of advanced manufacturing and testing equipment. With the adoption of excellent quality management system, we make sure that each of our components are safe and stable. Senreach has passed ISO9001:2000 quality management system certification, and its products meet international standards including UL, UR, CSA, BSI, CUL, VDE, TUV, PSE, CE, CCC, ROHS certification etc.

We specialize in developing, manufacturing and selling over current, over temperature and over voltage circuit protection components of various properties, types and specifications. Products are widely used in consumer electronics, automobiles, ships, communication devices, power supplies, new energy, photovoltaic and other fields.
