Products Description
The Description of Time Delay Class RK5 FRS-R Series Fuses 30A Quick Response for Solar Photovoltaic Construction Industrial Machinery

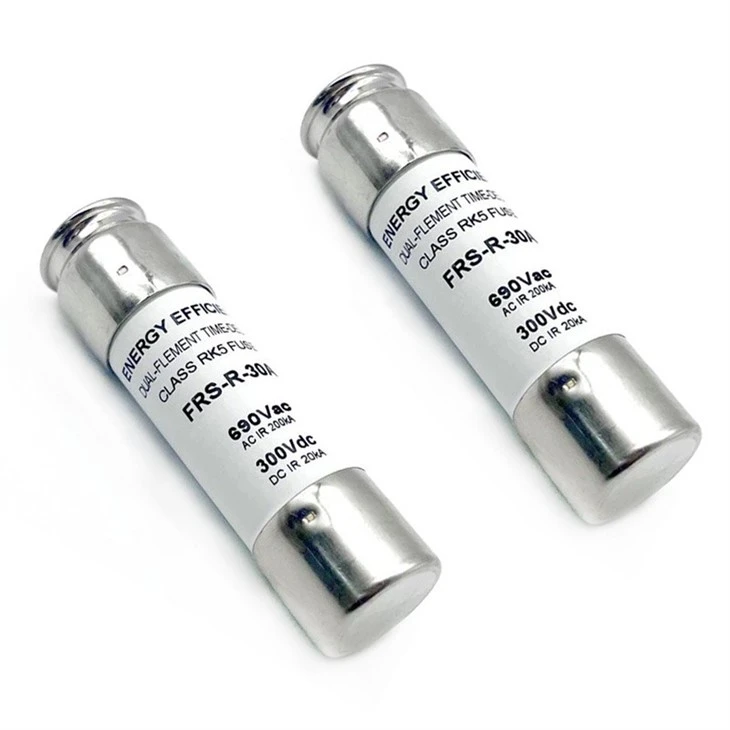

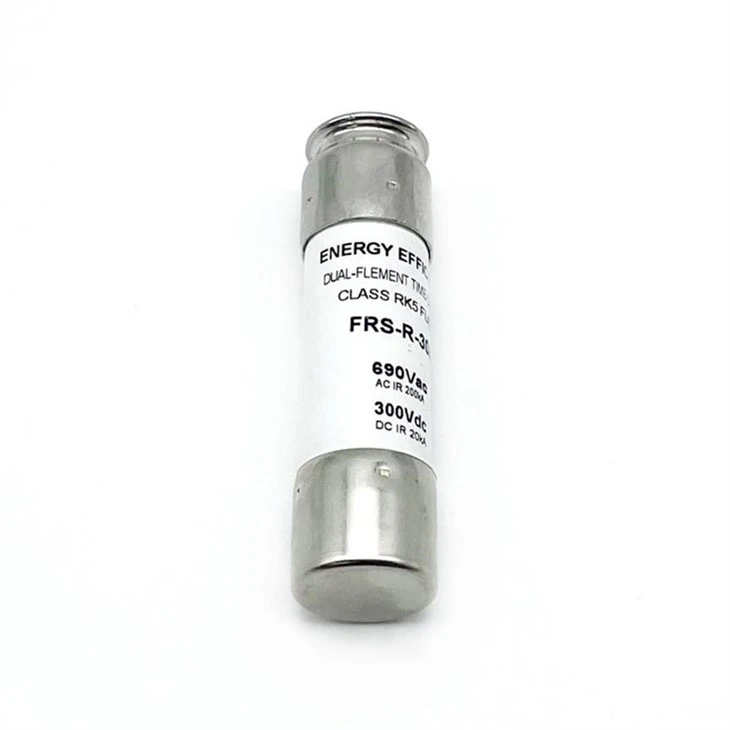

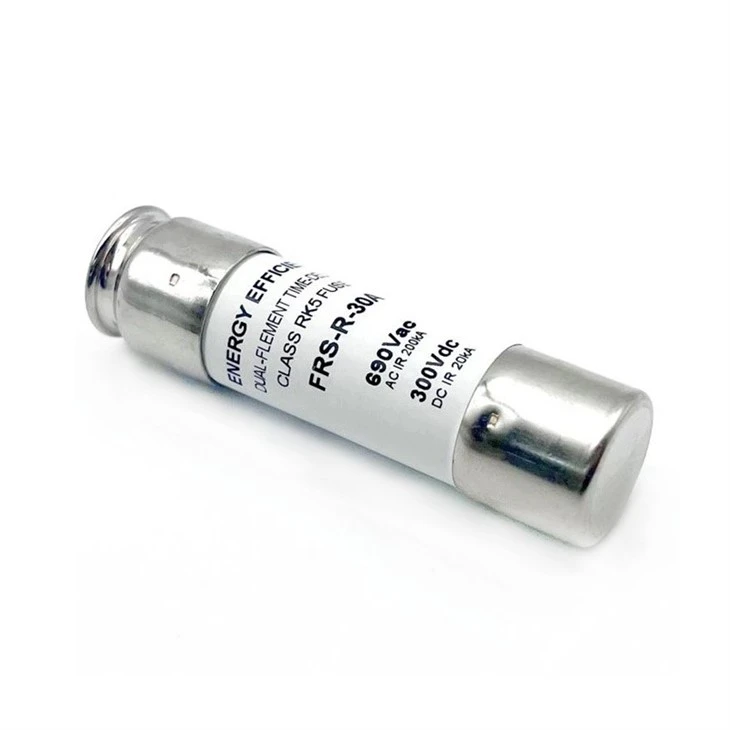

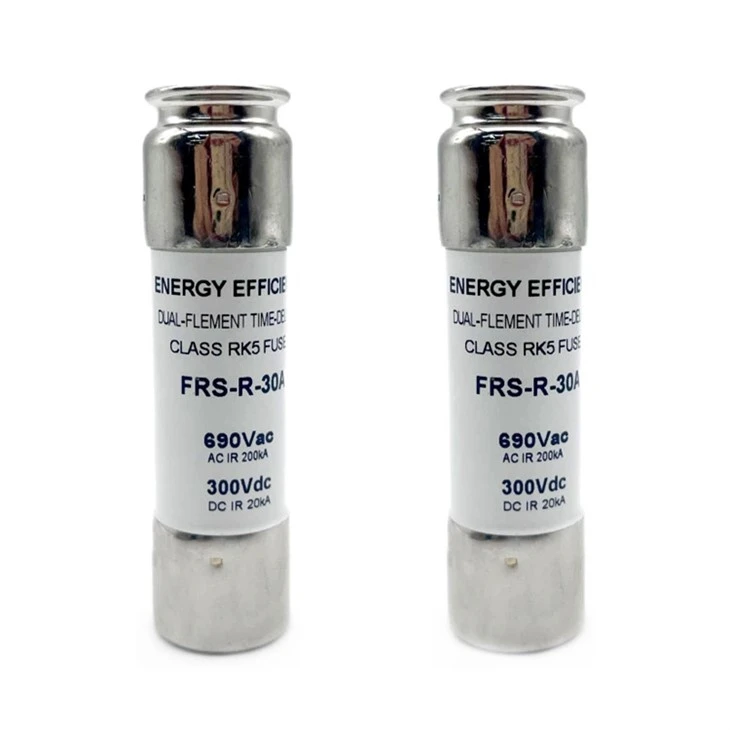

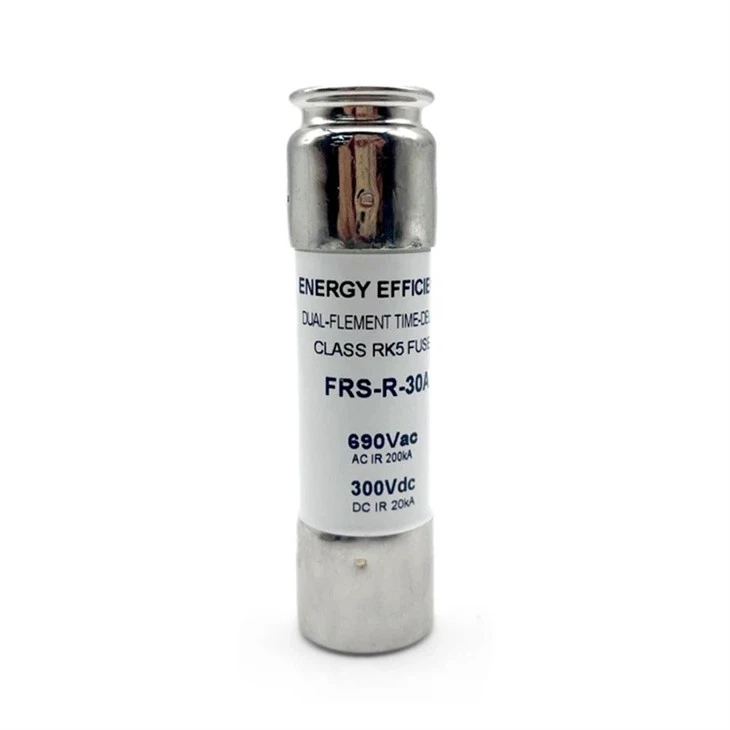

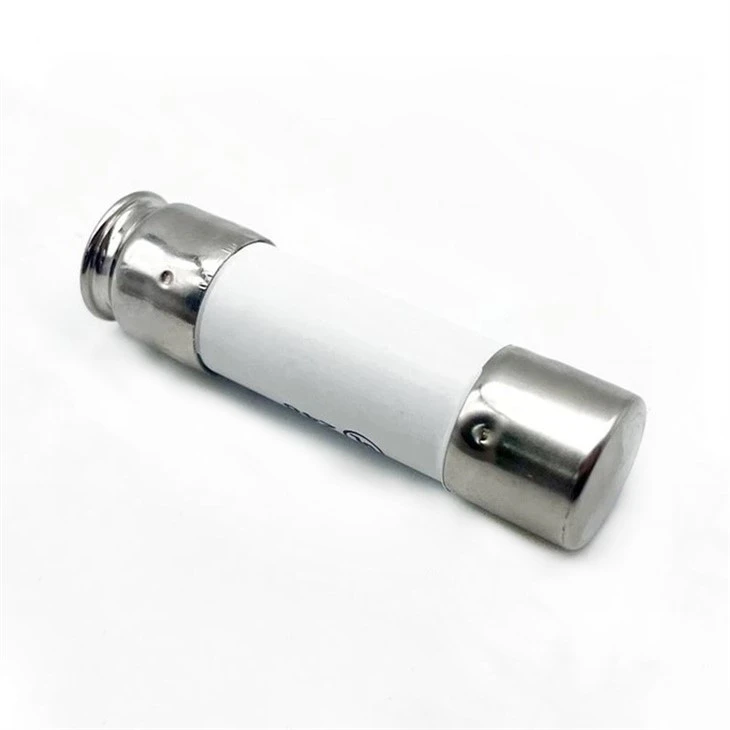

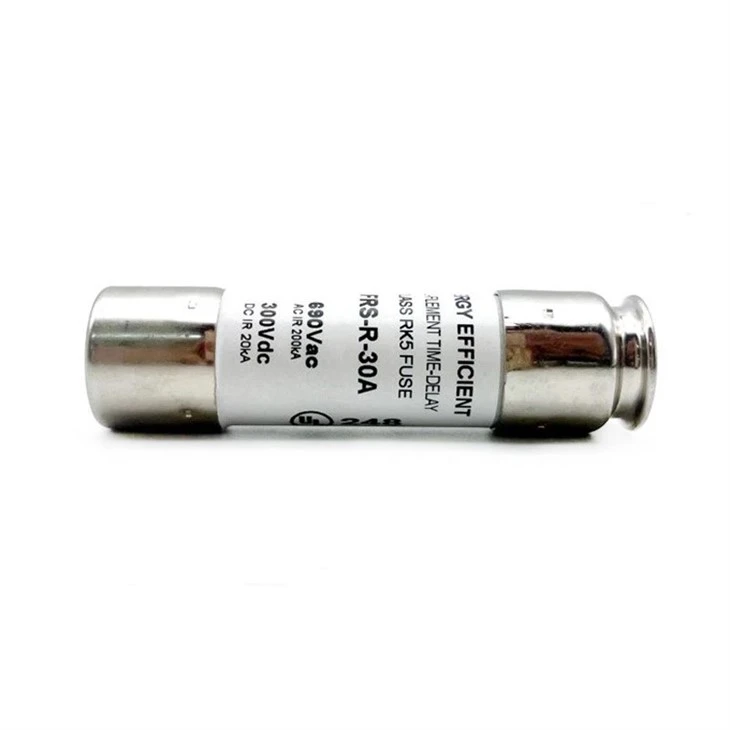

Time Delay Class RK5 FRS-R Series Fuses 30A Quick Response for Solar Photovoltaic Construction Industrial Machinery
--SPECIALLY USED FOR POWER SYSTEM
--ENGINEERING CERAMIC TUBE, NICKEL PLATED COPPER CAP
--ROHS COMPLIANT, LEAD FREE AND HALOGEN FREE
-Applied to solar system, inverter, PV combiner, juction boxes, battery charge controllers.
-- 1000Vdc 1500Vdc fuse specially used for photovoltaic and solar panel applications.
-- Engineering ceramic tube, double copper cap, nickel plated copper cap
-- High strength porcelain body and high purity ceramics. With better electrical conductivity and thermal conductivity, high temperature-resistance, good corrosion-resistance
-- Lead free material. Pure T2 Copper Element
-- Low power loss
-- Excellent DC performance
-- Low arc voltage and low energy let-through(I²t)
-- High Breaking, Anti-oxidation, Anti-pulse, Anti-pulling arc
-- Designed to UL2579 and IEC60269‐6. RoHS compliant, Lead free and halogen free
-- Capable of interrupting low overcurrents associated with faulted PV
-- High Purity Quartz Sands. SiO2≥99.99% properiate density quartz sands extracted from China sea coast, through special chemical treatment with finer granules and better arc extinguishing performance.
Product Parameter
|
Rated Current |
10A To 30A |
|
Rated Voltage |
690Vac, 300Vdc |
|
Model |
Screw Type Fuse Link |
|
Material |
Lead Free |
|
Body Material |
Engineering Ceramic Tube |
|
Cap Material |
Nickel Plated Copper Cap |
|
Main Color |
Silver, White |
|
Mounting Style |
Bolted fixing |
|
Fuse Type |
Time-delay |
|
Type |
Ozone Generator, EV, Solar, Industrial Power, Photovoltaic Fuses |
|
Time-delay |
10 second (minimum) at 500% of rated current |
|
Time Constant |
<1ms |
|
Breaking Capacity |
50kA Max |
|
Frequency |
50HZ |
|
Interrupting Rating |
200 kA Vac RMS Sym / 20 kA Vdc |
|
Feature |
Quick Response, High Voltage Current-Limiting Fuse |
|
PV Fuse Coordination w |
Thin film cells and 4", 5" and 6" crystalline silicon cells. |
|
Application |
Electrical systems, Commercial buildings, Industrial machinery, PV, Solar, power system |
|
Certification |
UL2579, IEC60269‐6, UL, IEC, ROHS |
Product Details
Products Details
The variable cross-section melt made of pure copper/silver sheet (or wire) is encapsulated in a melt tube made of high-strength porcelain; the melt tube is filled with chemically treated high-purity quartz sand as the arc extinguishing medium. There is a fuse indicator on the fuse end cap. When the fuse is blown, the indicator pops up immediately, indicating that the fuse has been blown.
RK5 FRS-R Series Fuse Link Dimension
RK5 FRS-R Series Fuse Link
More details
Fuse Link Application
Widely Application: The Cylindrical Ceramic Fuse is mainly used for PV combiner, Juction boxes, Inverters, Battery charge controllers, Industrial, Industry, Construction, Power systems, Solar photovoltaic, etc.
