Products Description
The Description of 5x20mm 5.500 Series Ceramic Tube Fuse Fast Blow 250V 550V 20A Current Limited for Power Supply

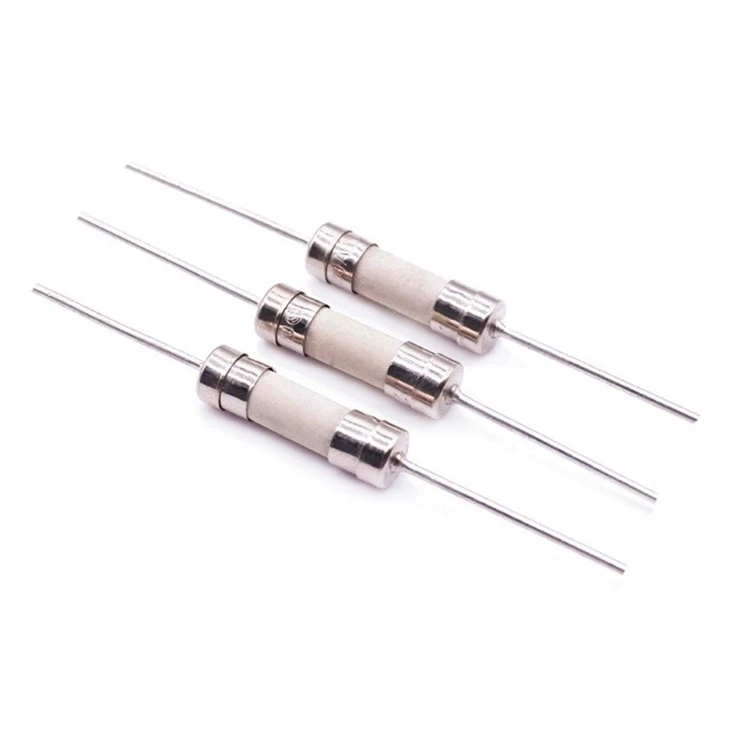

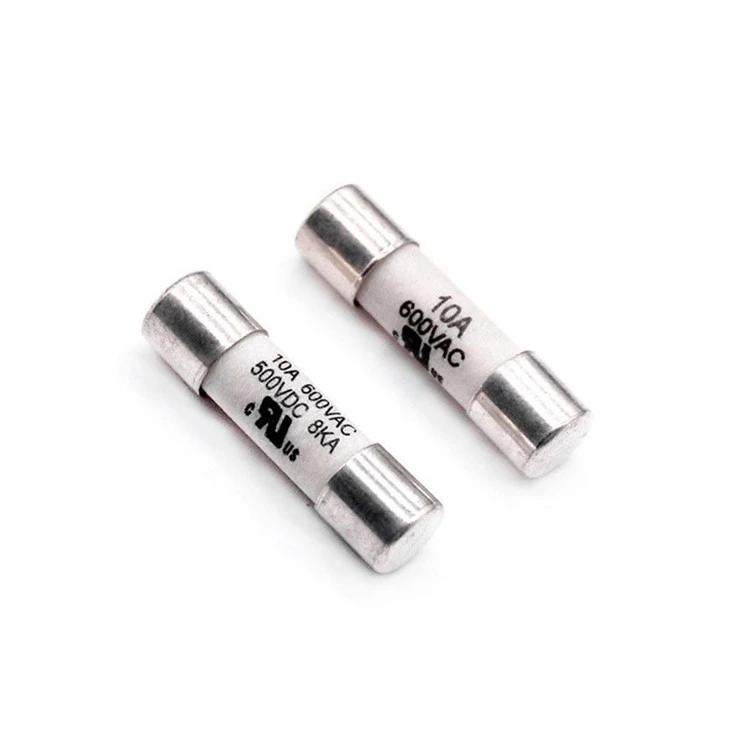

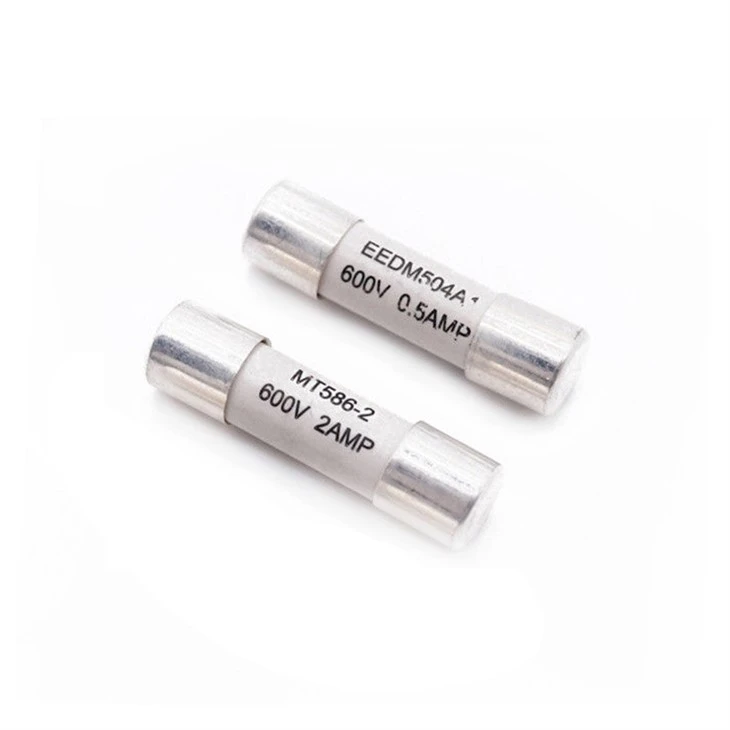

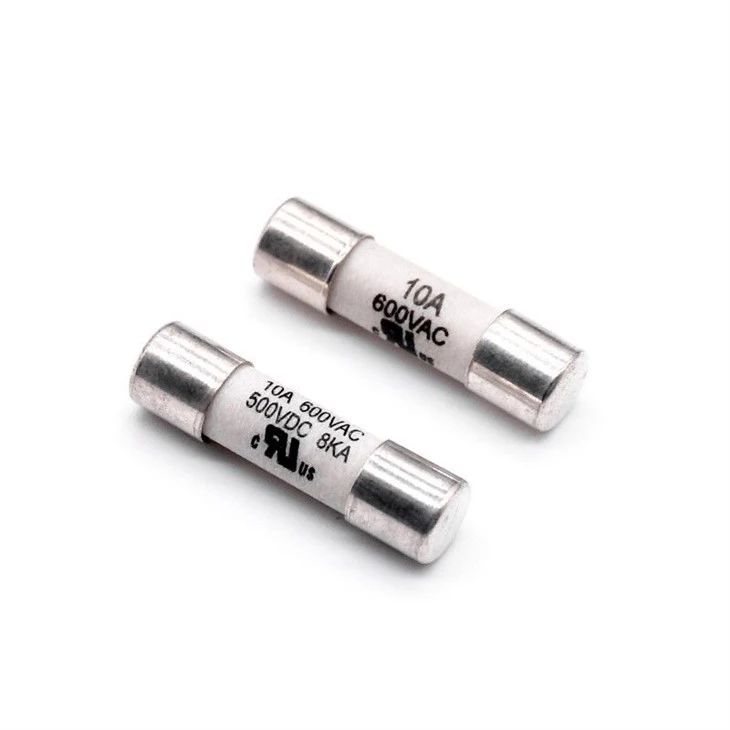

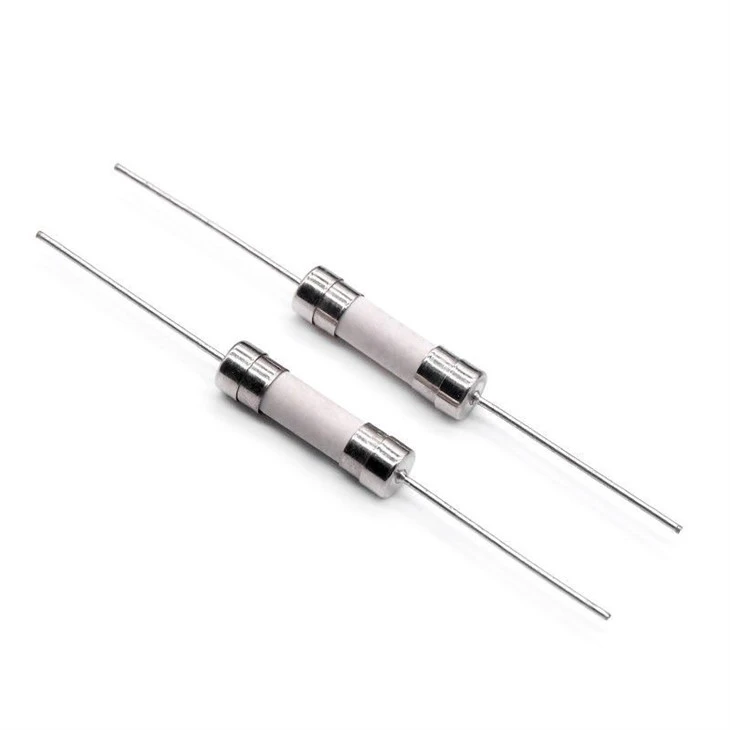

5x20mm 5.500 Series Ceramic Tube Fuse Fast Blow 250V 550V 20A Current Limited for Power Supply
--SPECIALLY USED FOR POWER SYSTEM
--ENGINEERING CERAMIC TUBE, NICKEL PLATED COPPER CAP
--ROHS COMPLIANT, LEAD FREE AND HALOGEN FREE
-Applied to solar system, inverter, PV combiner, juction boxes, battery charge controllers.
-- 10x85mm physical size
-- 1000Vdc 1500Vdc fuse specially used for photovoltaic and solar panel applications.
-- Engineering ceramic tube, nickel plated copper cap
-- Lead Free material
-- Designed to UL2579 and IEC60269‐6. RoHS compliant, Lead free and halogen free
-- Capable of interrupting low overcurrents associated with faulted PV
Product Parameter
|
Rated Current |
1A To 30A(1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,30A) |
|
Rated Voltage |
1500Vdc |
|
Material |
Lead Free |
|
Body Material |
Engineering Ceramic Tube |
|
Cap Material |
Nickel Plated Copper Cap |
|
Type |
Solar, Power System, Photovoltaic Fuses |
|
Size |
10x85mm |
|
Printing |
Printing Customizable Fuses |
|
Breaking Capacity |
DC 33kA |
|
Min Interrupting Rating |
1.35 x In |
|
Time Constant |
<1ms |
|
PV Fuse Coordination w |
Thin film cells and 4", 5" and 6" crystalline silicon cells. |
|
Operating class |
gPV and UL PV fuse link for Solar protection |
|
Application |
Solar Panel, Photovoltaic, Power System, Industrial |
|
Certification |
UL2579, IEC60269‐6, UL, IEC |
Product Details
Products Details
The variable cross-section melt made of pure copper/silver sheet (or wire) is encapsulated in a melt tube made of high-strength porcelain; the melt tube is filled with chemically treated high-purity quartz sand as the arc extinguishing medium. There is a fuse indicator on the fuse end cap. When the fuse is blown, the indicator pops up immediately, indicating that the fuse has been blown.
10x85mm 1500V DC Solar Type HRC Cylindrical Fuse Dimension
10x85mm 1500V DC Solar Type HRC Cylindrical Fuse
More details
Fuse Link Application
Widely Application: The Cylindrical Ceramic Fuse is mainly used for PV combiner, Juction boxes, Inverters, Battery charge controllers, Industrial, Industry, Construction, Power systems, Solar photovoltaic, etc.
