Products Desc.

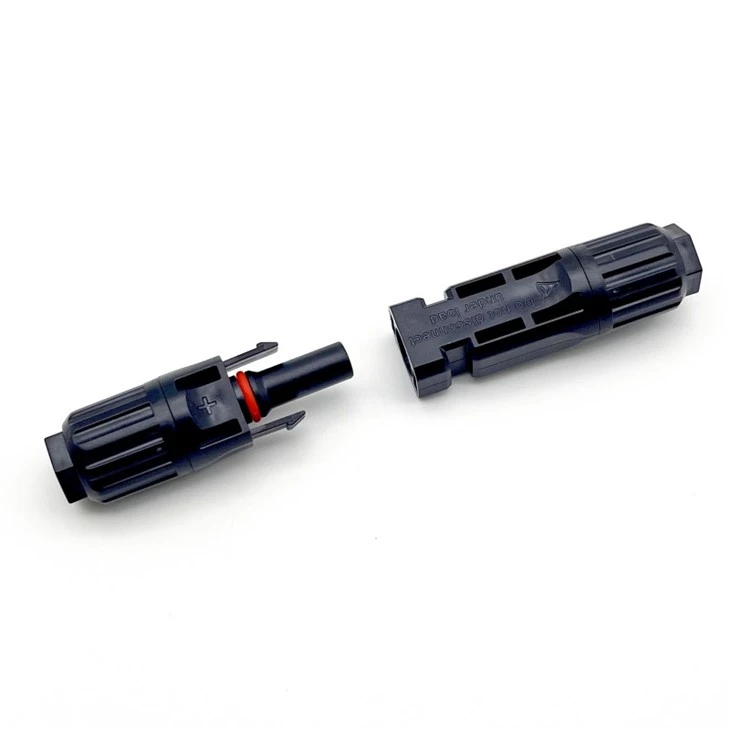

IP67 Waterproof Solar Power Cable Connectors are a type of electrical connector commonly used in photovoltaic (PV) systems, specifically for connecting solar panels. These connectors are designed to provide a reliable and weather-resistant connection between solar panels, ensuring efficient energy transfer. It consists of a male and a female connector, and they are known for their easy and quick installation process. The connectors use a snap-in locking mechanism, making them secure and resistant to accidental disconnection.
Features of 1500V IP67 Solar Connector
1. Voltage Rating (1500V DC): This indicates that the connectors are designed to handle direct current (DC) voltages up to 1500 volts. This high voltage rating is suitable for solar power systems that operate at elevated voltages.
2. Insulation Material: PPO is known for its excellent electrical insulating properties, resistance to aging, and durability. It can withstand prolonged exposure to sunlight (UV endurance) and adverse weather conditions.
3. Terminal Material (Tin-plated Copper): The terminals, where electrical connections are made, are constructed from tin-plated copper. Tin plating enhances conductivity and provides corrosion resistance.
4. Locking System (Snap-in): The snap-in locking system facilitates a quick and secure connection between the male and female connectors, ensuring a reliable electrical link. This design helps prevent accidental disconnection.
5. Solar Male/Female Connectors: The connectors are designed to work together, with a male and female component for secure and proper electrical connections.
6. Compatible with Different Insulation Diameters (2.5mm² to 6mm² / 14AWG to 10AWG): This feature accommodates a range of wire sizes, providing flexibility in installation and compatibility with various solar panel configurations.
Product Parameter
| Product name: | 1500V IP67 Waterproof Solar Power Cable Connectors | Connector system: | φ4mm |
|
Rated Voltage: |
1500V DC | Rated Current: | 30A, 45A,60A |
| Locking System: | Snap in | Upper limiting Temp: | +105℃(IEC) |
| Matreial: | Red Copper, PPO Plastic | Safety Class: | Class II |
| Flame Class: | UL94-V0 | Degree of Protection: | IP67 mated |
Products Details
Installation
Factory Tour
Our factory, Dongguan Senreach, covers an area of 4,000 square meters and has a monthly production capacity of 50 million pieces. We specialize in the design, development, manufacturing, and distribution of advanced solutions for safeguarding against over-current, over-temperature, and over-voltage situations. Our extensive range of products finds broad applications in various industries such as consumer electronics, automotive, marine, telecommunications, power supplies, power tools, renewable energy, and more. Our comprehensive product portfolio includes a variety of offerings such as automotive fuses, fuse holders, current fuses, current fuse holders, temperature fuses, SMD fuses, resettable fuses, circuit breakers, thermal switches, and more.
With a commitment to meeting international standards, our products carry certifications such as UL, UR, CSA, BSI, CUL, VDE, TUV, PSE, CE, CCC, and ROHS, ensuring compliance with strict quality and safety requirements.
Our commitment to excellence and customer satisfaction sets us apart. We understand the critical role these electrical components play in ensuring the safe and efficient operation of various systems and equipment. That's why we adhere to rigorous quality standards and utilize advanced manufacturing processes to produce products of exceptional reliability and durability.
