Products Desc.
In solar PV installations, 1000V DC PV Solar Panel MC4 Connectors play a crucial role in connecting solar panels and other components of the solar power system.
Features of 1000V PV Connector
1. 1 Pair Configuration: Typically, in solar installations, a pair of connectors consists of one male (positive) connector and one female (negative) connector. This configuration ensures correct polarity when connecting solar panels.
2. Compatibility with Different Solar Cables: The connectors are designed to be compatible with PV cables ranging from 2.5mm² to 6mm². This flexibility allows them to be used with a variety of solar panel installations.
3. Insulation Material - PPO/PPE: PPO (Polyphenylene Oxide) and PPE (Polyphenylene Ether) are engineering plastics known for their excellent electrical insulation properties. They also exhibit resistance to aging and UV radiation, making them suitable for outdoor use in solar installations.
4. Aging Resistance and UV Resistance: The insulation material's resistance to aging and UV radiation is crucial for ensuring the long-term durability and reliability of the connectors in outdoor environments where they are exposed to sunlight.
5. IP67 waterproof: the product adopts high-strength waterproof ring, insulating gel, waterproof and dustproof, IP67 protection grade, not afraid of getting wet in rainy days.
6. Self-locking structure: Solar panel connection is connected by pressing mode, male and female head with self-locking structure, open and close freely. This feature allows for easy and secure assembly without the need for additional tools.
Product Parameter
| Product name: | 1000V DC PV Solar Panel Connectors | Size: | 7 x 5 x 3 cm |
|
Rated Voltage: |
TUV 1000V DC / UL 600V DC | Rated Current: | 30A |
| Contact Resistance: | ≤0.5mΩ | Insulation Resistance: | >500MΩ |
| Mounting Type: | Panel Mount | Termination Method: | Crimp |
| Matreial: | Copper Pin, PPO Plastic | Safety Class: | II |
| Thread Size: | M12 | Pin Dimension: | Φ4.0mm |
| Flame Class: | UL94-V0 | Degree of Protection: | IP67 mated |

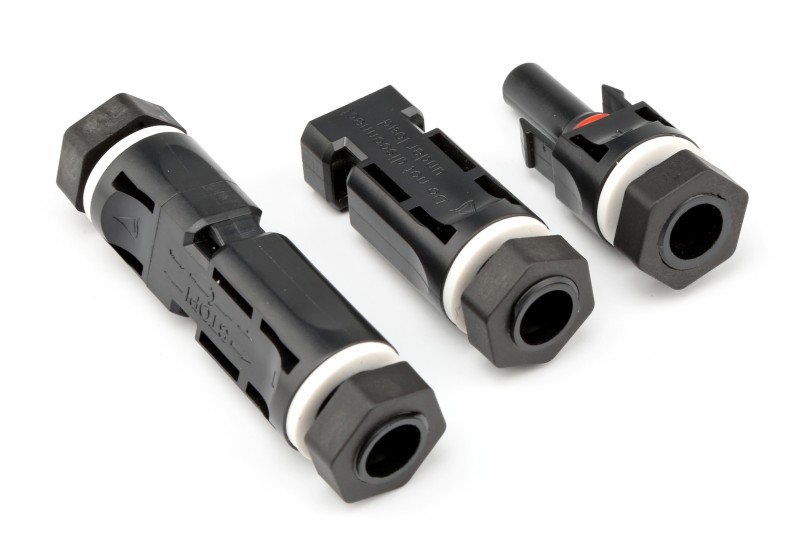

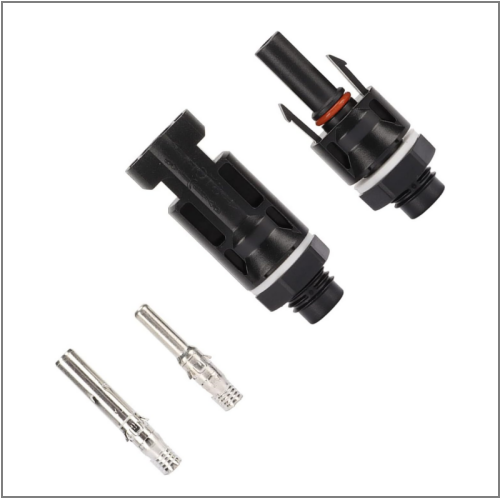

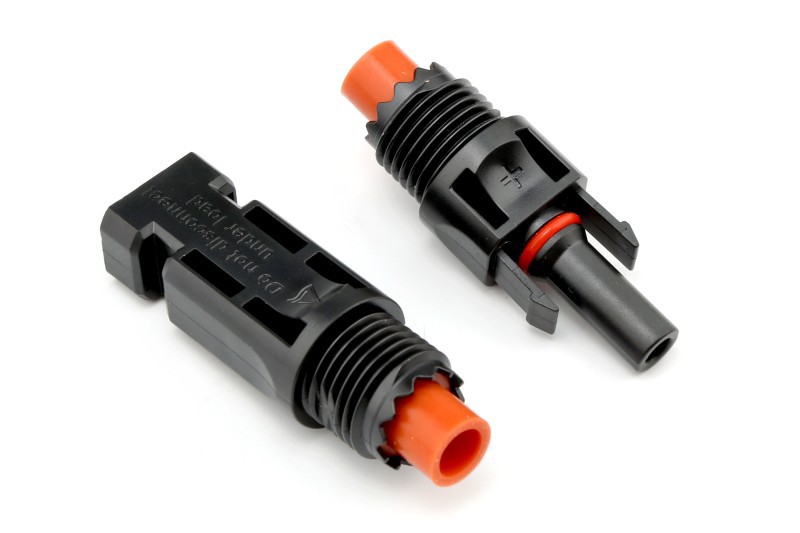

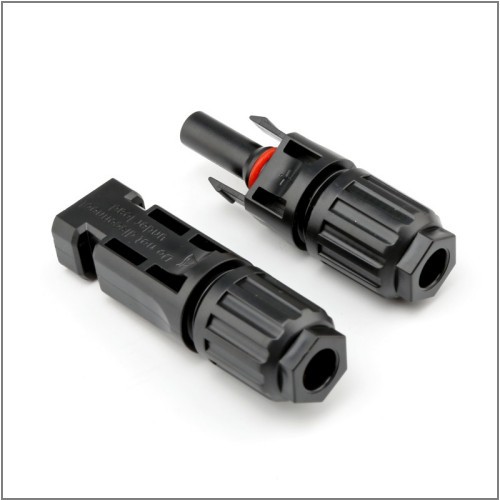

Products Details
Products Application
1. Solar PV Installations: The primary application of 1000V DC PV Solar Panel Connectors is in solar photovoltaic (PV) installations. These connectors are used to establish electrical connections between solar panels, creating a reliable and efficient network to harness solar energy.
2. Outdoor Solar Power Systems: Due to features such as radiation resistance, temperature resistance, flame retardancy, and IP67 waterproof rating, these connectors are ideal for outdoor solar power systems. They can withstand exposure to sunlight, extreme temperatures, and adverse weather conditions.
3. Residential Solar Panels: These PV Solar Panel Connectors are suitable for residential solar panel installations, where they provide a secure and durable connection between individual solar panels and the overall solar power system.
4. Commercial and Industrial Solar Projects: Large-scale solar projects, whether on commercial or industrial properties, often require connectors with high strength, compatibility, and weather resistance. These connectors can be used in such projects to ensure reliable and long-lasting connections.
5. Solar Street Lighting Systems: Solar street lights often use solar panels to generate power. Connectors with strong compatibility and weather-resistant features can be employed in the wiring of these solar street lighting systems.
