Description
The High Amperage ANL Fuse Holder can be utilized in applications with up to 500A fuse. Cost-effective solutions for fusing up to 500 amps.

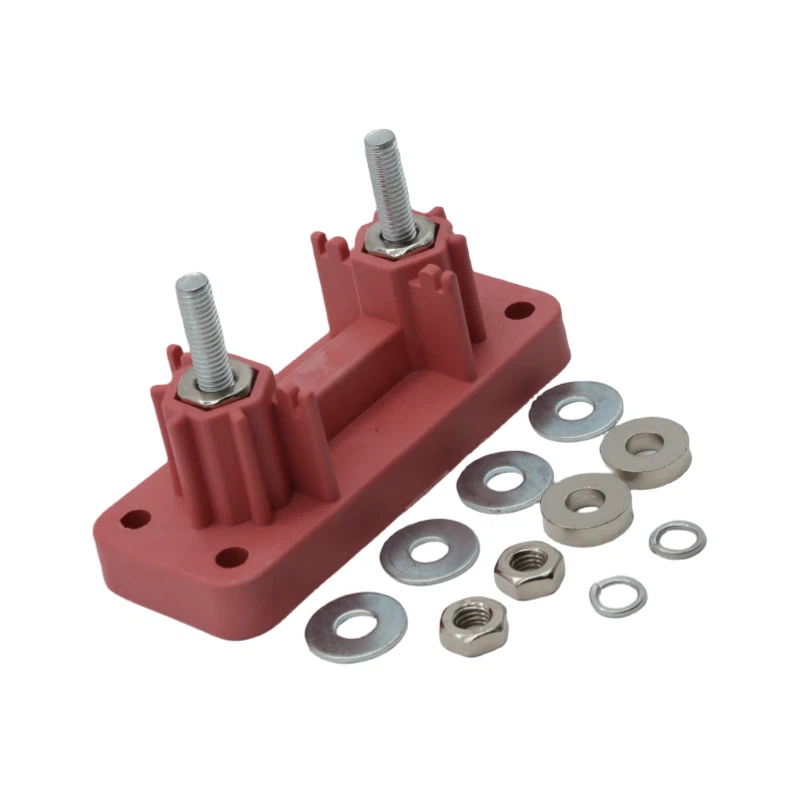

ANL Fuse Kit: Includes fuse block and cover.
Available Posts: 5/16" and 3/8".
ANL Fuses: Sold separately.
Max Amperage: 500 amps at 12 VDC.
Maximum Voltage: 32 VDC.
Available Colors: Red and Black.
Included Cover: Protects conductive areas from accidental shorts, complying with ABYC/USCG safety requirements.
Base Material: Glass-filled nylon.
Connection Post Material: Stainless steel.
Lock Washer Material: Stainless steel.
Flat Washer Material: Stainless steel.
Conductive Spacer Material: Nickel-plated copper.
500Amp 32VDC Car Mini ANL Fuse Holder Pink Mini ANL Fuse Holder Block Without Fuse With Cover For Car Marine Boat RV Truck
Features of ANL fuse Block
Durable: The base is made of durable, heavy-duty, nylon based, glass filled plastic, and our bracket can even withstand high temperature resistance through fuses, ensuring that it will not melt or explode like other brands do.
Scope of application: On the wiring of any electrical appliance such as automobiles, off-road vehicles, buses, RVs, yachts, ships, etc.

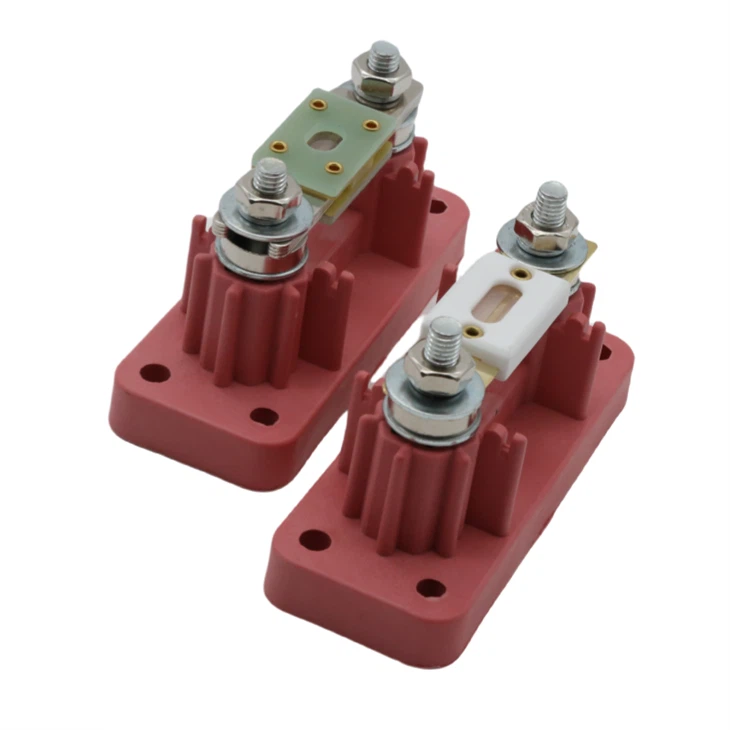

500A ANL Fuse Holder 12V - 32V with Cover M8 Stud for Car Marine Boat Waterproof
Function: To prevent excessive current, protect electrical appliances, and prevent safety hazards caused by overheating of the circuit
Application: Fuse boxes are widely used in automotive and marine audio and video systems, inverters, and audio amplifiers to protect your controllers
Weight: 425g
Material: plastic+zinc alloy
Surface treatment: gold and nickel plating
Voltage: 500A
parameter
| Product name: | 500AMP ANL Bolt On Fuse Holder | Type: | Bolt-on Fuse Box |
|
Rated voltage: |
32V DC | Rated current: | 40-500A |
| Mounting Hole: | 5MM | Material: | High Quality Alloy Material |
| Thread: | M8 | Packing: | PE Bag |

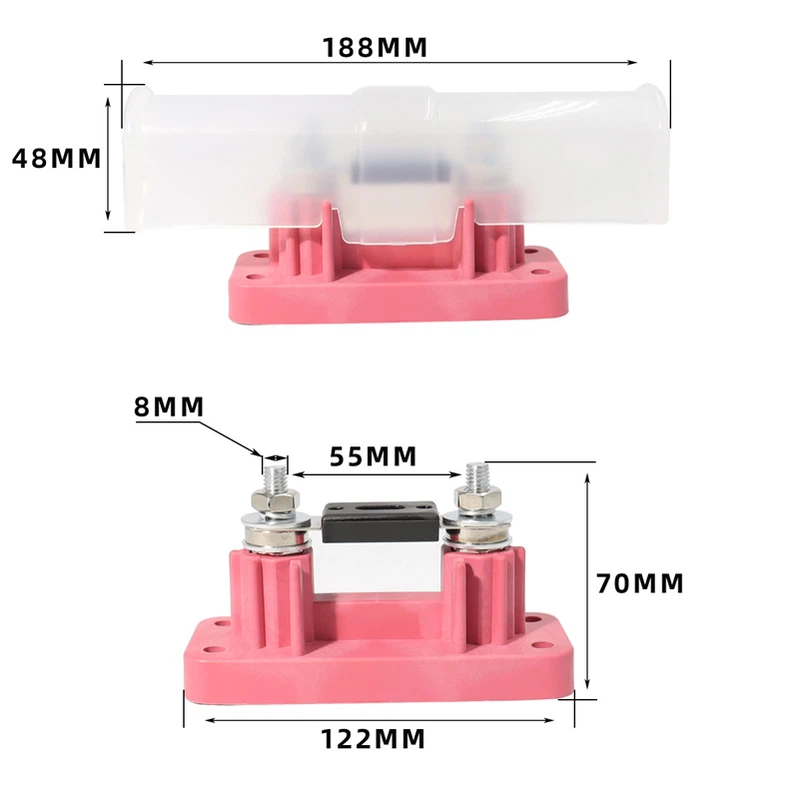

Dimension & Construction
Installation
|
|
|
|
