product Desc.

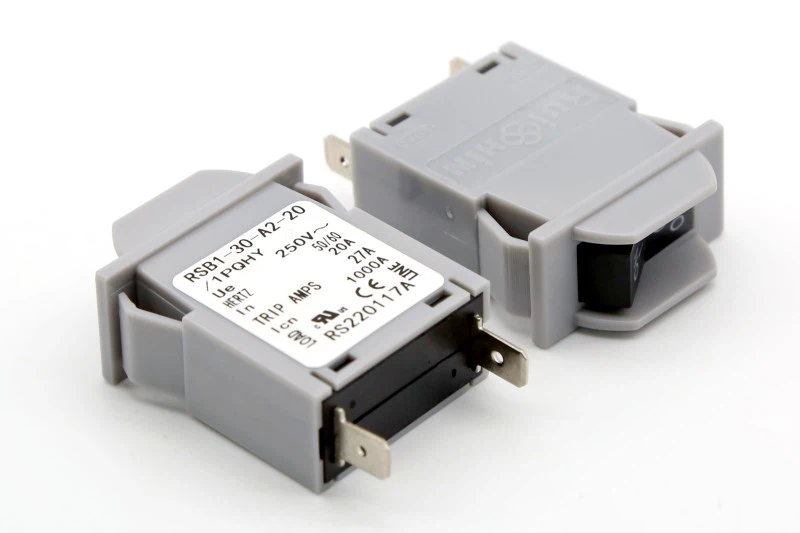

Toggle Single Pole Hydraulic Magnetic Circuit breakers are commonly used in various electrical applications to protect circuits and equipment from damage due to excessive current. The combination of hydraulic and magnetic technologies allows for both thermal and magnetic trip elements, providing a reliable and versatile means of circuit protection.
Features of Hydraulic Magnetic Circuit Breaker
1. Toggle Operation: Equipped with a toggle switch for manual operation, allowing users to easily switch the circuit breaker between the ON and OFF positions.
2. Single Pole: Designed to interrupt the current flow in a single circuit, making it suitable for applications where protection for a single conductor is needed.
3. Thermal and Magnetic Trip Elements: This MCB circuit breaker utilizes both thermal and magnetic trip elements for comprehensive protection. Thermal trip responds to prolonged overcurrent conditions. Magnetic trip responds quickly to high levels of current associated with short circuits.
4. Hydraulic Magnetic Technology: The circuit breaker integrates both hydraulic and magnetic technologies for circuit protection. Hydraulic Mechanism responds to the rate of flow of electric current, providing a time-delayed response to overcurrent conditions. Magnetic Mechanism responds to the strength of the magnetic field generated by current flow, offering a fast and precise response to short circuits.
5. Compact Design: the circuit breaker is designed in a compact form factor, making it space-efficient and suitable for installations with limited space.
6. Compliance with Standards: Our circuit breaker is manufactured in compliance with relevant industry standards and regulations to ensure safety and performance.
products Specification
| Product name: | Toggle Single Pole Hydraulic Magnetic Circuit breaker | ||
|
Rated Voltage: |
80V DC | Rated Current: | 25A |
| Pole: | 1 pole | Reset Type: | On Off Manual Reset |
| Item no.: | RSB1-30 | Weight: | 0.1 kg |
products Dimension
Application
A Toggle Single Pole Hydraulic Magnetic Circuit Breaker finds applications in various electrical systems and equipment where reliable circuit protection is essential. Here are some common applications:
1. Electronic Equipment: Used in electronic devices and equipment to protect against overcurrent conditions that could otherwise damage sensitive components.
2. Telecommunications Equipment: Employed in telecommunications systems to safeguard power distribution and prevent damage to communication equipment.
3. Power Strips and Surge Protectors: Integrated into power strips and surge protectors to provide individual circuit protection for connected devices.
4. Power Distribution Units (PDUs): Installed in PDUs to protect specific circuits within data centers and server rooms.
5. Industrial Control Panels: Utilized in control panels to ensure the protection of circuits controlling industrial machinery and processes.
6. Marine Applications: Found in marine electrical systems to protect circuits on boats and ships from overcurrent and short-circuit conditions.
7. Aircraft and Avionics Systems: Used in aviation applications to provide circuit protection for aircraft electrical systems and avionics equipment.
8. Power Supplies: Incorporated into power supply units to protect against overloads and short circuits in electronic and electrical systems.
More Options
Factory Introduction
Our factory, Dongguan Senreach, covers an area of 4,000 square meters and has a monthly production capacity of 50 million pieces. We specialize in the design, development, manufacturing, and distribution of advanced solutions for safeguarding against over-current, over-temperature, and over-voltage situations. Our extensive range of products finds broad applications in various industries such as consumer electronics, automotive, marine, telecommunications, power supplies, power tools, renewable energy, and more. Our comprehensive product portfolio includes a variety of offerings such as automotive fuses, fuse holders, current fuses, current fuse holders, temperature fuses, SMD fuses, resettable fuses, circuit breakers, thermal switches, and more.
With a commitment to meeting international standards, our products carry certifications such as UL, UR, CSA, BSI, CUL, VDE, TUV, PSE, CE, CCC, and ROHS, ensuring compliance with strict quality and safety requirements.
Our commitment to excellence and customer satisfaction sets us apart. We understand the critical role these electrical components play in ensuring the safe and efficient operation of various systems and equipment. That's why we adhere to rigorous quality standards and utilize advanced manufacturing processes to produce products of exceptional reliability and durability.
Testing Machine
Testing Machine
Workshop
Workshop
Workshop
Workshop
Warehouse
Testing Machine
why choose us
Price advantage
Our factory prides itself on offering a significant price advantage to its customers. Through efficient manufacturing processes, economies of scale, and cost-effective sourcing of materials, we can provide competitive pricing for our products.
quality assurance
Quality is at the core of our factory's operations. We prioritize the production of goods that meet or exceed industry standards and customer expectations.
factory Wholesale
By maintaining a well-stocked inventory, we can promptly fulfill orders, even for large quantities. This approach reduces lead times and minimizes delays for customers, making it easy for retailers and distributors to source products efficiently.
excellent service
Our factory is dedicated to providing a comprehensive and hassle-free experience to our customers. By consolidating these services under one roof, we streamline the entire supply chain, making it convenient and efficient for customers to collaborate with our factory.
